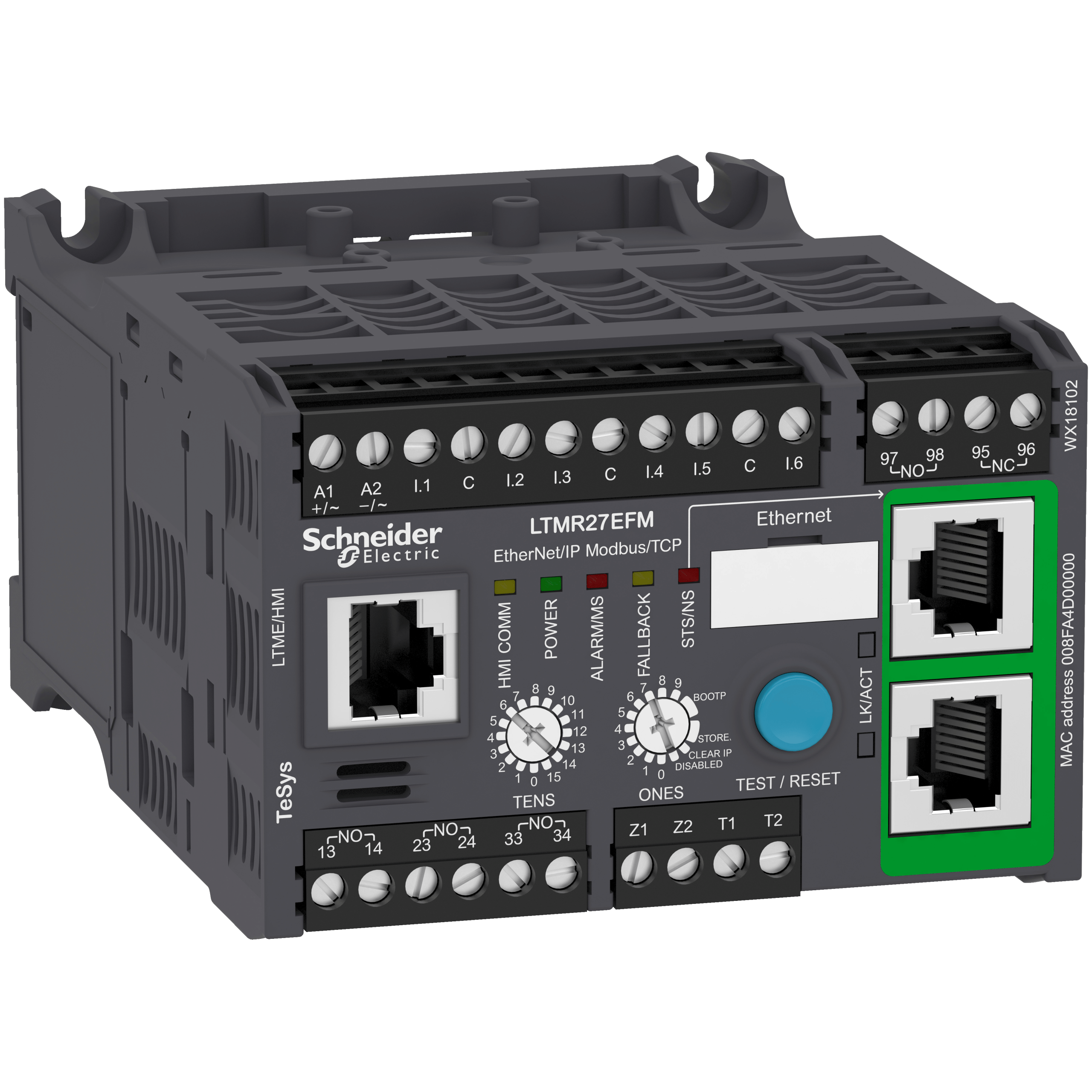

LTMR27EFM – Motor Management, TeSys T, motor controller, Ethernet/IP, Modbus/TCP, 6 inputs, 3 outputs, 1.35 to 27A, 100 to 240 VAC | Schneider Electric

LTMR27EFM — Motor Management, TeSys T, motor controller, Ethernet/IP, Modbus/TCP, 6 inputs, 3 outputs, 1.35 to 27A, 100 to 240 VAC, an electronic motor protection by Schneider Electric. Listed under Electronic Motor Protection on the Schneider Electric catalogue at RMS-SE.Africa.

About LTMR27EFM

TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This controller is the central component in the motor management system. The module manages the basic functions of the motor management system. It manages the measurement of 3 phase current via integral current transformers from 0.4 to 100 A or up to 810 A by external current transformers. It also measures ground current with internal or external ground sensors, motor temperature and the inputs and outputs for the various motor control modes, detected fault management and other functions. Ethernet/IP and Modbus/TCP protocol is used by this controller. Ethernet TCP/IP communication is used. This module has 6 discrete logic inputs, 3 relay logic outputs and a relay output for detected fault signaling overload relay. The current range of this controller is 1.35 to 27 amperes. 120 to 240 VAC is used to power this controller.

LTMR27EFM key specifications

Key specifications: rated current 27 A; rated voltage 240 V AC.

Ordering information for LTMR27EFM

• Order code: LTMR27EFM
• Manufacturer: Schneider Electric (formerly Telemecanique)
• Range: TeSys T
• GTIN / EAN: 3389119404891
• Supplied: each
• Weight: 0.53 kg
• ETIM class: EC002572
• Datasheet: manufacturer datasheet for LTMR27EFM

About the TeSys T range

TeSys T is a Schneider Electric range with 28 references listed on RMS-SE.Africa, from 8 A to 100 A. It spans Electronic Motor Protection, Soft Starters.

LTMR27EFM — frequently asked questions

What is the rated current of LTMR27EFM?

LTMR27EFM is rated 27 A.

Where is the datasheet for LTMR27EFM?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.

Is LTMR27EFM a genuine Schneider Electric product?

Yes. LTMR27EFM is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
