| Product Series | Filter products by AS-Interface |
|---|
Schneider ElectricElectronic Motor Protection
LU9MRC – Pre-wired coil connection to communication module – for motor starter TeSys U | Schneider Electric
Order code
List R687.00 Your price R467.16
Per unit · volume pricing available on request
excl. VAT R537.23 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

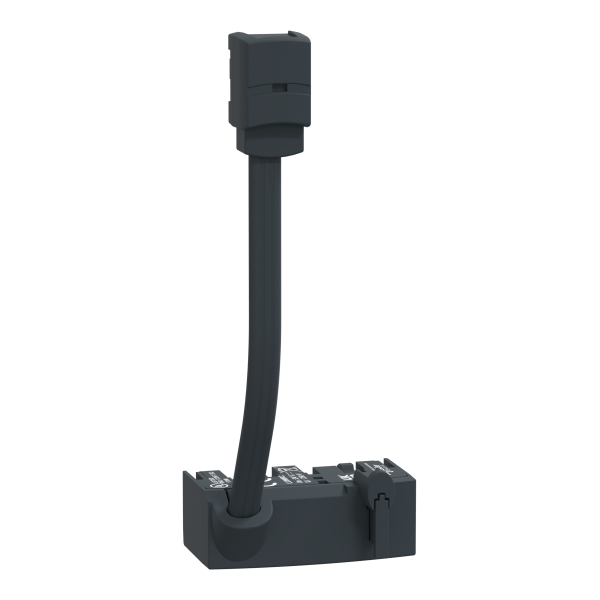

Pre-wired coil connection to communication module – for motor starter TeSys U — Schneider Electric order code LU9MRC.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LU9MRC — Pre-wired coil connection to communication module – for motor starter TeSys U, an electronic motor protection from the Schneider Electric AS-Interface range. Listed under Electronic Motor Protection on the Schneider Electric catalogue at RMS-SE.Africa.
About LU9MRC
TeSys U control terminal block to be inserted in a reversing power base LU2B12*, LU2B32*, LU2B38* for the centralized control of the starter controller. To be used for ON/OFF control of reversing motor applications with Modbus, Ethernet, AS-Interface remote control. It provides screw clamp terminals to connect the internal auxiliary contacts 1NO+1NC, and a pre-wired control cable to be connected to a communication module LUFC00, LULC031, LULC033, ASILUFC5, ASILUFC51 (to be ordered separately). It is powered by the associated communication module. Green Premium compliant (RoHS/REACh).
Ordering information for LU9MRC
- Order code:
LU9MRC - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: AS-Interface
- GTIN / EAN: 3389110367577
- Supplied: each
- Weight: 0.03 kg
- ETIM class: EC002498
- Datasheet: manufacturer datasheet for LU9MRC
About the AS-Interface range
AS-Interface is a Schneider Electric range with 3 references listed on RMS-SE.Africa. It spans Electronic Motor Protection, Control Stations & Pendants.
LU9MRC — frequently asked questions
Where is the datasheet for LU9MRC?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LU9MRC a genuine Schneider Electric product?
Yes. LU9MRC is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | LU9MRC – pre-wired coil connection to communication module – for motor starter TeSys U Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by AS-Interface |
| GTIN / EAN | 3389110367577 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC002498 |
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | LU9MRC |
| Iternational GTIN | 3389110367577 |
| Mount Type | Filter products by Plug-in |
