Schneider ElectricFuse Combination Switches
GS2MMB3 – TeSys GS – switch-disconnector-fuse – 3 P – 200A – BS B1, B2 Schneider Electric
Order code
R10 736.67
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
TeSys GS – switch-disconnector-fuse – 3 P – 200A – BS B1, B2 — Schneider Electric order code GS2MMB3. Rated current 200 A; 3P; breaking capacity 100 kA; rated voltage 750 V.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
GS2MMB3 — TeSys GS – switch-disconnector-fuse – 3 P – 200A – BS B1, B2 by Schneider Electric.
TeSys GS fuse switch-disconnector, 3 poles (3P), 200A/750V, to be used with type BS fuse links size B1-B2 up to 200A, for motor applications up to 100kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP43 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).
Key specifications: rated current 200 A; 3P; breaking capacity 100 kA; rated voltage 750 V.
Ordering information
- Order code:
GS2MMB3 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys GS
- GTIN / EAN: 3389119411196
- Supplied: each
- Weight: 3.2 kg
- ETIM class: EC001040
- Datasheet: manufacturer datasheet for GS2MMB3
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by GS2MMB3 – TeSys GS – switch-disconnector-fuse – 3 P – 200A – BS B1, B2 Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys GS |
| GTIN / EAN | Filter products by 3389119411196 |
| Range | Filter products by TeSys GS |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001040 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 200 A |
| Rated voltage (Ue) | Filter products by 750 V |
| Rated operational voltage | Filter products by 750 V |
| Operating Voltage | Filter products by 750V |
| Max Break Capacity | Filter products by 100 kA |
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by GS2MMB3 |
| Iternational GTIN | Filter products by 3389119411196 |
| Mount Type | Filter products by Plug-in |
Higher-rated in this range
Same series, a larger rating — where the duty is heavier than this part covers.
GS2N3GS2N3 – Fuse Switch Disconnector – TeSys GS – 3 P – 250A – DIN 1 Schneider Electric Original price was: R11 126.00.R7 565.68Current price is: R7 565.68.View product
GS1ND3TeSys GS – switch-disconnector fuse – 3 P – 250 A – DIN 1 Schneider ElectricR16 049.43View product- GS2QQ3TeSys GS – switch-disconnector-fuse – 3 P – 400A – DIN 2 Schneider ElectricR21 099.39View product
GS2AHT530External rotary handle, TeSys GS, black handle, front mounting, 3 positions Test-I-O, IP65, for GS 100-400A IEC Schneider Electric Original price was: R1 954.00.R1 328.72Current price is: R1 328.72.View product
GS2AH535External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, IP55, for GS 100-400A IEC Schneider Electric Original price was: R468.00.R318.24Current price is: R318.24.View product
GS2AH530GS2AH530 – External rotary handle, TeSys GS – black external frontal rotary handle, front mounting, 2 positions I-O, IP65, for GS 100-400A IEC. Schneider Electric Original price was: R1 335.00.R907.80Current price is: R907.80.View product
More in the TeSys GS range
Same series, same mounting and the same documentation set.
GS2V3TeSys GS – switch-disconnector-fuse – 3 P – 1250A – DIN 4 Schneider Electric Original price was: R36 981.00.R25 147.08Current price is: R25 147.08.View product- GS2S3TeSys GS – switch-disconnector-fuse – 3 P – 630A – DIN 3 Schneider Electric Original price was: R17 607.00.R11 972.76Current price is: R11 972.76.View product
- GS2LL3TeSys GS – switch-disconnector-fuse – 3 P – 160A – DIN 00 Schneider Electric Original price was: R6 302.00.R4 285.36Current price is: R4 285.36.View product
- GS2L3TeSys GS – switch-disconnector-fuse – 3 P – 160A – DIN 0 Schneider Electric Original price was: R5 516.00.R3 750.88Current price is: R3 750.88.View product
- GS2KK3TeSys GS – switch-disconnector-fuse – 3 P – 125A – DIN 00 Schneider ElectricR6 905.54View product
GS2J3TeSys GS – switch-disconnector-fuse – 3 P – 100A – NFC 22 x 58 mm Schneider ElectricR6 319.96View product- GS2G3TeSys GS – switch-disconnector-fuse – 3 P – 63A – DIN 00C Original price was: R3 843.00.R2 613.24Current price is: R2 613.24.View product
GS2F3TeSys GS – switch-disconnector-fuse – 3 P – 50A – NFC 14 x 51 mm Schneider ElectricR4 404.40View product
Similar items

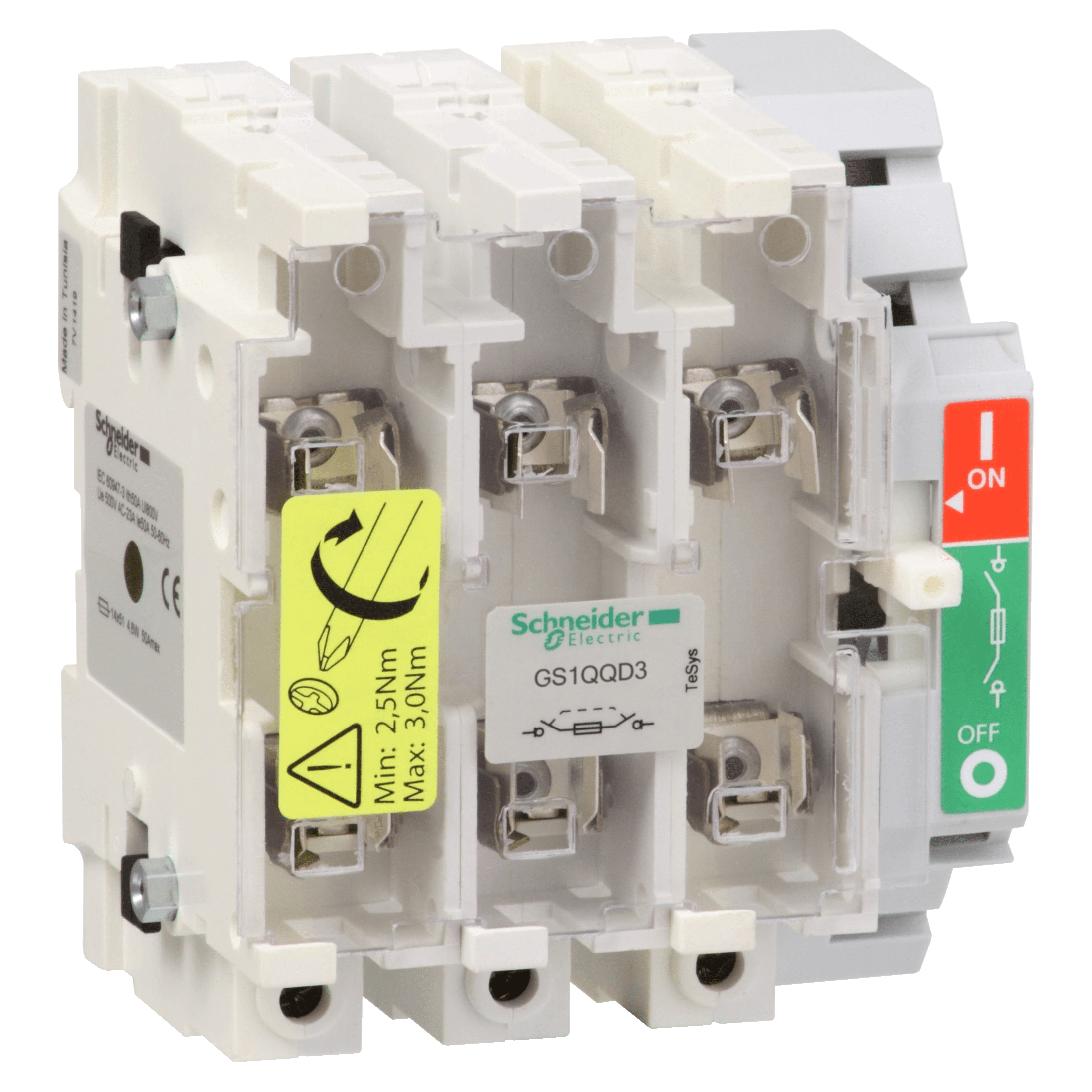

GS1QQD3TeSys GS – switch-disconnector fuse – 3 P – 400 A DIN 2 Schneider ElectricR9 205.63View product
