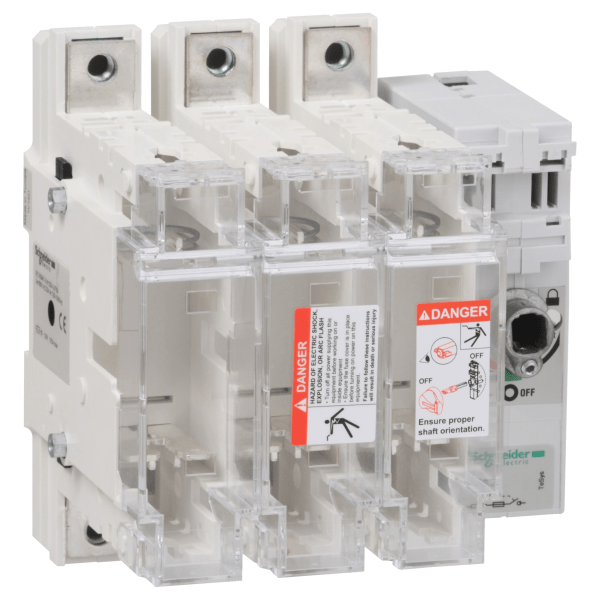

GS2KK3 – TeSys GS – switch-disconnector-fuse – 3 P – 125A – DIN 00 Schneider Electric

GS2KK3 – TeSys GS – switch-disconnector-fuse – 3 P – 125A – DIN 00 Schneider Electric TeSys GS fuse switch-disconnector, 3 poles (3P), 125A/750V, to be used with DIN blade fuse links size 00 up to 125A, for motor applications up to 63kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP33 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). Type aM and gG size 00 blade fuse links without strickers DF2GA, DF2GN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh). TeSys GS – switch-disconnector-fuse – 3 P – 125A – DIN 00 GS2KK3 – TeSys GS

GS2KK3 – TeSys GS – switch-disconnector-fuse – 3 P – 125A – DIN 00 Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.

This product forms part of the TeSys range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.

Technical Specifications

• Brand: Schneider Electric
• Series: TeSys
• Amperage: 125A
• Voltage: 750V
• Poles: 3 P
• Breaking Capacity: 100kA

Key Features

• Part of the TeSys range
• Rated at 125A
• Suitable for 750V applications
• 3 P configuration
• 100kA breaking capacity

Applications

• Industrial automation
• Commercial electrical installations
• Control and protection systems
• Infrastructure and maintenance projects
