Schneider ElectricPressure & Vacuum Switches
FSG2 – Pressure sensors XM, pressure switch FSG 4.6 bar, adjustable scale 2 thresholds, 2NC | Telemecanique Sensors
Order code
List R531.20 Your price R361.22
Per unit · volume pricing available on request
excl. VAT R415.40 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Pressure sensors XM, pressure switch FSG 4.6 bar, adjustable scale 2 thresholds, 2NC — Telemecanique Sensors order code FSG2. IP20.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
FSG2 — Pressure sensors XM, pressure switch FSG 4.6 bar, adjustable scale 2 thresholds, 2NC from the Telemecanique Sensors OsiSense XM range. Listed under Pressure & Vacuum Switches on the Telemecanique Sensors catalogue at RMS-SE.Africa.
About FSG2
This product is part of the XM range, an offer of electromechanical pressure sensors for pressure control. This electromechanical pressure switch features a G1/4 (female) connector for fluid connection and diaphragm pressure actuator. It has an adjustable scale for internal setting and a maximum pressure rating of 4.6bar. This pressure switch is suitable for controlling fluids such as fresh water (0°C to 70°C) and sea water (0°C to 70°C). It is furnished with screw clamp terminals for electrical connection and 2 cable entries with grommet and 2 NC snap action contacts. It offers a mechanical durability of about 1 million operating cycles. It is an IP20 rated product. The enclosure is made of PS. Its dimensions are 72mm (width) x 102mm (depth) x 96mm (height). It weighs 0.34kg. It is suitable for regulation between 2 thresholds. For controlling pressure of air and water in residential and industrial applications. It meets CE and EN/IEC 60730 standards. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. The line of XM Pressure Sensors and Switches (formerly known as OsiSense) combine the latest pressure sensing technology with adaptability to virtually any configuration.
FSG2 key specifications
Key specifications: IP20.
Ordering information for FSG2
- Order code:
FSG2 - Manufacturer: Telemecanique Sensors (formerly Square D)
- Range: OsiSense XM
- GTIN / EAN: 3389110524222
- Supplied: each
- Weight: 0.368 kg
- ETIM class: EC000243
- Datasheet: manufacturer datasheet for FSG2
About the OsiSense XM range
OsiSense XM is a Telemecanique Sensors range with 140 references listed on RMS-SE.Africa, from 3 A to 4 A.
FSG2 — frequently asked questions
Where is the datasheet for FSG2?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Telemecanique Sensors publishes them.
Is FSG2 a genuine Telemecanique Sensors product?
Yes. FSG2 is supplied through the manufacturer’s authorised channel with the standard Telemecanique Sensors warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | FSG2 – Pressure sensors XM, pressure switch FSG 4.6 bar, adjustable scale 2 thresholds, 2NC Telemecanique Sensors |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by OsiSense XM |
| GTIN / EAN | 3389110524222 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000243 |
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| SKU/Code/Partnumber | FSG2 |
|---|---|
| Iternational GTIN | 3389110524222 |
More in the OsiSense XM range
8 itemsSame series, same mounting and the same documentation set.
More in the OsiSense XM range
8 items
ZMLPA2P0SHElectronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 2 PNP, hysteresis, M12List R2 645.68 Your price R1 799.06View product
ZMLPA1P2SHElectronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 4…20 mA, PNP, hysteresis, M12List R2 645.68 Your price R1 799.06View product
ZMLPA1P2SWElectronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 4…20 mA, PNP, window, M12List R2 645.68 Your price R1 799.06View product- ZMLPA2N0SHElectronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 2 NPN, hysteresis, M12List R2 603.71 Your price R1 770.52View product
- ZMLPA1N2SWElectronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 4…20 mA, NPN, window, M12List R2 603.71 Your price R1 770.52View product
- ZMLPA1N2SHElectronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 4…20 mA, NPN, hysteresis, M12List R2 603.71 Your price R1 770.52View product
XMLR400M1P25Electronic pressure sensors, Pressure sensors XM, XMLR 400 bar, G 1/4, 24 VDC, 4…20 mA, PNP, M12List R11 086.67 Your price R7 538.94View product- XMLR600M1P25Electronic pressure sensors, Pressure sensors XM, XMLR 600 bar, G 1/4, 24 VDC, 4…20 mA, PNP, M12List R12 700.25 Your price R8 636.17View product
Similar items
8 items
Similar items
8 items
XZCPV1141L2Pre wired connectors XZ, straight female, M12, 4 pins, cable PVC 2 mList R360.54 Your price R245.17View product
XZCR1511064D2Jumper cable XZ, male straight M12 5 pin, female straight M12 5 pin, PUR 2 mList R886.76 Your price R603.00View product

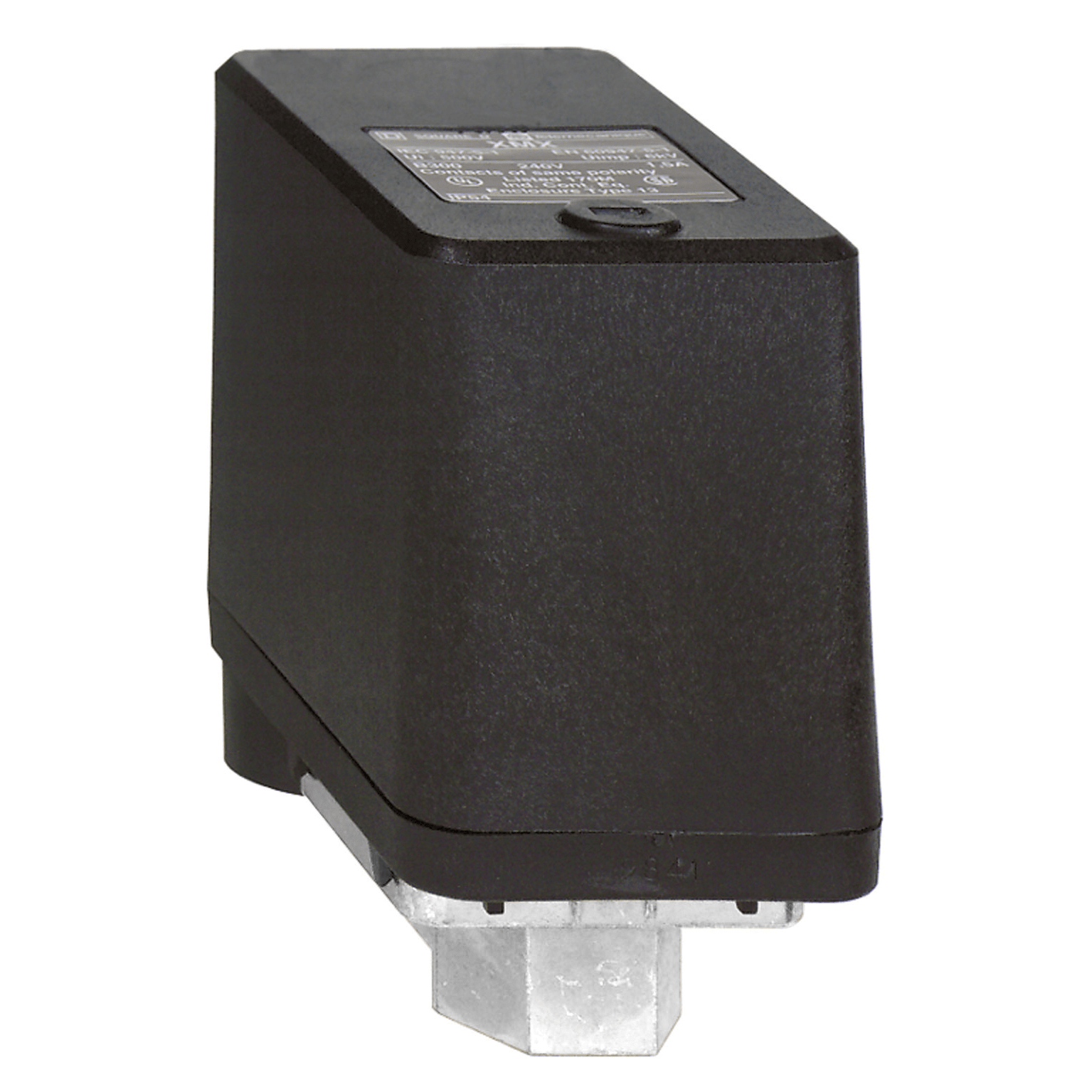

XMXA12L2135Pressure sensors XM, pressure switch XMX 12 bar, adjustable scale 2 thresholds, 1 C/OList R1 568.37 Your price R1 066.49View product
