Key specifications

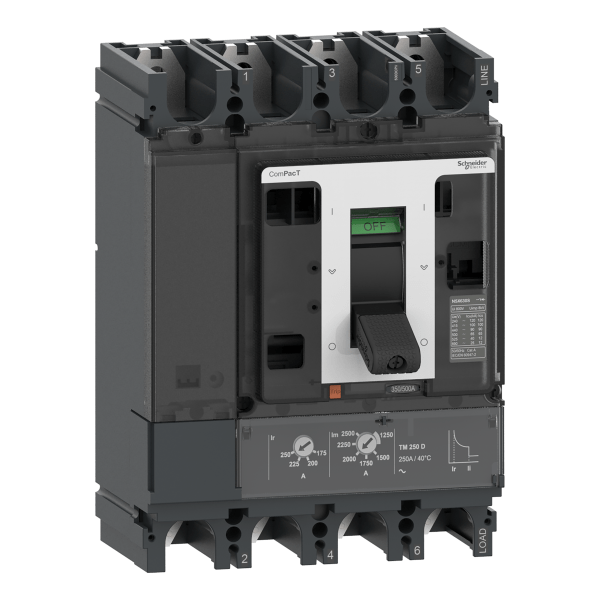

C63F4TM500D1 – circuit breaker ComPacT NSX500 DC PV, 500 A, 1000 V, TM-D trip unit, 4 poles Schneider Electric
Your price
Excluding VAT · per unit · volume pricing available on request
Overview
C63F4TM500D1 – circuit breaker ComPacT NSX500 DC PV, 500 A, 1000 V, TM-D trip unit, 4 poles Schneider Electric ComPacT NSX 500F DC PV is a 4 poles circuit breaker designed to optimize space and breaking capacity. It’s an optimal choice for photovoltaic applications. The breaking capacity (Icu) is 36kA at 1000VDC with 4 poles series. The rated current is 500A and the operational voltage is 1000VDC. The dimensions are 255mm x 285mm x 110mm. It is compliant with international standard EN/IEC 60947. circuit breaker ComPacT NSX500 DC PV, 500 A, 1000 V, TM-D trip unit, 4 poles C63F4TM500D1 – ComPacT for DC (2021)
C63F4TM500D1 – circuit breaker ComPacT NSX500 DC PV, 500 A, 1000 V, TM-D trip unit, 4 poles Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.
This product forms part of the ComPacT range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.
Technical Specifications
- Brand: Schneider Electric
- Series: ComPacT
- Amperage: 500 A
- Voltage: 1000 V
- Breaking Capacity: 36kA
Key Features
- Part of the ComPacT range
- Rated at 500 A
- Suitable for 1000 V applications
- 36kA breaking capacity
Applications
- Industrial automation
- Commercial electrical installations
- Control and protection systems
- Infrastructure and maintenance projects
Browse Related Categories
Timers & Control Relays | Plug – in Relays
Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.
Technical specifications
Data supplied by Schneider Electric. Please confirm against the official datasheet before ordering.
Ordering & identification
Electrical ratings & operation
Other specifications
Ordering & delivery
How to order
Contact us for bulk pricing, lead times and ordering codes. Add the item to your cart to order online, or request a quotation if you need a formal quote document, project pricing or a written lead time.
Stock & lead time
Some items are held off-site rather than in our Johannesburg warehouse. Where that is the case, availability is confirmed once a quote is requested or an order is placed, and the lead time is confirmed in writing on your quotation.
Delivery
Nationwide delivery across South Africa, export delivery to the rest of Africa on request, and collection available from our Johannesburg branch.
