Schneider ElectricSoft Starters
ATS480M10Y – Altivar Soft Starter ATS480, 1000 A, 208…690V AC, control supply 110…230V AC | Schneider Electric
Order code
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
List R254 507.66 Your price R173 065.21
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Altivar Soft Starter ATS480, 1000 A, 208…690V AC, control supply 110…230V AC — Schneider Electric order code ATS480M10Y.
Download datasheet (opens in a new tab)
Accessories & add-ons 1
- TeSys D control relay – 5 NO –CAD50FE7List R716.00 Your price R486.88Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
ATS480M10Y — Altivar Soft Starter ATS480, 1000 A, 208…690V AC, control supply 110…230V AC by Schneider Electric. Listed under Soft Starters on the Schneider Electric catalogue at RMS-SE.Africa.
About ATS480M10Y

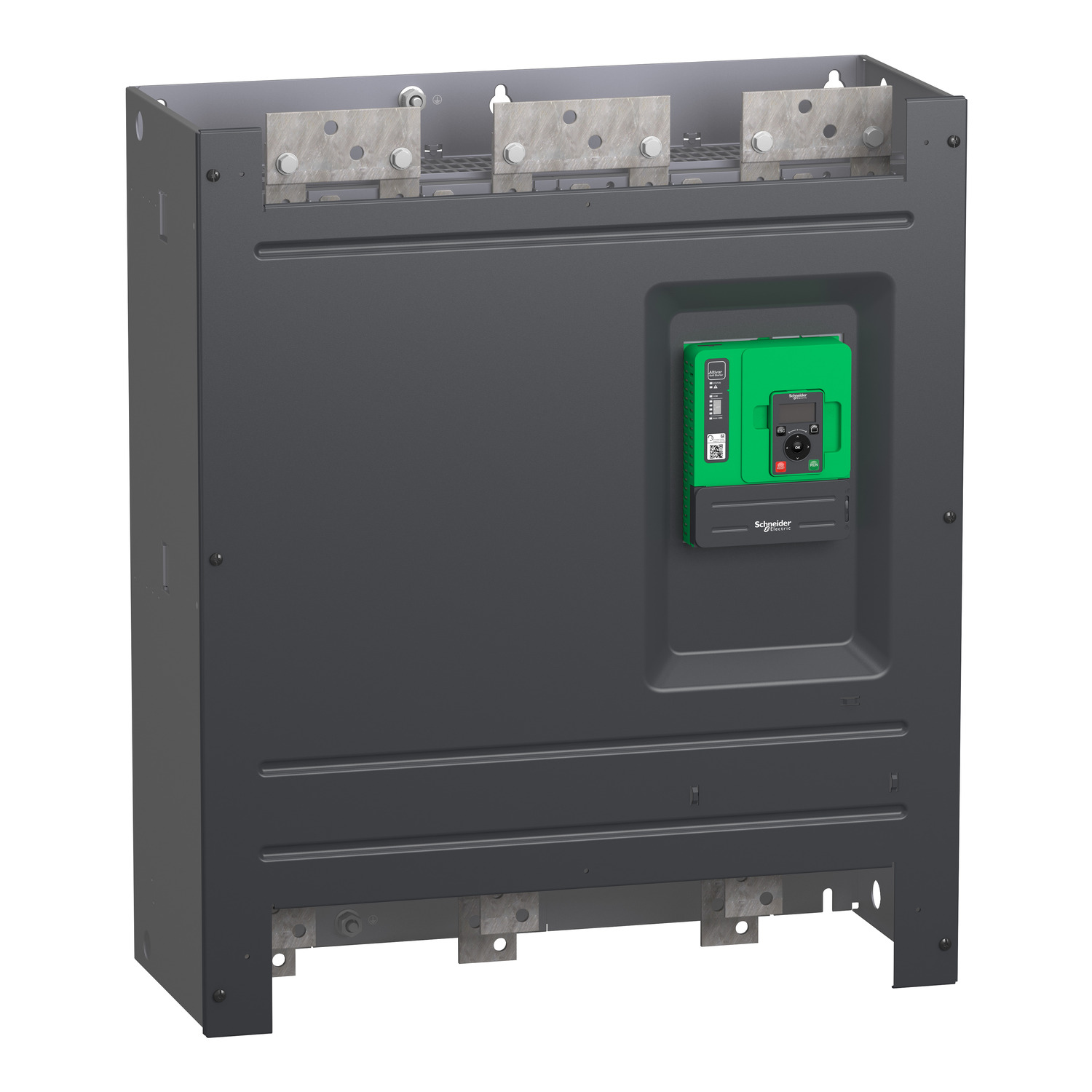

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 1000A in normal duty, it supplies motor from 250kW to 900kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 770mm (width) x 329mm (depth) x 890mm (height) and it weighs 115kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.
Ordering information for ATS480M10Y
- Order code:
ATS480M10Y - Manufacturer: Schneider Electric
- Range: Altivar Soft Starter ATS 480
- GTIN / EAN: 3606481089182
- ETIM class: EC000640
- Datasheet: manufacturer datasheet for ATS480M10Y
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606481089182 |
| Range | Filter products by Altivar Soft Starter ATS 480 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000640 |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by ATS480M10Y |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
