Schneider ElectricMiniature Circuit Breakers (MCB's)
A9N26929 – Acti9 – Auxiliary contact OC plus 1 SD and OF ac dc | Schneider Electric
Order code
List R773.58 Your price R526.03
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Acti9 – Auxiliary contact OC plus 1 SD and OF ac dc — Schneider Electric order code A9N26929.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9N26929 — Acti9 – Auxiliary contact OC plus 1 SD and OF ac dc by Schneider Electric. Listed under Miniature Circuit Breakers (MCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About A9N26929

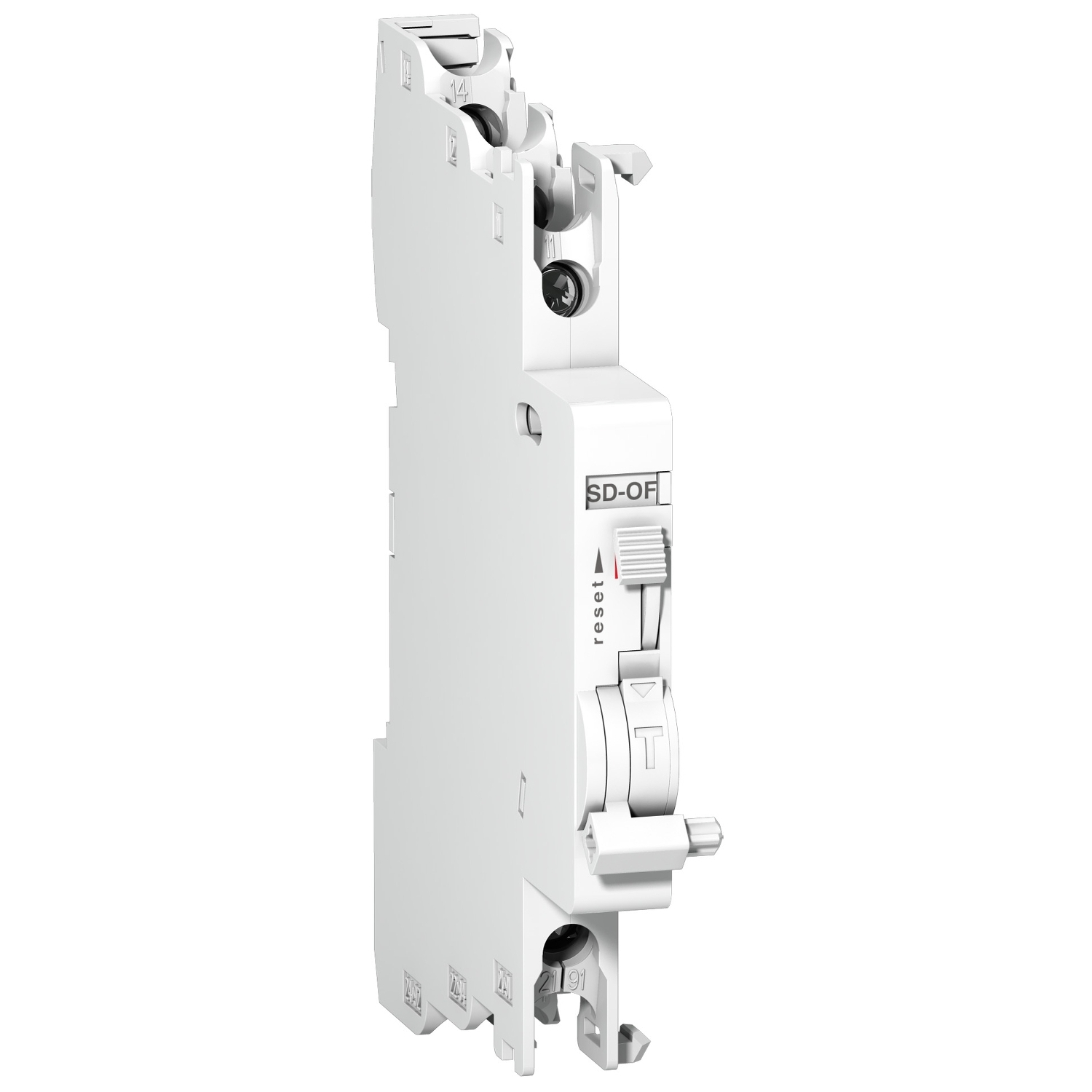

This Acti9 OF+SD/OF electric auxiliary is a double open/closed or fault indicator contact. It is dedicated to Acti9 C120, C60H-DC, DPN N Vigi. It comes with 1 changeover contact indicating the open or closed position (OF). It provides a remote position open/close and/or fault tripping indication of the associated device. It is a two-in-one product. The choice of OF+SD or OF+OF contact is made via the selector switch on front face. The width in 9mm pitches is 1. The Ue rated operational voltage is 24VAC to 415VAC or 24VDC to 130VDC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. There is a mechanical state indicator and a test function button on the front face. The operating temperature is -25C to + 50C. The storage temperature is -40C to + 85C. This product complies with IEC/EN 60947-5-1 standard and EN 62019-2 standard only for C120.
Ordering information for A9N26929
- Order code:
A9N26929 - Manufacturer: Schneider Electric
- Range: Clario / Librio / Prodis : iDPN, C40, DT40
- GTIN / EAN: 3606480382949
- ETIM class: EC001286
- Datasheet: manufacturer datasheet for A9N26929
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480382949 |
| Range | Filter products by Clario / Librio / Prodis : iDPN, C40, DT40 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001286 |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9N26929 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
