Schneider ElectricMiniature Circuit Breakers (MCB's)
A9N18598 – Vigi C120 – earth leakage add-on block – 4P – 300 mA – class A si | Schneider Electric
Order code
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
List R4 235.36 Your price R2 880.04
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Vigi C120 – earth leakage add-on block – 4P – 300 mA – class A si — Schneider Electric order code A9N18598.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9N18598 — Vigi C120 – earth leakage add-on block – 4P – 300 mA – class A si by Schneider Electric. Listed under Miniature Circuit Breakers (MCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About A9N18598

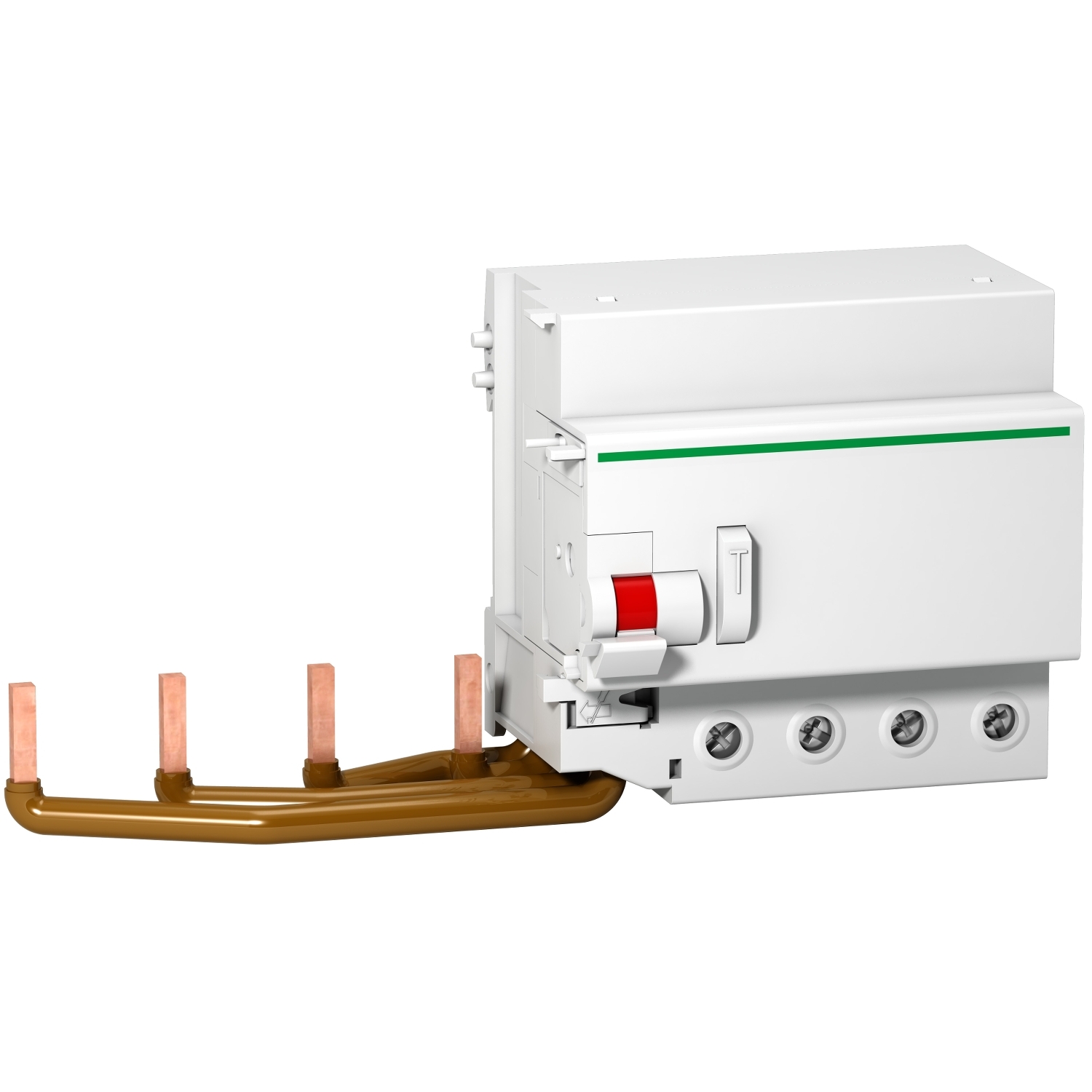

This Acti9 Vigi C120 is a modular add-on residual current devices. It has 4P with 4 protected poles, rated current is 125A and operating voltage is 230VAC to 415VAC. The earth leakage protection class is A-SI type with a sensitivity of 300mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. The A-SI type provides increased immunity from electrical interference and polluted or corrosive environments. This product is compliant with EN 61009 standard. Electrical endurance goes up to 20000 cycles. The Ue rated operational voltage is from 230VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on 35 mm symmetrical DIN rail. The width in 9mm pitches is 10. The product color is white (RAL9003). The dimensions are (W) 198mm x (H) 95mm x (D) 73mm. The weight is 0.58kg. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -25C to 60C. The storage temperature is -40C to 60C.
A9N18598 key specifications
number of poles 4P.
Ordering information for A9N18598
- Order code:
A9N18598 - Manufacturer: Schneider Electric
- Range: Acti 9 C120
- GTIN / EAN: 3606480376726
- ETIM class: EC002297
- Datasheet: manufacturer datasheet for A9N18598
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480376726 |
| Range | Filter products by Acti 9 C120 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC002297 |
Electrical ratings
| Number of poles | Filter products by 4P |
|---|
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9N18598 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
