A9L16292 – IQuick PRD40r modular surge arrester – 1 pole + N – 350V – with remote transfer | Schneider Electric
Order code
Select a variant in this series
- 1P
- 3P
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
List R4 967.76 Your price R3 378.08
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
IQuick PRD40r modular surge arrester – 1 pole + N – 350V – with remote transfer — Schneider Electric order code A9L16292.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9L16292 — IQuick PRD40r modular surge arrester – 1 pole + N – 350V – with remote transfer by Schneider Electric. Listed under Surge Protection Devices on the Schneider Electric catalogue at RMS-SE.Africa.
About A9L16292
This Acti9 iQuick PRD40r surge arrester protects 1P+N residential and larger buildings installations against indirect transient overvoltages. This Type 2 device autoprotected by an integrated circuit-breaker is recommended for high risk level in incoming panel board. It offers remote reporting of the “cartridge must be changed” message. This prewired surge arrester allows quick replacement of withdrawable cartridges when they are damaged. It incorporates its end of life safety disconnector. The Isc integrated breaking capacity is 20kA. This Acti9 iQuick PRD40r is compatible with TT and TN-S earthing system. The Imax maximum discharge current is 40kA. The In nominal discharge current is 20kA. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Uc maximum continuous operating voltage in common mode is 264VAC between neutral and earth, and is 350VAC between phase and earth. The Up Voltage protection level in differential mode (between phase and neutral) is below or equal to 2.5kV. The Up Voltage protection level in common mode is below or equal to 1.5kV between phase and earth, or neutral and earth. The Un rated service voltage is 230VAC or 400VAC. The operating frequency is 50Hz or 60Hz. The dimensions are (W) 72mm x (H) 103.9mm x (D) 75.9mm. The width in 9mm pitches is 8. The weight is 445g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25C to 60C. The storage temperature is -40C to 85C. This product complies with IEC/EN 60947-5-1, EN 61643-11:2012 and IEC 61643-11:2011 standards.
A9L16292 key specifications
number of poles 1P.
Ordering information for A9L16292
- Order code:
A9L16292 - Manufacturer: Schneider Electric
- Range: Acti 9 iQuick-PF, iQuick-PRD
- GTIN / EAN: 3606480387043
- ETIM class: EC000941
- Datasheet: manufacturer datasheet for A9L16292
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480387043 |
| Range | Filter products by Acti 9 iQuick-PF, iQuick-PRD |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000941 |
Electrical ratings
| Number of poles | Filter products by 1P |
|---|
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9L16292 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
More in the Acti 9 iQuick-PF range
4 itemsSame series, same mounting and the same documentation set.
More in the Acti 9 iQuick-PF range
4 items

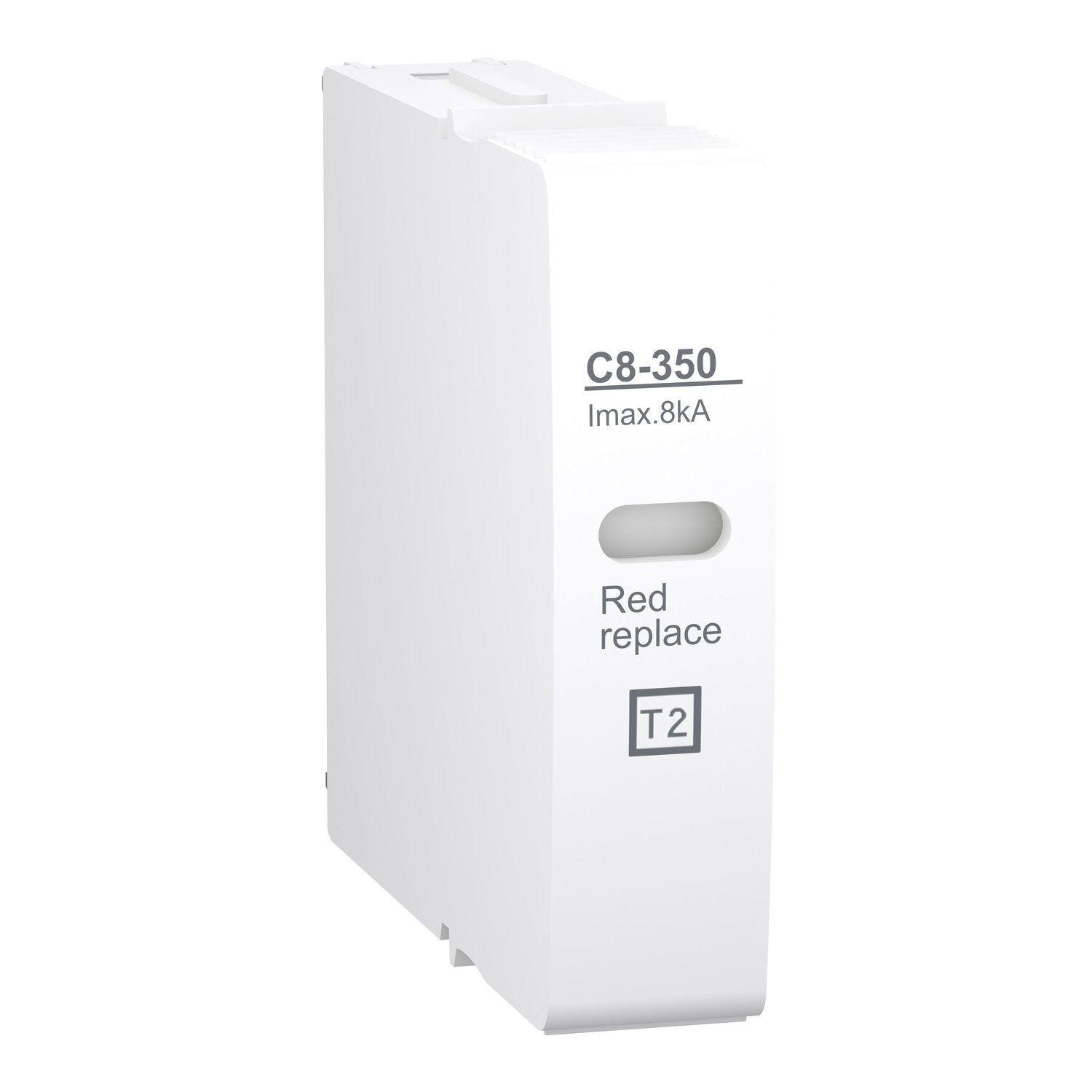

A9L16312Cartridge C8-350 for surge arrester iQuick PRDList R777.19 Your price R528.49View product

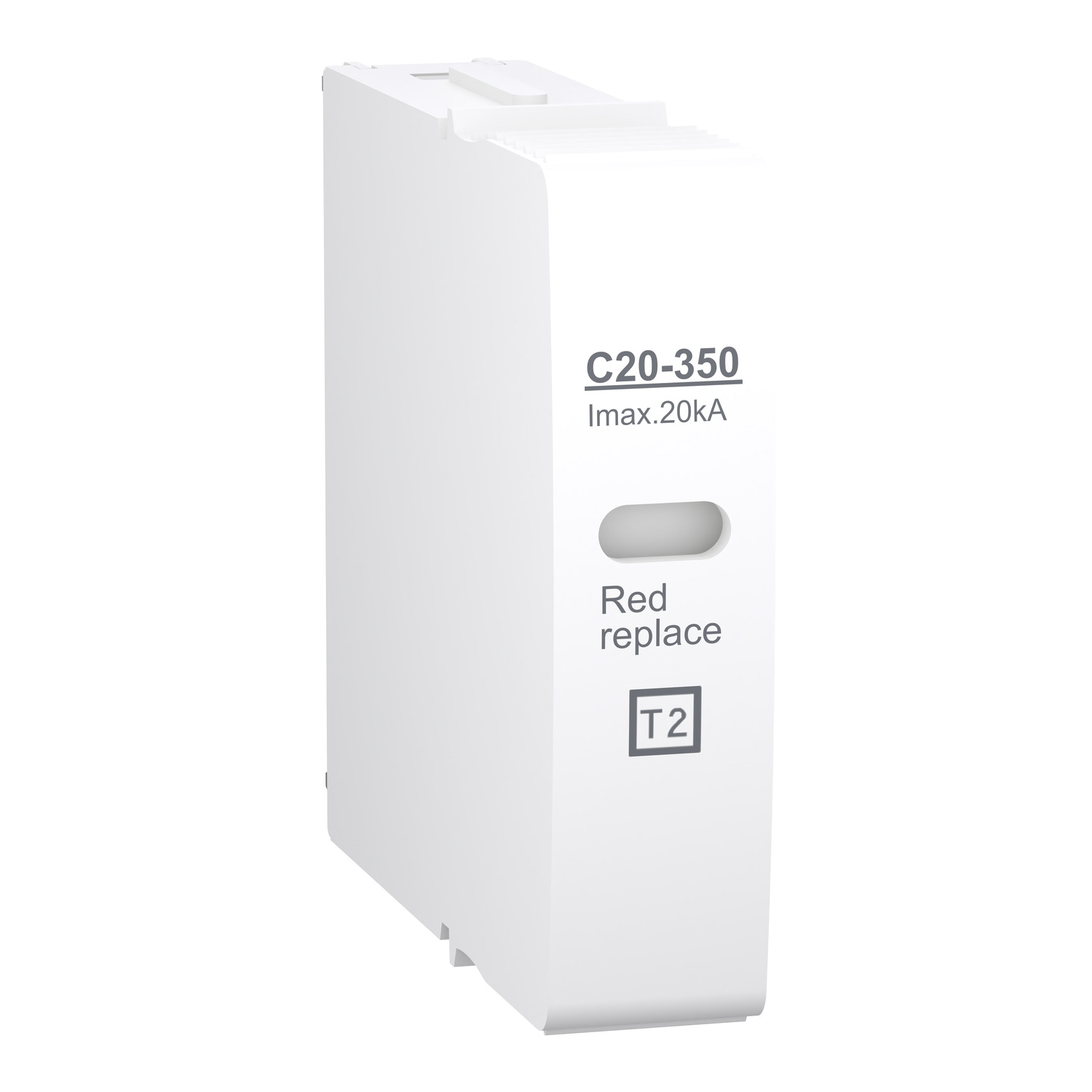

A9L16311Cartridge C20-350 for surge arrester iQuick PRDList R765.34 Your price R520.43View product
