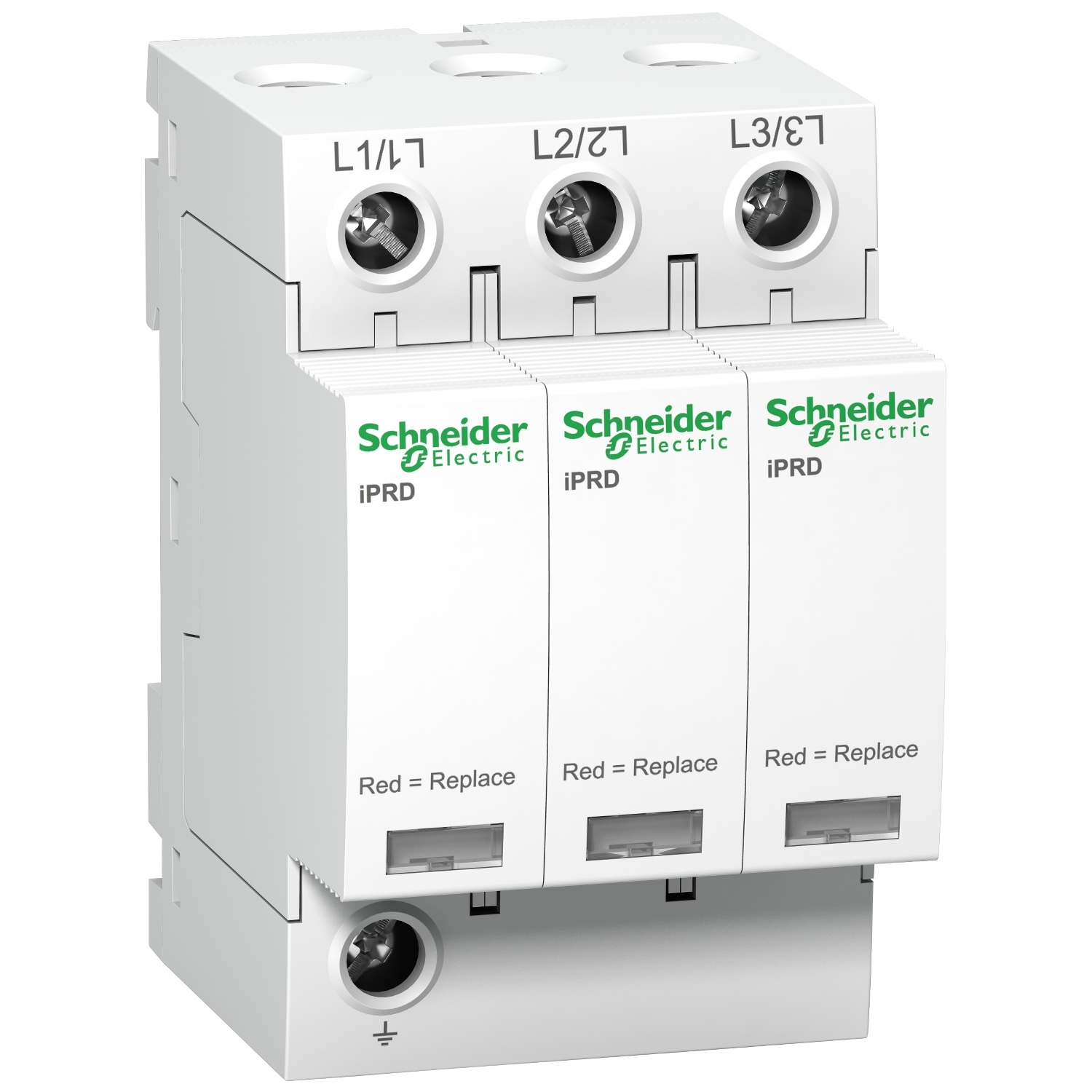

A9L65321 – IPRD65r modular surge arrester – 3P – IT – 460V – with remote transfert | Schneider Electric
Order code
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
List R1 433.47 Your price R974.76
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
IPRD65r modular surge arrester – 3P – IT – 460V – with remote transfert — Schneider Electric order code A9L65321.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9L65321 — IPRD65r modular surge arrester – 3P – IT – 460V – with remote transfert by Schneider Electric. Listed under Surge Protection Devices on the Schneider Electric catalogue at RMS-SE.Africa.
About A9L65321
This Acti9 iPRD65r surge arrester protects 3P installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for very high risk level and incoming panel board. It offers remote reporting of the “cartridge must be changed” message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode (between phase and earth) is 460VAC. The Up Voltage protection level in common mode (between phase and earth) is 2.3kV. The Ue rated operational voltage is 230VAC or 400VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 54mm x (H) 85mm x (D) 69mm. The weight is 340g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25C to 60C. The storage temperature is -40C to 85C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
A9L65321 key specifications
number of poles 3P.
Ordering information for A9L65321
- Order code:
A9L65321 - Manufacturer: Schneider Electric
- Range: Acti 9 iPRD
- GTIN / EAN: 3606480801648
- ETIM class: EC000941
- Datasheet: manufacturer datasheet for A9L65321
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480801648 |
| Range | Filter products by Acti 9 iPRD |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000941 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9L65321 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
More in the Acti 9 iPRD range
8 itemsSame series, same mounting and the same documentation set.
More in the Acti 9 iPRD range
8 items
A9L65601IPRD65r modular surge arrester, 3P + N, 350V, with remote transfertList R3 948.29 Your price R2 684.84View product

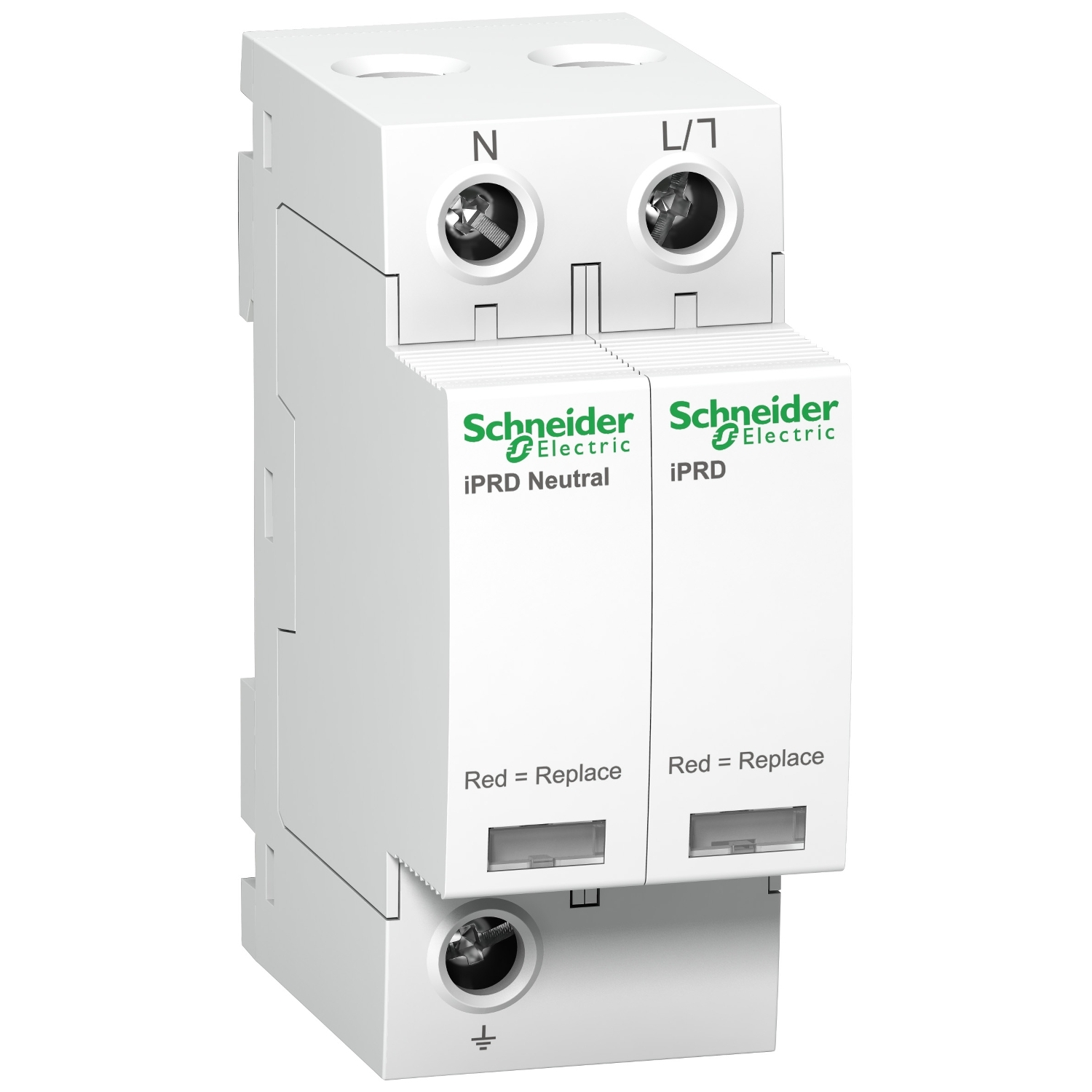

A9L65501IPRD65r modular surge arrester – 1P + N – 350V – with remote transfertList R2 265.76 Your price R1 540.72View product
A9L65401IPRD65r modular surge arrester – 4P – 350V – with remote transfertList R3 482.42 Your price R2 368.05View product- A9L65301IPRD65r modular surge arrester – 3P – 350V – with remote transfertList R2 866.96 Your price R1 949.53View product
A9L65201IPRD65r modular surge arrester – 2P – 350V – with remote transfertList R1 961.60 Your price R1 333.89View product

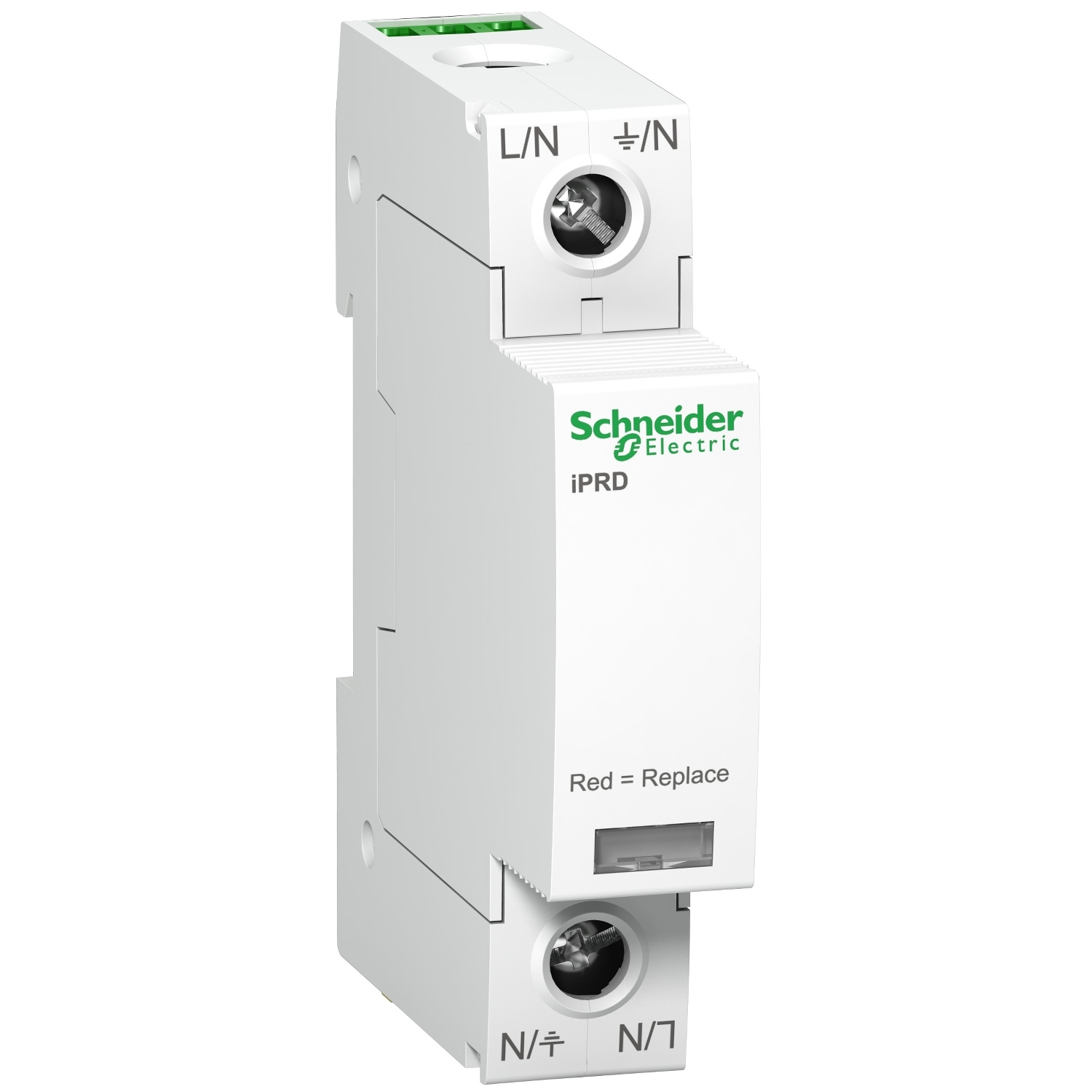

A9L65121IPRD65r modular surge arrester – 1P – IT – 460V – with remote transfertList R614.93 Your price R418.15View product- A9L65101IPRD65r modular surge arrester – 1P – 350V – with remote transfertList R1 229.82 Your price R836.28View product
- A9L40601IPRD40r modular surge arrester, 3P + N, 350V, with remote transfertList R2 804.73 Your price R1 907.22View product
Similar items
7 items
Similar items
7 items- A9L20421IPRD20r modular surge arrester – 4P – IT – 460V – with remote transfertList R1 506.98 Your price R1 024.75View product
- A9L40321IPRD40r modular surge arrester – 3P – IT – 460V – with remote transfertList R1 359.53 Your price R924.48View product
A9L20200A9L20200 – iPRD20 modular surge arrester – 2P – 350VList R1 541.39 Your price R1 048.15View product

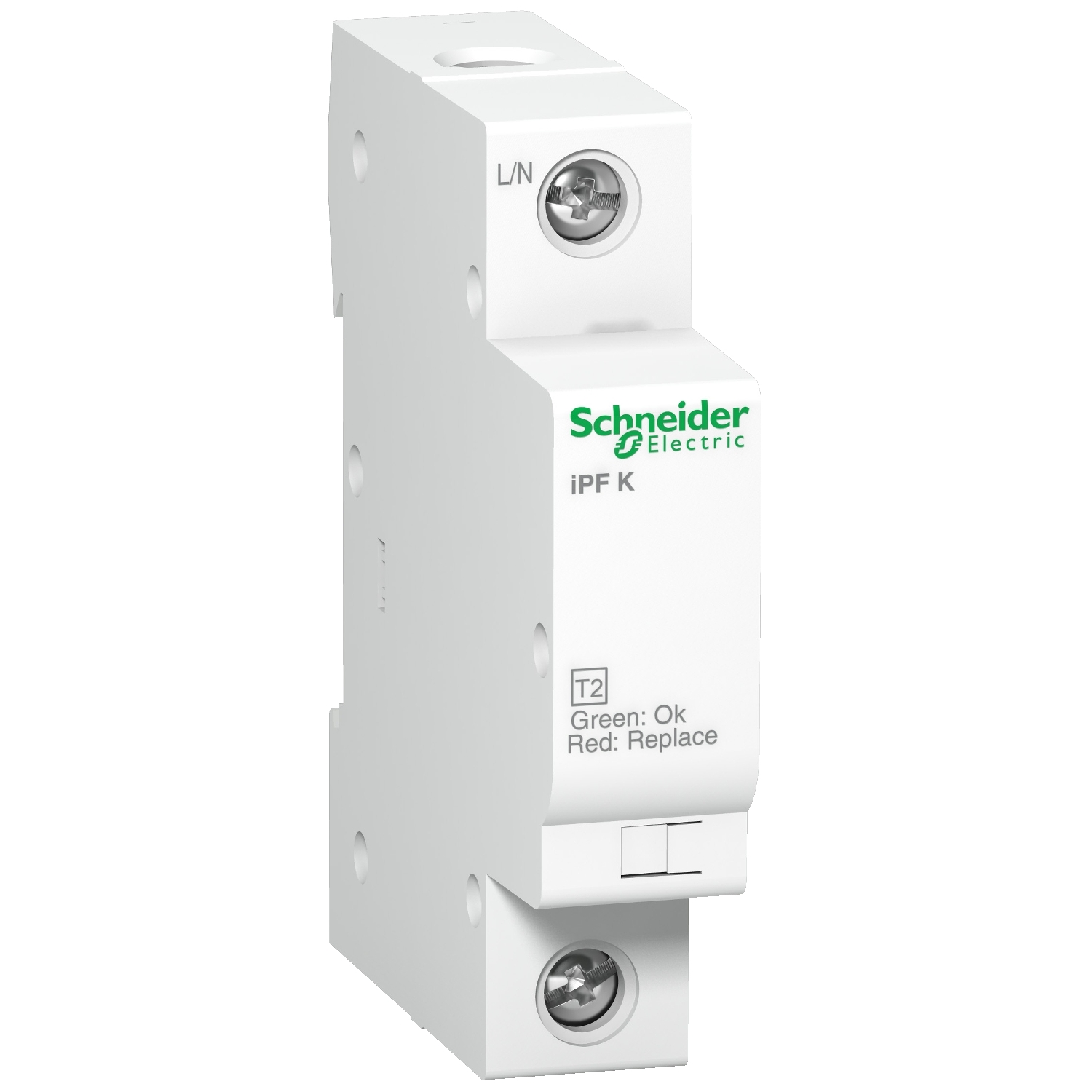

A9L15686IPF K 40 modular surge arrester – 1 pole – 340VList R1 279.98 Your price R870.39View product- A9L20321IPRD20r modular surge arrester – 3P – IT – 460V – with remote transfertList R1 234.72 Your price R839.61View product
A9L08500IPRD8 modular surge arrester – 1P + N – 350VList R1 635.72 Your price R1 112.29View product
A9L15582IPF K 40 modular surge arrester – 3 poles – 340VList R1 211.86 Your price R824.06View product
More in Surge Protection Devices
8 items
More in Surge Protection Devices
8 items

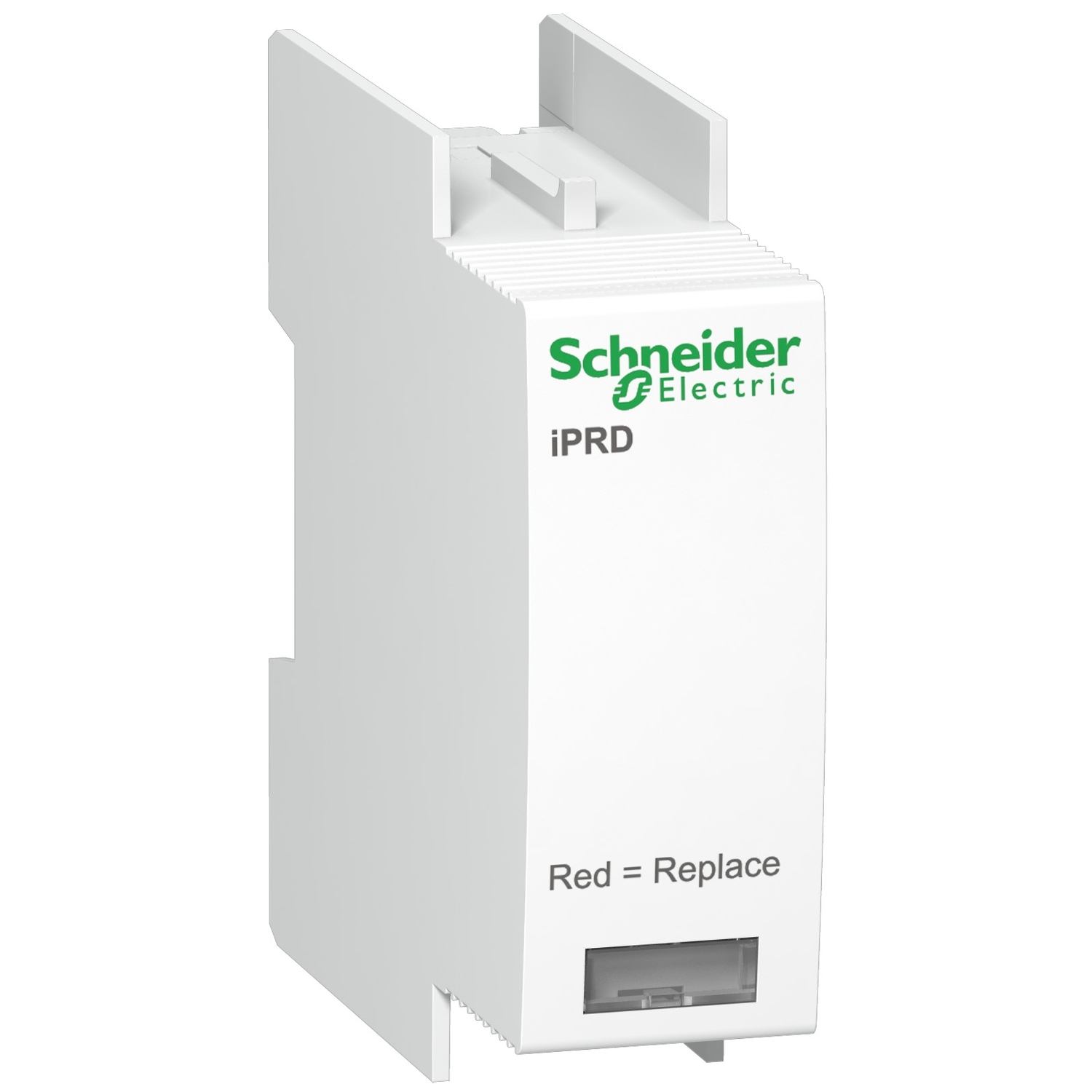

A9L65102Cartridge C65-350 for surge arrester iPRDList R920.46 Your price R625.91View product
A9L40600IPRD40 modular surge arrester, 3P + N, 350VList R3 392.71 Your price R2 307.04View product- A9L40501IPRD40r modular surge arrester – 1P + N – 350V – with remote transfertList R2 201.18 Your price R1 496.80View product
- A9L40500IPRD40 modular surge arrester – 1P + N – 350VList R1 971.92 Your price R1 340.91View product
- A9L40421IPRD40r modular surge arrester – 4P – IT – 460V – with remote transfertList R1 661.03 Your price R1 129.50View product
- A9L40401IPRD40r modular surge arrester – 4P – 350V – with remote transfertList R3 322.03 Your price R2 258.98View product

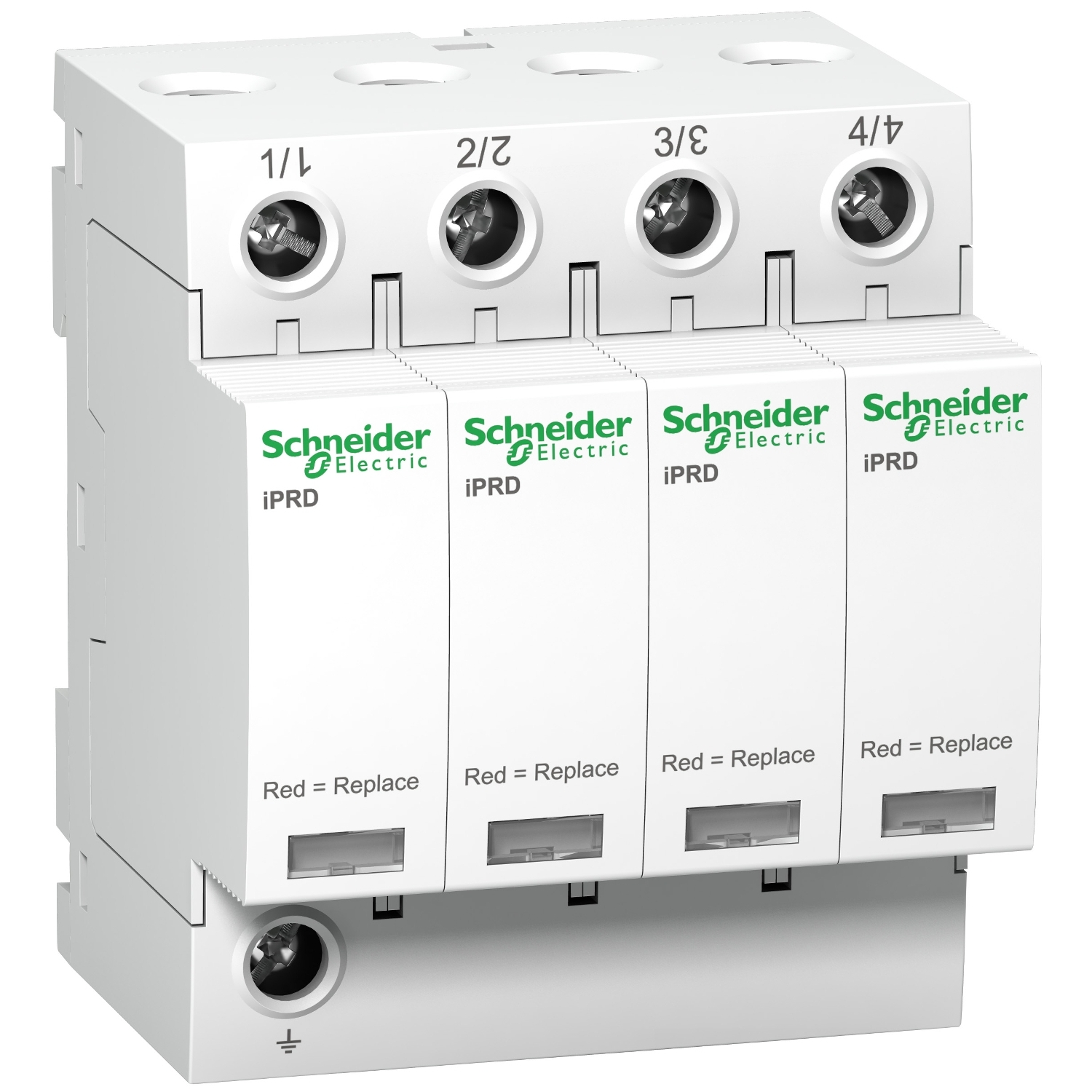

A9L40400IPRD40 modular surge arrester – 4P – 350VList R3 014.55 Your price R2 049.89View product- A9L40301IPRD40r modular surge arrester – 3P – 350V – with remote transfertList R2 719.09 Your price R1 848.98View product
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
Quick answers
What is A9L65321?
A9L65321 is the order code for IPRD65r modular surge arrester – 3P – IT – 460V – with remote transfert. It belongs to our Surge Protection Devices range. RMS-SE.Africa supplies it as genuine Schneider Electric product, sourced through the manufacturer's distribution channel.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
