Schneider ElectricMiniature Circuit Breakers (MCB's)

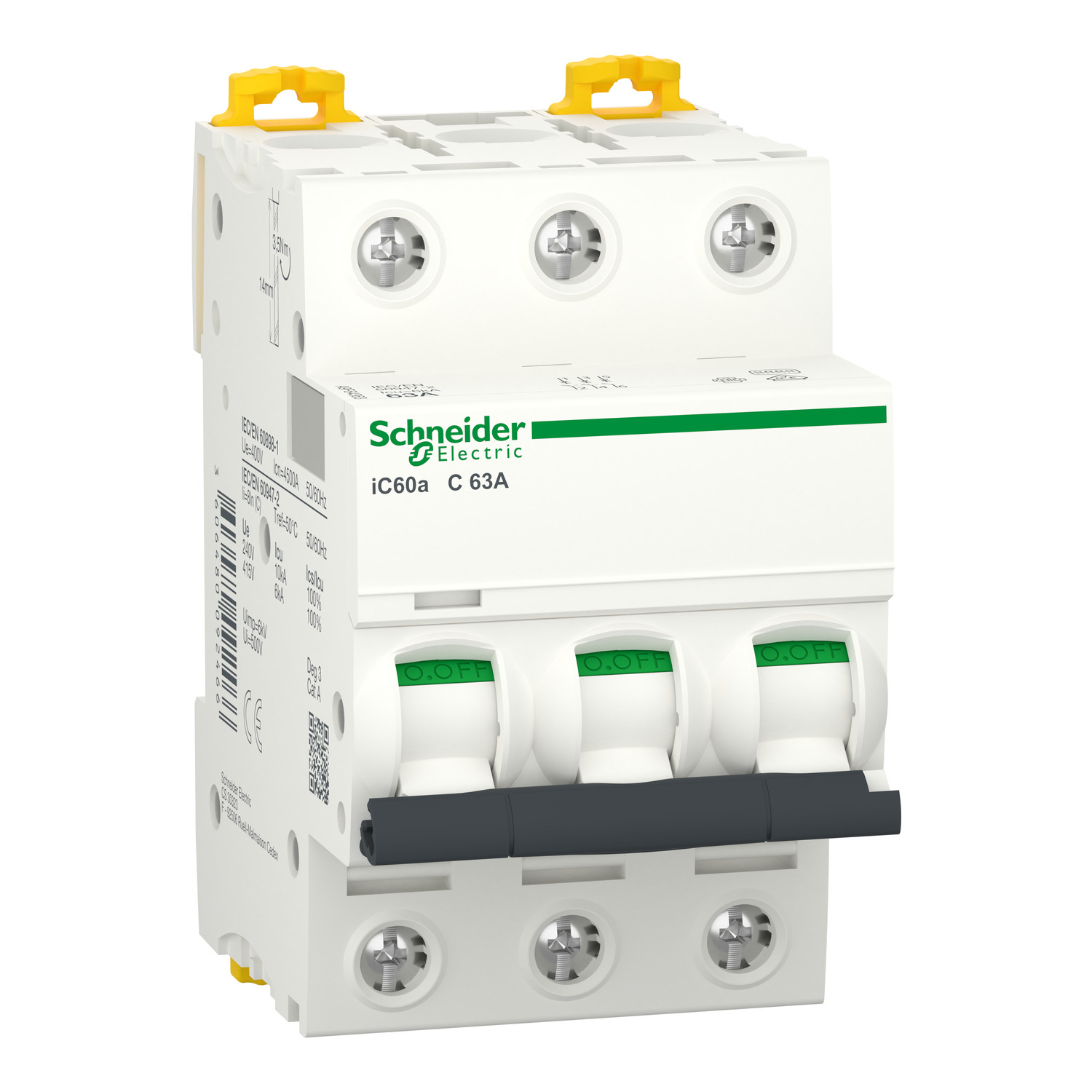

A9F64363 – Miniature circuit-breaker, Acti9 iC60a, 3P, 63 A, C curve, 4500 A (IEC 60898-1), 6 kA (IEC 60947-2) | Schneider Electric
Order code
List R1 072.21 Your price R729.10
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Miniature circuit-breaker, Acti9 iC60a, 3P, 63 A, C curve, 4500 A (IEC 60898-1), 6 kA (IEC 60947-2) — Schneider Electric order code A9F64363.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9F64363 — Miniature circuit-breaker, Acti9 iC60a, 3P, 63 A, C curve, 4500 A (IEC 60898-1), 6 kA (IEC 60947-2) by Schneider Electric. Listed under Miniature Circuit Breakers (MCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About A9F64363
This Acti9 iC60a is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 63A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 4500A at 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. It has an IP20 B degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -35C to 70C. The storage temperature is -40C to 85C.
A9F64363 key specifications
number of poles 3P; tripping curve C.
Ordering information for A9F64363
- Order code:
A9F64363 - Manufacturer: Schneider Electric
- Range: Acti 9 iC60
- GTIN / EAN: 3606480092466
- ETIM class: EC000042
- Datasheet: manufacturer datasheet for A9F64363
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480092466 |
| Range | Filter products by Acti 9 iC60 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000042 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Tripping curve | Filter products by C |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9F64363 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
More in the Acti 9 iC60 range
8 itemsSame series, same mounting and the same documentation set.
More in the Acti 9 iC60 range
8 items
A9V65463Vigi iC60 – earth leakage add-on block – 4P – 63A – 300mA – SI type – selectiveList R4 701.12 Your price R3 196.76View product
A9V65363Vigi iC60 – earth leakage add-on block – 3P – 63A – 300mA – SI type – selectiveList R3 778.34 Your price R2 569.27View product
A9V65263Vigi iC60 – earth leakage add-on block – 2P – 63A – 300mA – SI type – selectiveList R3 637.78 Your price R2 473.69View product- A9V61463Vigi iC60 – earth leakage add-on block – 4P – 63A – 30mA – SI typeList R3 588.04 Your price R2 439.87View product
A9V61425Vigi iC60 – earth leakage add-on block – 4P – 25A – 30mA – SI typeList R4 502.72 Your price R3 061.85View product- A9V61340Vigi iC60 – earth leakage add-on block – 3P – 40A – 30mA – SI typeList R4 706.11 Your price R3 200.15View product
- A9V61263Vigi iC60 – earth leakage add-on block – 2P – 63A – 30mA – SI typeList R5 028.83 Your price R3 419.60View product
A9V61225Vigi iC60 – earth leakage add-on block – 2P – 25A – 30mA – SI typeList R2 171.40 Your price R1 476.55View product
