Save 32%

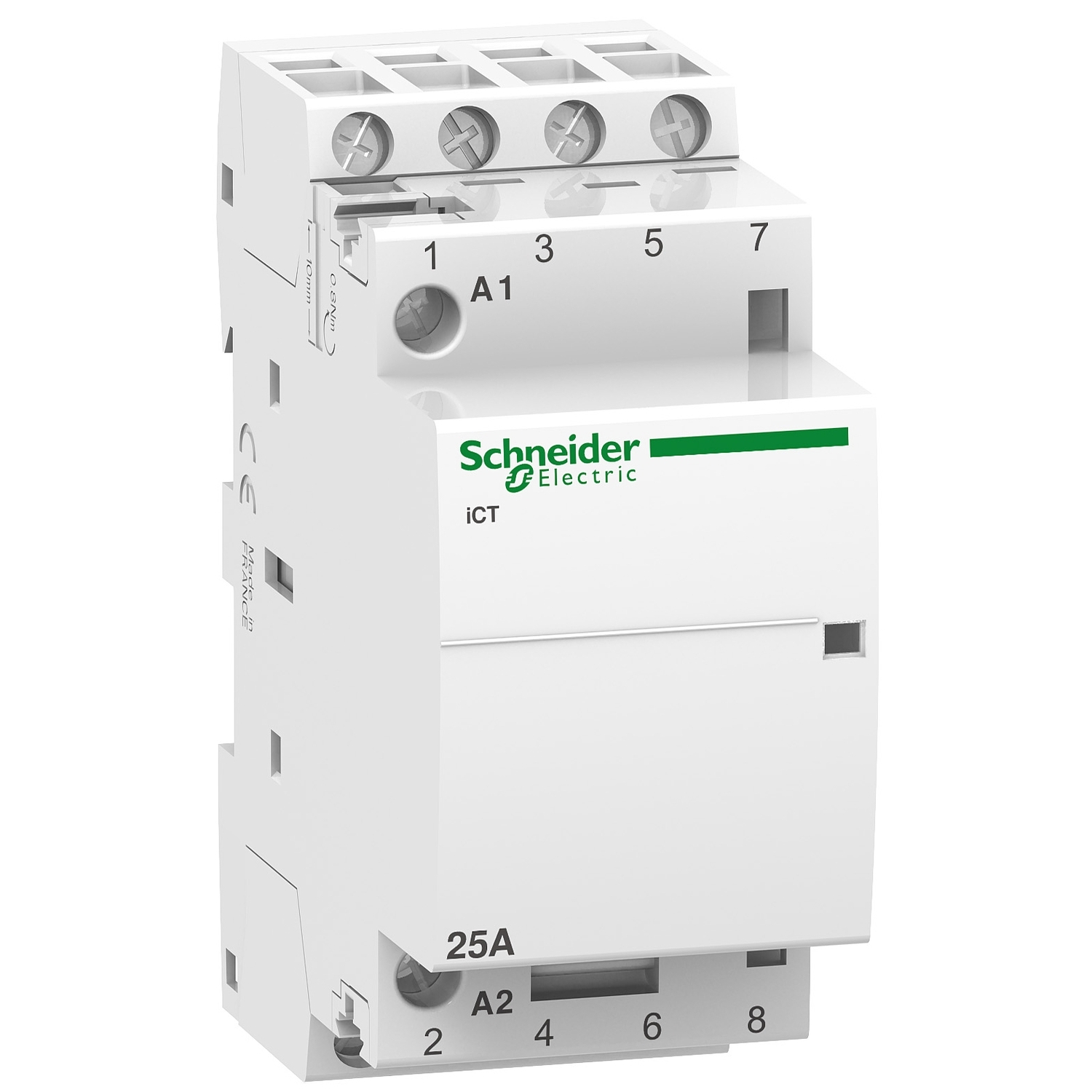

ICT 25A 4NO 24V 50Hz contactor

Schneider ElectricModular Contactors & Impulse Relays

A9C20134 – ICT 25A 4NO 24V 50Hz contactor | Schneider Electric

Order code

Select a variant in this series

Rating

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

List price

List R952.44 Your price R647.66

Excluding VAT · per unit · volume pricing available on request

Listed in stock — availability is re-confirmed on every order

ICT 25A 4NO 24V 50Hz contactor — Schneider Electric order code A9C20134.

Download datasheet (opens in a new tab)

Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised Schneider Electric distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: A9C20134 Category: Brand:

Overview

A9C20134 — ICT 25A 4NO 24V 50Hz contactor by Schneider Electric. Listed under Modular Contactors & Impulse Relays on the Schneider Electric catalogue at RMS-SE.Africa.

About A9C20134

This Acti9 iCT is a modular contactor. It is a 4P remote control device with 4 normally open contacts. The rated current is 25A for AC-7a and 8.5A for AC-7b. The Ue rated operational voltage is 400VAC. The Uc control voltage is 24VAC. This device could be used for control circuits. This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 4 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 81mm x (H) 36mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5C to 60 C. The storage temperature is from -40C to 70C.

A9C20134 key specifications

rated frequency 50 Hz.

Ordering information for A9C20134

Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

BrandFilter products by Schneider Electric
GTIN / EANFilter products by 3606480374784
RangeFilter products by Acti 9 iCT
Lifecycle statusFilter products by Current
ETIM classFilter products by EC001653

Electrical ratings

Rated FrequencyFilter products by 50 Hz

Documents

DatasheetDownload datasheet

Other specifications

SKU/Code/PartnumberFilter products by A9C20134

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

More in the Acti 9 iCT range

8 items

Same series, same mounting and the same documentation set.

Similar items

7 items

More in Modular Contactors & Impulse Relays

8 items

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Quick answers

What is A9C20134?

A9C20134 is the order code for ICT 25A 4NO 24V 50Hz contactor. It belongs to our Modular Contactors & Impulse Relays range. RMS-SE.Africa supplies it as genuine Schneider Electric product, sourced through the manufacturer's distribution channel.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
