Save 32%

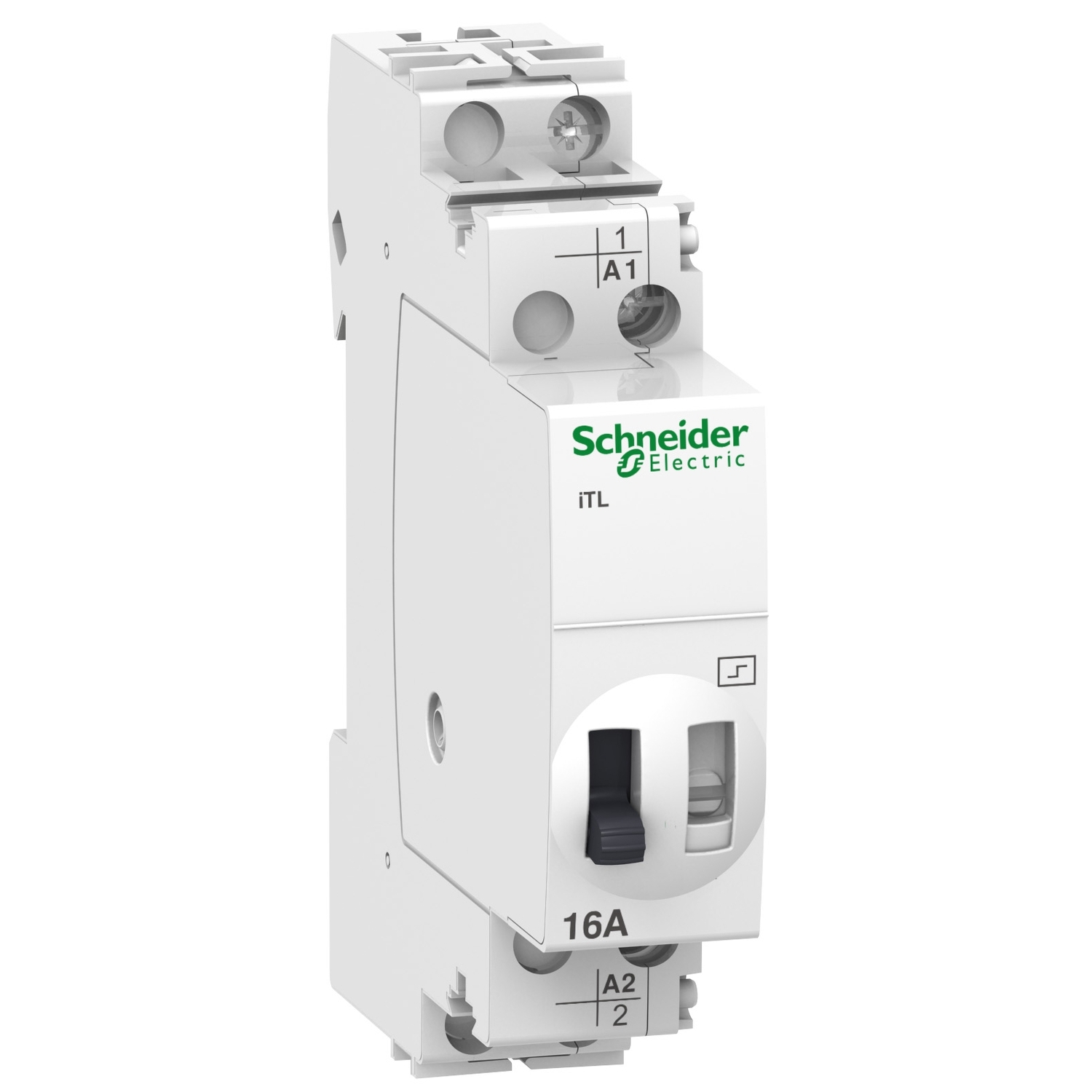

Impulse relay iTL - 1P - 1NO - 16A - coil 24 VDC - 48 VAC 50/60Hz
Key specifications
Number of polesFilter products by 1P
Coil voltage (Uc)Filter products by 24 V DC

Schneider ElectricModular Contactors & Impulse Relays

A9C30211 – Impulse relay iTL – 1P – 1NO – 16A – coil 24 VDC – 48 VAC 50/60Hz | Schneider Electric

Order code

Select a variant in this series

Poles
Coil voltage

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

List price

List R620.73 Your price R422.10

Excluding VAT · per unit · volume pricing available on request

Listed in stock — availability is re-confirmed on every order

Impulse relay iTL – 1P – 1NO – 16A – coil 24 VDC – 48 VAC 50/60Hz — Schneider Electric order code A9C30211.

Download datasheet (opens in a new tab)

Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised Schneider Electric distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: A9C30211 Category: Brand:

Overview

A9C30211 — Impulse relay iTL – 1P – 1NO – 16A – coil 24 VDC – 48 VAC 50/60Hz by Schneider Electric. Listed under Modular Contactors & Impulse Relays on the Schneider Electric catalogue at RMS-SE.Africa.

About A9C30211

This Acti9 iTL is a modular impulse relay. This 1P device has 1 normally open contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 48VAC or 24VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20C to 50C. The storage temperature is from -40C to 70C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.

A9C30211 key specifications

number of poles 1P; coil voltage 24 V DC; rated frequency 50 / 60 Hz.

Ordering information for A9C30211

Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

BrandFilter products by Schneider Electric
GTIN / EANFilter products by 3606480088964
RangeFilter products by Acti 9 iTL
Lifecycle statusFilter products by Current
ETIM classFilter products by EC000188

Electrical ratings

Number of polesFilter products by 1P
Rated FrequencyFilter products by 50 / 60 Hz

Power & coil

Coil voltage (Uc)Filter products by 24 V DC

Documents

DatasheetDownload datasheet

Other specifications

SKU/Code/PartnumberFilter products by A9C30211

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

More in the Acti 9 iTL range

8 items

Same series, same mounting and the same documentation set.

Similar items

8 items

More in Modular Contactors & Impulse Relays

8 items

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Quick answers

What is A9C30211?

A9C30211 is the order code for Impulse relay iTL – 1P – 1NO – 16A – coil 24 VDC – 48 VAC 50/60Hz. It belongs to our Modular Contactors & Impulse Relays range. RMS-SE.Africa supplies it as genuine Schneider Electric product, sourced through the manufacturer's distribution channel.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
