Save 32%

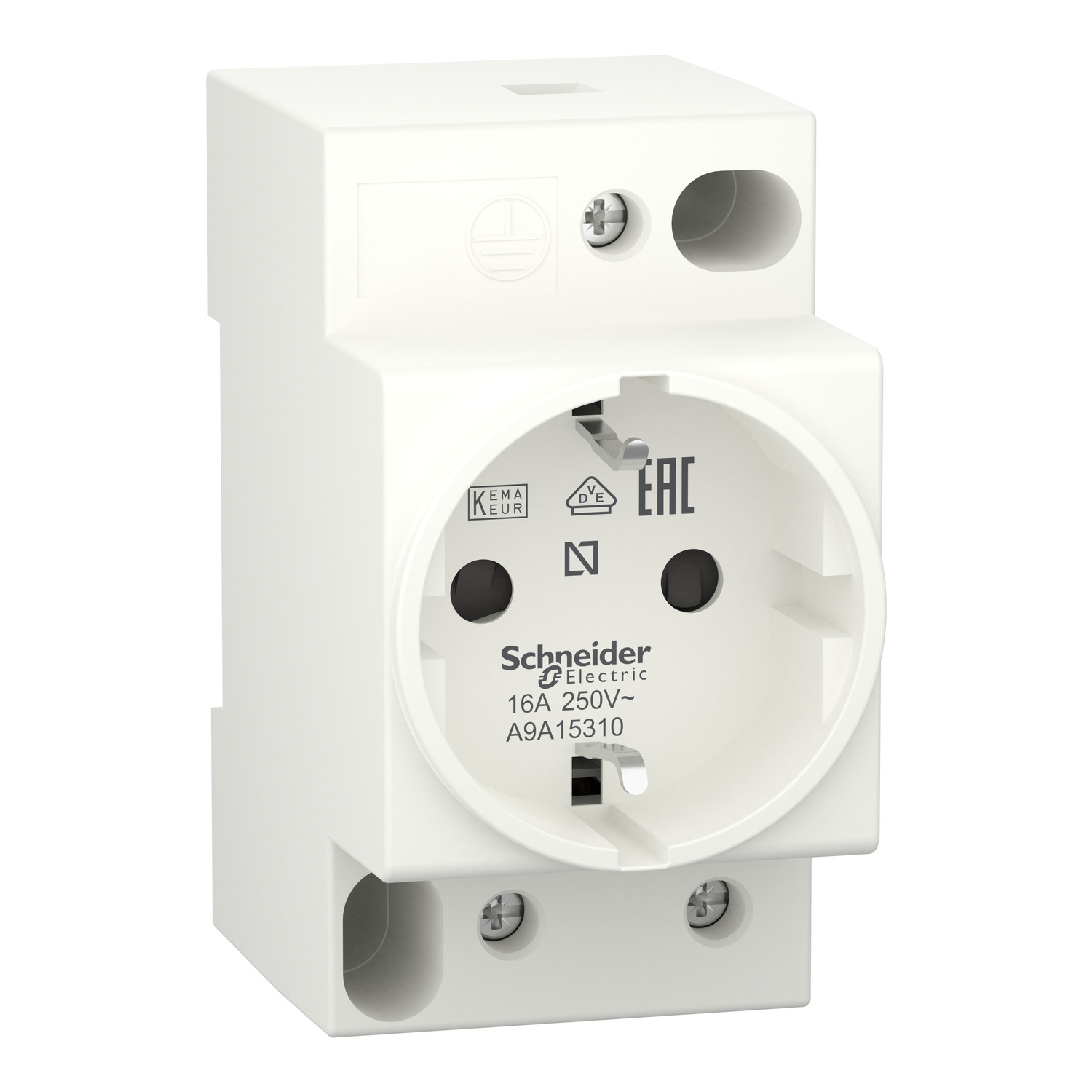

DIN socket, Acti9 iPC, 2P+E, 16A, 250VAC
Key specifications
Number of polesFilter products by 2P

Schneider ElectricUncategorized

A9A15310 – DIN socket, Acti9 iPC, 2P+E, 16A, 250VAC | Schneider Electric

Order code

List price

List R216.70 Your price R147.36

Excluding VAT · per unit · volume pricing available on request

Listed in stock — availability is re-confirmed on every order

DIN socket, Acti9 iPC, 2P+E, 16A, 250VAC — Schneider Electric order code A9A15310.

Download datasheet (opens in a new tab)

Accessories & add-ons 7
Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised Schneider Electric distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: A9A15310 Category: Brand:

Overview

A9A15310 — DIN socket, Acti9 iPC, 2P+E, 16A, 250VAC by Schneider Electric. Listed under Uncategorized on the Schneider Electric catalogue at RMS-SE.Africa.

About A9A15310

This Acti9 iPC product is a modular power socket allow low-voltage device to be connected to the electrical network. It is a standard 16A 2P+E power socket with protective cover on poles. It is compliant with KEMA VDE 0620 german standard. The tightening torque of connection is 1.2N.m for PZ2 screwdriver type. The connection allows rigid copper cables between 1 to 10mm. The connection allows flexible or with ferrule copper cables between 1 to 6mm. The width in 9mm pitches is 5. The product color is white (RAL9003). The dimensions are (W) 45mm x (H) 81mm x (D) 55mm. The weight is 100g. The degree of protection is IP20 at terminals and IP40 in enclosure. The operating temperature is -25C to +70C. The storage temperature is -40C to +80C. It complies with VDE 0620 standard, UNE_20315-1-1 and NEN 1020.

A9A15310 key specifications

number of poles 2P.

Ordering information for A9A15310

Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

BrandFilter products by Schneider Electric
GTIN / EANFilter products by 3606480097782
RangeFilter products by Acti 9 iPC
Lifecycle statusFilter products by Current
ETIM classFilter products by EC001663

Electrical ratings

Number of polesFilter products by 2P

Documents

DatasheetDownload datasheet

Other specifications

SKU/Code/PartnumberFilter products by A9A15310

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Accessories & add-ons

7 items

Similar items

6 items

More in Uncategorized

8 items

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Quick answers

What is A9A15310?

A9A15310 is the order code for DIN socket, Acti9 iPC, 2P+E, 16A, 250VAC. It belongs to our Uncategorized range. RMS-SE.Africa supplies it as genuine Schneider Electric product, sourced through the manufacturer's distribution channel.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
