A9L16339 – IPRI signal protection – 4 poles – 0.3A – 48 V | Schneider Electric
Order code
List R3 810.36 Your price R2 591.04
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
IPRI signal protection – 4 poles – 0.3A – 48 V — Schneider Electric order code A9L16339.
Download datasheet (opens in a new tab)
Accessories & add-ons 7
- TERMINAL MARKER 0 TO 9AB1R11List R13.17 Your price R8.96Add
- Impulse relay iTL+ – 1P+N – 1NO – 16A – coil 230 VAC 50HzA9C15032List R1 707.50 Your price R1 161.10Add
- 1 SET OF 2 INTERLOCK RODS33210List R1 186.78 Your price R807.01Add
- Front, side rotary handle – black handle31084List R1 007.66 Your price R685.21Add
- Low level auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type29452List R1 005.92 Your price R684.03Add
- Mounting accessory for OsiSense XX M30XXZB130List R409.30 Your price R278.32Add
- Interlock switch 300 VAC 10as XCSLXCSL766B1List R10 335.61 Your price R7 028.21Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9L16339 — IPRI signal protection – 4 poles – 0.3A – 48 V by Schneider Electric. Listed under Uncategorized on the Schneider Electric catalogue at RMS-SE.Africa.
About A9L16339
This Acti9 iPRI is a surge arrester protecting against overvoltage related to lightning strikes. It is an analogue telephone line protection. The iPRC surge arrester wired in series to the private installation input protects telephones, modems. The Uc maximum continuous operating voltage in common mode (between phase and earth) is 37 VAC or 53VDC. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 37VAC or 53VDC. The Up Voltage protection level is 70V in differential mode (between phase and neutral) and in common mode (between phase and earth). The Ue rated operational voltage is 48VDC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 18mm x (H) 90mm x (D) 66mm. The weight is 65g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25C to 60C. The storage temperature is -40C to 85C.
A9L16339 key specifications
number of poles 4P.
Ordering information for A9L16339
- Order code:
A9L16339 - Manufacturer: Schneider Electric
- Range: Acti 9 iPRC, iPRI, iPRE
- GTIN / EAN: 3606480383526
- ETIM class: EC000943
- Datasheet: manufacturer datasheet for A9L16339
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480383526 |
| Range | Filter products by Acti 9 iPRC, iPRI, iPRE |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000943 |
Electrical ratings
| Number of poles | Filter products by 4P |
|---|
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9L16339 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Accessories & add-ons
7 items
Accessories & add-ons
7 items
AB1R11TERMINAL MARKER 0 TO 9List R13.17 Your price R8.96View product
A9C15032Impulse relay iTL+ – 1P+N – 1NO – 16A – coil 230 VAC 50HzList R1 707.50 Your price R1 161.10View product
332101 SET OF 2 INTERLOCK RODSList R1 186.78 Your price R807.01View product
31084Front, side rotary handle – black handleList R1 007.66 Your price R685.21View product
29452Low level auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact typeList R1 005.92 Your price R684.03View product
XXZB130Mounting accessory for OsiSense XX M30List R409.30 Your price R278.32View product
XCSL766B1Interlock switch 300 VAC 10as XCSLList R10 335.61 Your price R7 028.21View product
Similar items
8 items
Similar items
8 items
XZBWE112A24Radio transmitter, wireless for sensors and switchesList R3 495.29 Your price R2 376.80View product
ABE9C1281MIP67 passive splitter box – with 8 channels M12 connector – LedList R3 371.36 Your price R2 292.52View product
LV429047trip unit TM16D for ComPact NSX 100 circuit breakers, thermal magnetic, rating 16 A, 4 poles 3dR3 041.85View product- LV429047trip unit TM16D for ComPact NSX 100 circuit breakers, thermal magnetic, rating 16 A, 4 poles 3dR3 041.85View product
LV833729Rear top connection – vertical – for MTZ1 06-16 – 3P drawoutR2 041.57View product- LV833729Rear top connection – vertical – for MTZ1 06-16 – 3P drawoutR2 041.57View product

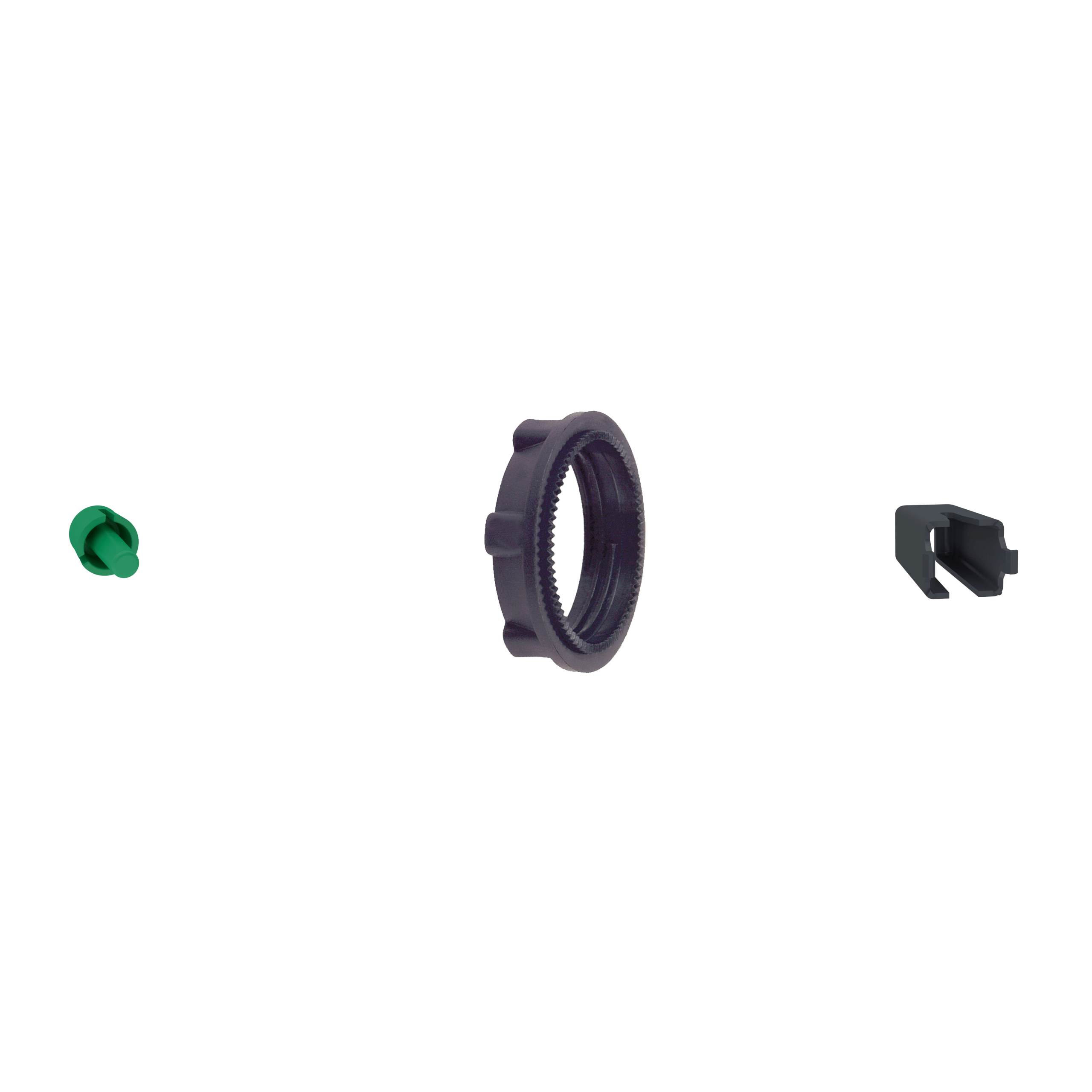

HMIZKITRA1Kit for illuminated USB SwitchList R2 969.88 Your price R2 019.52View product- LV429046trip unit TM25D for ComPact NSX 100 circuit breakers, thermal magnetic, rating 25 A, 4 poles 3dR3 230.29View product
More in Uncategorized
8 items
More in Uncategorized
8 items
BSH0551P11A1AAC servo motor BSH – 0.5 N.m – 4000 rpm – keyed shaft – without brake – IP50List R15 447.29 Your price R10 504.16View product
BRS39AN270AAAVRDM3910/50LNA OOIP41 OO D9O 73 OOOS400List R9 634.68 Your price R6 551.58View product- BMXNOE0110Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100List R36 574.49 Your price R24 870.65View product
- BMH1402P11A2AMOTOR 140MM IEC 18,5NM IP54 3900W KEYList R29 834.73 Your price R20 287.62View product
BLRBH500A000B40VarPlus Box HDuty Capacitor – 50/0 kvar – 400 V – 50/60HzList R7 203.41 Your price R4 898.32View product
BCH2LF0733CA5CServo motor BCH, 80mm, 750W, w oil seal, w key, leads conList R17 314.08 Your price R11 773.57View product- AP581617" Rack LCD Console with Integrated 16 Port Analog KVM SwitchList R49 202.57 Your price R33 457.75View product
A9A15310DIN socket, Acti9 iPC, 2P+E, 16A, 250VACList R216.70 Your price R147.36View product
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
Quick answers
What is A9L16339?
A9L16339 is the order code for IPRI signal protection – 4 poles – 0.3A – 48 V. It belongs to our Uncategorized range. RMS-SE.Africa supplies it as genuine Schneider Electric product, sourced through the manufacturer's distribution channel.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
