LV434063 — I/O (input/output) application module, Enerlin'X, a moulded case circuit breaker from the Square D Enerlin'X IO range. Listed under Moulded Case Circuit Breakers (MCCBs) at RMS-SE.Africa.

About LV434063

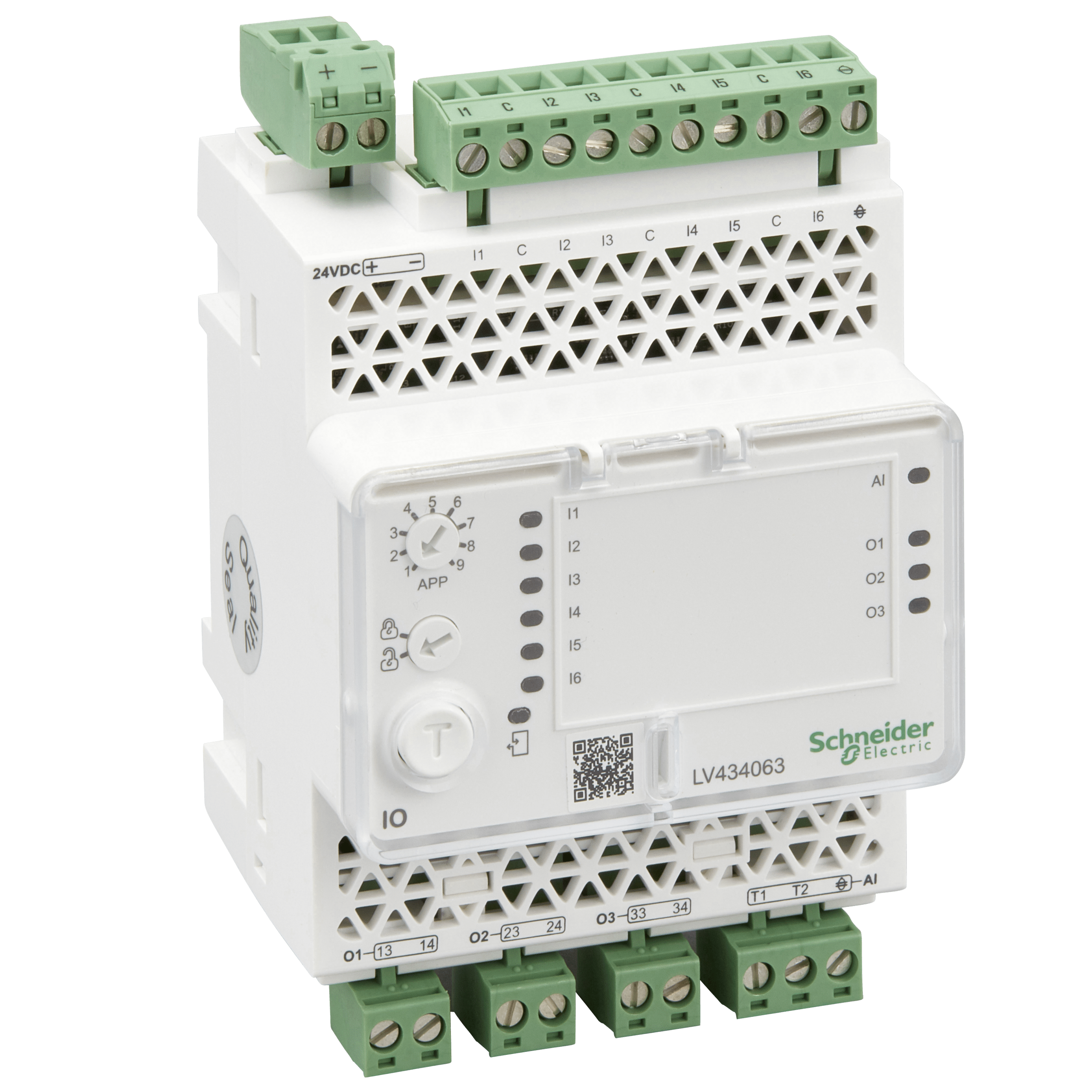

This I/O module is an Input/Output application module and it is part of EnerlinX communication system. This I/O module is compatible with Masterpact, Compact and PowerPact devices. It is used for protection, circuit breaker control, motor control, energy management and monitoring applications. It provides six digital inputs, three digital outputs and one analog input. It is equipped on the top with one 24VDC screw clamp terminal block and one terminal block for the 6 digital inputs. There are two RJ45 sockets on the bottom for ULP, and 4 terminal blocks for the digital outputs and analog input. The I/O module is a DIN rail mounting device and its dimensions are 72mm x 116mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The I/O module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The I/O module can be configured and updated (firmware) using EcoStruxure Power Commission software.

LV434063 key specifications

Key specifications: rated voltage 24 V; DIN rail mounting.

Ordering information for LV434063

Order code: LV434063
Manufacturer: Square D
Range: Enerlin'X IO
GTIN / EAN: 3606480631146
Supplied: each
Weight: 0.294 kg
ETIM class: EC001597
Datasheet: manufacturer datasheet for LV434063

LV434063 — frequently asked questions

Where is the datasheet for LV434063?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Square D publishes them.

Is LV434063 a genuine Square D product?

Yes. LV434063 is supplied through the manufacturer’s authorised channel with the standard Square D warranty, and every order is confirmed against stock before payment.
