Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

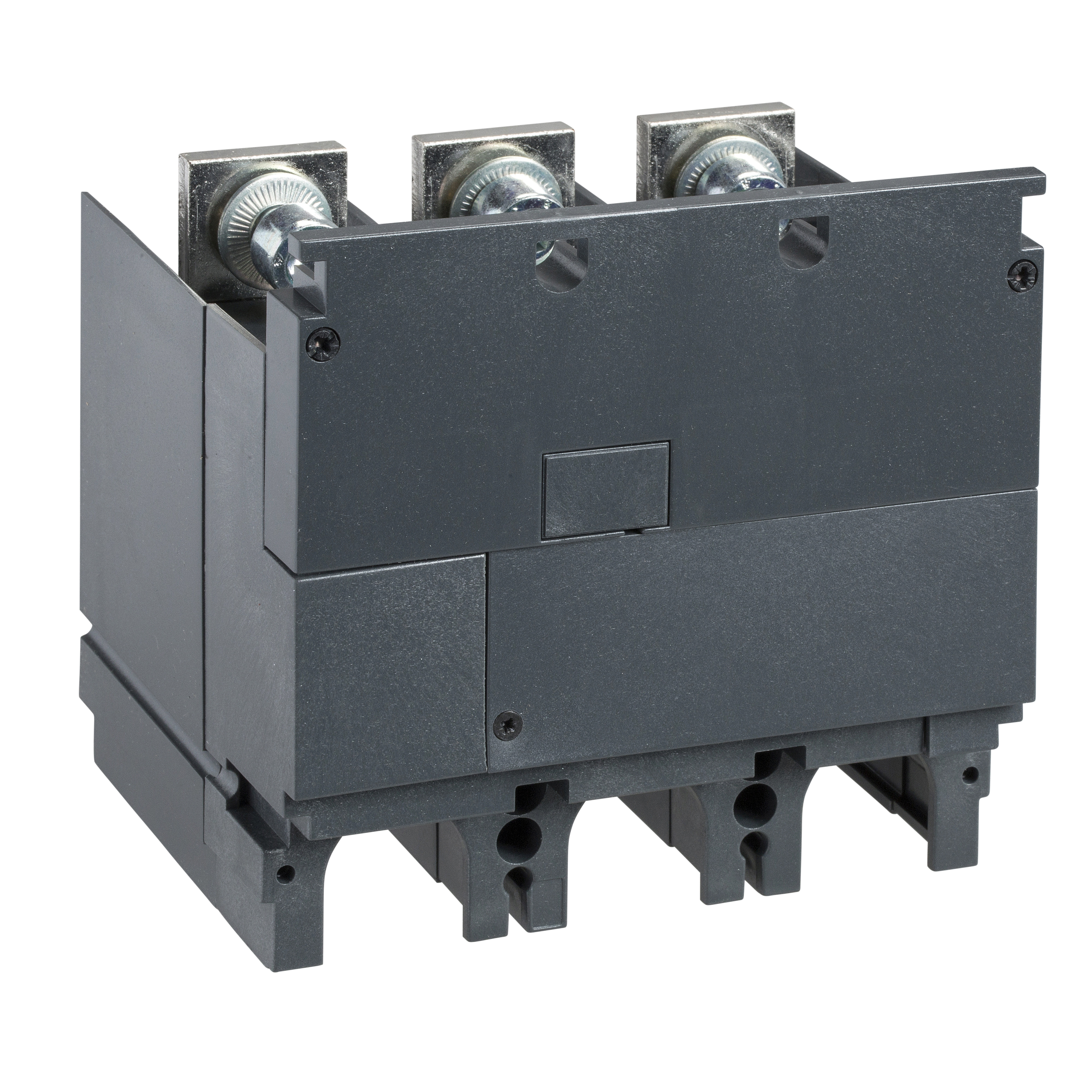

LV432857 – current transformer module, ComPact NSX630, 630 A rating, 3 poles Schneider Electric
Order code
R18 238.93
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Current transformer module, ComPact NSX630, 630 A rating, 3 poles — Schneider Electric order code LV432857. Rated current 630 A; 3P; IP40.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV432857 — Current transformer module, ComPact NSX630, 630 A rating, 3 poles, a moulded case circuit breaker from the Schneider Electric Compact NSX <630 range.
This is an additional current transformer module of 630A rating for 3 poles ComPact NSX630 devices. This module enables direct connection of a measurement device such as an ammeter. The module is installed directly on the downstream circuit breaker power terminals. The current rating is 630A. The current at the secondary winding is 5A. The power consumption is 8VA. The class accuracy is 4.5. There is a class II insulation level between the front face and the power circuits. The protection degree is IP40.
Key specifications: rated current 630 A; 3P; IP40.
Ordering information
- Order code:
LV432857 - Manufacturer: Schneider Electric
- Range: Compact NSX <630
- GTIN / EAN: 3606480020858
- Supplied: each
- Weight: 2.28 kg
- ETIM class: EC002048
- Datasheet: manufacturer datasheet for LV432857
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 630 A |
Environment & protection
| Degree of protection (IP) | Filter products by IP40 |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Filter products by LV432857 |
| Iternational GTIN | Filter products by 3606480020858 |
