XY2CH13250H29 – Latching emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e XY2CH, 1NC+1 NO, booted pushbutton
Order code
R4 210.82
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Telemecanique Sensors – Latching emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e XY2CH, 1NC+1 NO, booted pushbutton – Preventa XY2C | XY2CH13250H29
Accessories & add-ons 7
- Telemecanique Emergency stop rope pull switches XY2C, XY2CED mounting kit accessories & cable D=5 mm L=2x100mXY2CZ96200R12 766.46Add
- Telemecanique Emergency stop rope pull switches XY2C, mounting kit, Ø 3.2 mm, L 30.5 m Telemecanique SensorsXY2CZ9330R4 852.04Add
- Telemecanique Emergency stop rope pull switches XY2C, XY2CED mounting kit accessories & cable D=5 mm L=2x70mXY2CZ96140R9 878.51Add
- Telemecanique Emergency stop rope pull switches XY2C, mounting kit, spring notched washer circlip TelemecaniqueXY2CZ918R277.84Add
- Mounting accessory for OsiSense XX M30 Telemecanique SensorsXXZB130R409.30Add
- Fixing bracket, Photoelectric sensors XU, accessory for sensor, XUK, metal, for XUL substitutionXUZASK003R310.13Add
- Fixing bracket, Photoelectric sensors XU, accessory for sensor, XUK S, stainless steelXUZA51SR671.94Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview

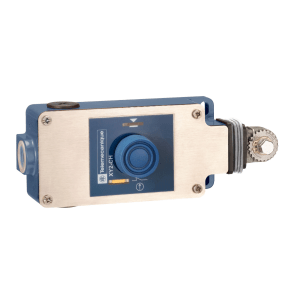

XY2CH13250H29 – Latching emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e XY2CH, 1NC+1 NO, booted pushbutton Telemecanique Sensors This XY2CH Emergency Stop Rope pull Switch is designed with a right hand side or a left hand side anchor point, allowing operator to trigger the stop of potentially dangerous machines at any point of its working area. It operates with a maximum rope length of 30 meters. It has a Zamak body with a booted pushbutton reset, Chloroprene bellows, no pilot light, and 1 normally open and 1 normally closed slow break contacts. Its B10D reliability data is 4 000 000. This emergency stop rope pull switch is suitable for woodworking machines, shears, conveyor systems, printing machines, textile machines, rolling mills, test laboratories, paint shops, surface treatment works, etc. Its IP65 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, EN/ISO 13850, UL NISD, CSA C22.2 No 14-13 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. Latching emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e XY2CH, 1NC+1 NO, booted pushbutton XY2CH13250H29 – Preventa XY2C
XY2CH13250H29 – Latching emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e XY2CH, 1NC+1 NO, booted pushbutton Telemecanique Sensors is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.
This product forms part of the Latching range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.
Technical Specifications
- Brand: Schneider Electric
- Series: Latching
- IP Rating: IP65
- Mount Type: Surface Mount
Key Features
- Part of the Latching range
- IP65 ingress protection
- Surface Mount installation format
Applications
- Industrial automation
- Commercial electrical installations
- Control and protection systems
- Infrastructure and maintenance projects
Browse Related Categories
Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Environment & protection
| Degree of protection (IP) | Filter products by IP65 |
|---|---|
| Ambient air temperature | Filter products by 2C |
Other specifications
| Related Categories | Filter products by Uncategorized |
|---|---|
| SKU/Code/Partnumber | Filter products by XY2CH13250H29 |
| Iternational GTIN | Filter products by 3389110973501 |
| Mount Type | Filter products by Surface Mount |
