Schneider ElectricUltrasonic Sensors

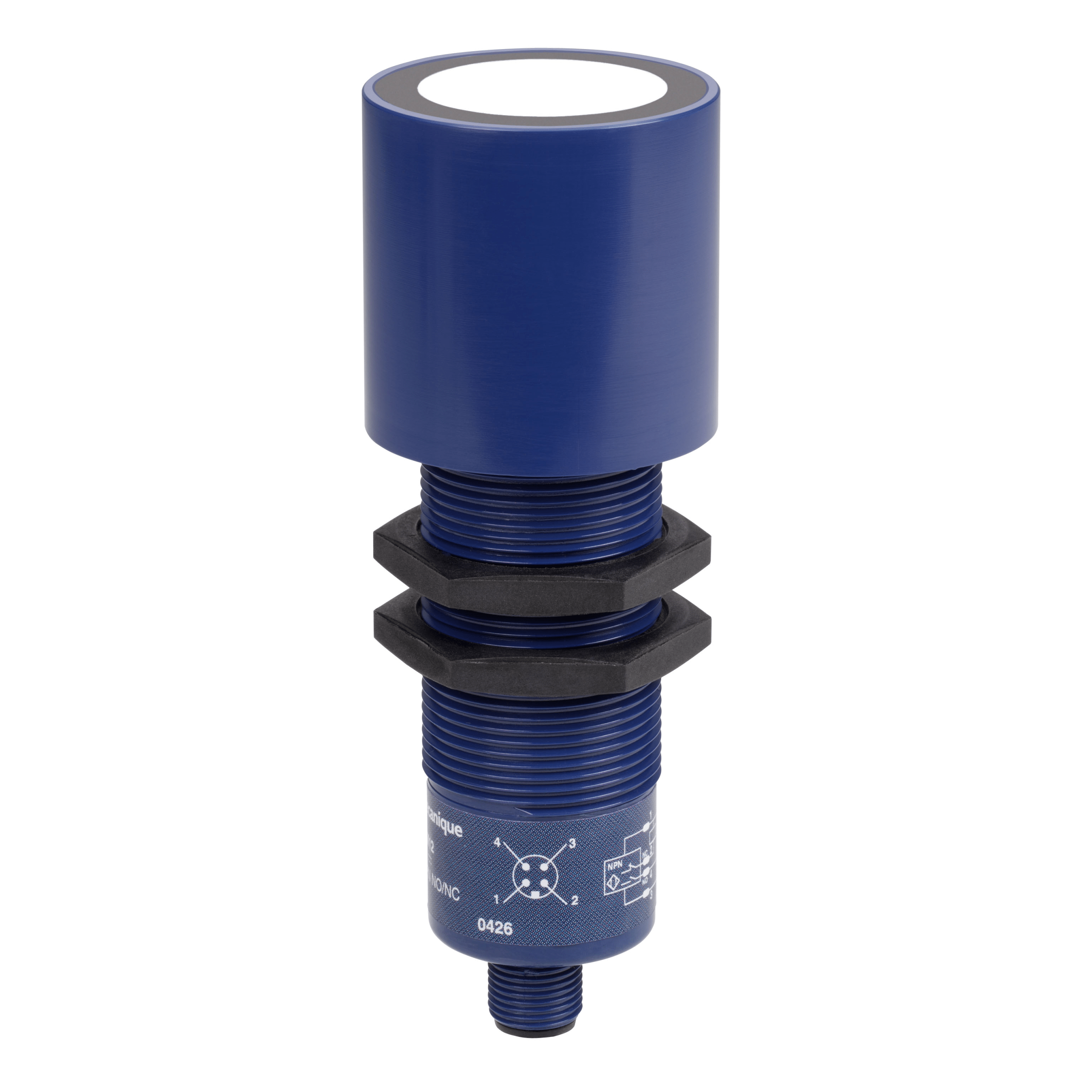

XX930A3A1M12 – Ultrasonic sensors XX, ultrasonic sensor cylindrical M30, Sn 8 m, M12 connector | Telemecanique Sensors
Order code
List R25 447.31 Your price R17 304.17
Per unit · volume pricing available on request
excl. VAT R19 899.80 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Ultrasonic sensors XX, ultrasonic sensor cylindrical M30, Sn 8 m, M12 connector — Telemecanique Sensors order code XX930A3A1M12. Rated voltage 15 V; IP67; surface mounting.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
XX930A3A1M12 — Ultrasonic sensors XX, ultrasonic sensor cylindrical M30, Sn 8 m, M12 connector from the Telemecanique Sensors OsiSense XX range. Listed under Ultrasonic Sensors on the Telemecanique Sensors catalogue at RMS-SE.Africa.
About XX930A3A1M12
This cylindrical ultrasonic sensor has a ULTEM case. It has a supply voltage of 15V to 24V DC and an analog ouput of 0V to 10 V. This cylindrical ultrasonic distance sensor with analogue output, is mountable directly on a surface or bracket, thanks to its cylindrical thread and 2 fixing nuts. ULTEM® high strength case makes it ideal for high temperature environments. Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-20°C) and hot environments (+60°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.
XX930A3A1M12 key specifications
Key specifications: rated voltage 15 V; IP67; surface mounting.
Availability and replacement
Availability notice: Telemecanique Sensors has announced the end of commercialisation of this reference (announced 2021/12/15, last orders 2023/12/31). Stock may still be available; ask us to confirm, or to quote the current replacement.
Telemecanique Sensors names Telemecanique Sensors XX / XXS ultrasonic sensors as the successor to the OsiSense XX range. Schneider "End of commercialisation" here reflects the divestiture. Ask the sales desk to confirm the exact replacement reference before ordering.
Ordering information for XX930A3A1M12
- Order code:
XX930A3A1M12 - Manufacturer: Telemecanique Sensors (formerly Telemecanique)
- Range: OsiSense XX
- GTIN / EAN: 3389110704143
- Supplied: each
- Weight: 0.19 kg
- ETIM class: EC001849
- Datasheet: manufacturer datasheet for XX930A3A1M12
About the OsiSense XX range
OsiSense XX is a Telemecanique Sensors range with 47 references listed on RMS-SE.Africa. It spans Ultrasonic Sensors, Contactors. Telemecanique Sensors has announced Telemecanique Sensors XX / XXS ultrasonic sensors as its successor.
XX930A3A1M12 — frequently asked questions
Is XX930A3A1M12 discontinued, and what replaces it?
Yes. Telemecanique Sensors has announced the end of commercialisation of XX930A3A1M12 (last orders 2023/12/31). The named successor is Telemecanique Sensors XX / XXS ultrasonic sensors; the sales desk confirms the exact replacement reference and remaining stock.
Where is the datasheet for XX930A3A1M12?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Telemecanique Sensors publishes them.
Is XX930A3A1M12 a genuine Telemecanique Sensors product?
Yes. XX930A3A1M12 is supplied through the manufacturer’s authorised channel with the standard Telemecanique Sensors warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | XX930A3A1M12 – Ultrasonic sensors XX, ultrasonic sensor cylindrical M30, Sn 8 m, M12 connector Telemecanique Sensors |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by OsiSense XX |
| GTIN / EAN | 3389110704143 |
| Lifecycle status | Filter products by End of commercialisation announced |
| ETIM class | Filter products by EC001849 |
Electrical ratings
| Rated voltage (Ue) | Filter products by 15 V |
|---|---|
| Operating Voltage | Filter products by 15V |
Mechanical & mounting
| Mounting | Filter products by surface |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP67 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| SKU/Code/Partnumber | XX930A3A1M12 |
|---|---|
| Iternational GTIN | 3389110704143 |
| Mount Type | Filter products by Surface Mount |
