Telemecanique SensorsSafety Light Curtains
XUSL4E30H076N – Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Std sensing range, Hp = 760 mm, R=30 mm Telemecanique Sensors
Order code
R51 916.76
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Std sensing range, Hp = 760 mm, R=30 mm — Telemecanique Sensors order code XUSL4E30H076N.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
XUSL4E30H076N — Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Std sensing range, Hp = 760 mm, R=30 mm from the Telemecanique Sensors Preventa XU range.
This XUSL4E Type 4 Safety Light Curtain is designed for hand detection of operator in the vicinity of hazardous machinery. Its transmitter-receiver system creates 38 light beams with a protected height of 760mm. Its PFHD reliability data is 1.19 x 10⁻⁸. It has an aluminum case and its integral LEDs offer a local Signaling for clearly display of device's status. It can be used as standalone sensor (i.e without safety control unit) or in association with an appropriate safety control unit. It has 2 NO Solid State PNP safety outputs (OSSDs) and meets the requirements of category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508 and Type 4 in compliance with EN/IEC 61496-1, EN/IEC 61496-2. Its operating temperature range is -30°C to +55°C and the sensing distance is 0m to 4m or 0m to 12m selectable by wiring.
Ordering information
- Order code:
XUSL4E30H076N - Manufacturer: Telemecanique Sensors
- Range: Preventa XU
- GTIN / EAN: 3389119618359
- Supplied: each
- Weight: 2.782 kg
- ETIM class: EC002549
- Datasheet: manufacturer datasheet for XUSL4E30H076N
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Other specifications
| Related Categories | Filter products by Uncategorized |
|---|---|
| SKU/Code/Partnumber | Filter products by XUSL4E30H076N |
| Iternational GTIN | Filter products by 3389119618359 |
More in the Preventa XU range
Same series, same mounting and the same documentation set.
- XUSL4E30H136NSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Std sensing range, Hp = 1360 mm, R=30 mm Telemecanique SensorsR79 038.71View product
- XUSL4E30H121NSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Std sensing range, Hp = 1210 mm, R=30 mm Telemecanique SensorsR72 106.63View product
XUSL4E30H121LSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Long sensing range, Hp = 1210 mm, R=30 mm Telemecanique SensorsR87 970.08View product
XUSL4E30H106NMSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Master for hand protection, Hp = 1060 mm, R=30 mm TelemecaniqueR79 317.28View product- XUSL4E30H106NSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Std sensing range, Hp = 1060 mm, R=30 mm Telemecanique SensorsR64 895.96View product
XUSL4E30H106LWCSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Hand IP69K w/o Heating, Long Sensing Range, Hp = 1060 mm, R=30 mm TelemecaniqueR129 791.92View product- XUSL4E30H091NSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Std sensing range, Hp = 910 mm, R=30 mm Telemecanique SensorsR59 127.43View product
- XUSL4E30H076LSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Long sensing range, Hp = 760 mm, R=30 mm Telemecanique SensorsR70 664.49View product
Similar items
- XUSL4E14F076NSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 760 mm, R=14 mm Telemecanique SensorsR49 032.50View product
- XUSL4E30H061NSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Std sensing range, Hp = 610 mm, R=30 mm Telemecanique SensorsR46 148.24View product
- XUSL4E14F091NSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 910 mm, R=14 mm Telemecanique SensorsR57 685.29View product
- XUSL4E2BB051LWCSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Body IP69K w/o Heating, Long Sensing Range 510 mm TelemecaniqueR60 472.67View product
- XUSL4E14F061NSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 610 mm, R=14 mm Telemecanique SensorsR43 263.97View product
- XUSL4E30H061LSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Long sensing range, Hp = 610 mm, R=30 mm Telemecanique SensorsR60 569.56View product
- XUSL4E30H046NSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Std sensing range, Hp = 460 mm, R=30 mm Telemecanique SensorsR41 100.78View product
More in Safety Light Curtains
- XUSL4E14F121NSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 1210 mm, R=14 mm Telemecanique SensorsR72 106.63View product
- XUSL4E14F106NSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 1060 mm, R=14 mm Telemecanique SensorsR64 895.96View product
- XUSL4E14F046NSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 460 mm, R=14 mm Telemecanique SensorsR35 476.46View product
- XUSL4E14F031NSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 310 mm, R=14 mm Telemecanique SensorsR37 495.44View product
- XUSL2E4BB091NSafety light curtain type 2, Telemecanique Safety light curtains XUSL, XUSL For body protection, 4 Beams, Hp = 910 mm Telemecanique SensorsR26 679.45View product
- XUSL2E3BB081NSafety light curtain type 2, Telemecanique Safety light curtains XUSL, XUSL For body protection, 3 Beams, Hp = 810 mm Telemecanique SensorsR22 785.69View product
- XUSL2E30H121NSafety light curtain type 2, Telemecanique Safety light curtains XUSL, XUSL Hand protection, Std sensing range, Hp = 1210 mm, R=30 mm Telemecanique SensorsR40 379.71View product

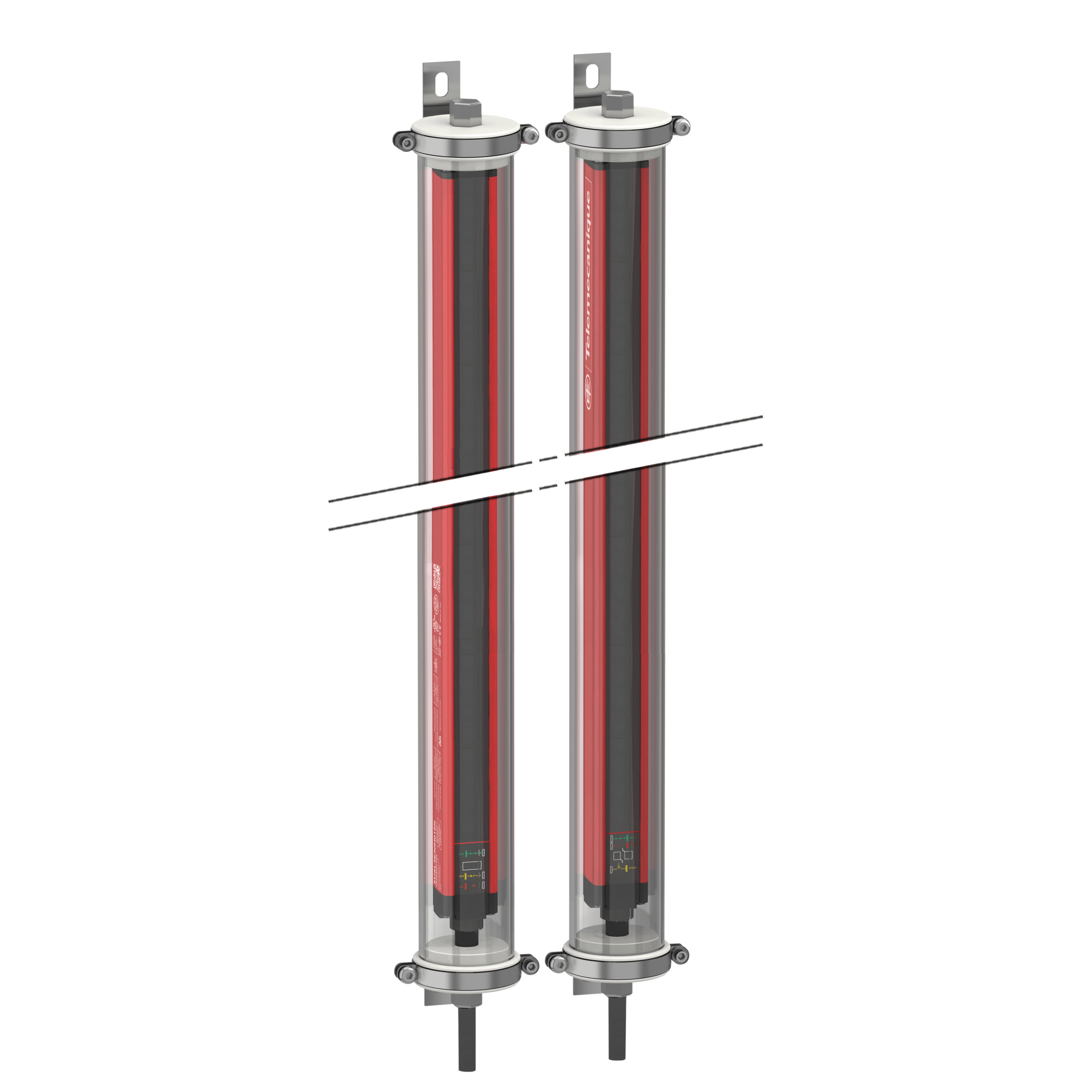

XUSL2E30H106NWCSafety light curtain type 2, Telemecanique Safety light curtains XUSL, XUSL IP69K Hand protection w/o Heating, Std range, Hp = 1060 mm, R=30 mm TelemecaniqueR83 643.69View product
