Schneider ElectricInductive & Capacitive Sensors

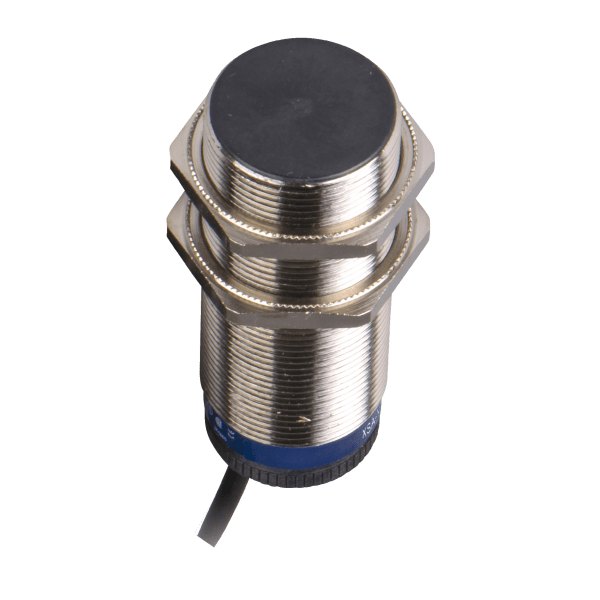

XSAV11373 – Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 6…150c/mn, 12…48 VDC, cable 2 m | Telemecanique Sensors
Order code
List R5 477.12 Your price R3 724.44
Per unit · volume pricing available on request
excl. VAT R4 283.11 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 6…150c/mn, 12…48 VDC, cable 2 m — Telemecanique Sensors order code XSAV11373. Rated voltage 48 V DC; ambient +150 °C; flush mounting.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
XSAV11373 — Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 6…150c/mn, 12…48 VDC, cable 2 m from the Telemecanique Sensors Osisense XS & XT range. Listed under Inductive & Capacitive Sensors on the Telemecanique Sensors catalogue at RMS-SE.Africa.
About XSAV11373
This cylindrical diameter 30 mm threaded M30 x 1.5 flush mountable sensor is part of XS range, an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected, thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products). It features a nickel plated brass case and a 2m long cable. It has a sensing distance of 10mm, three-wire, DC supply, 12V to 48V, NO function, PNP solid state output. These self-contained rotation speed monitoring sensors have the special feature of incorporating, in the same case, the pulse sensing and processing electronics as well as the output switching amplifier. that are required to establish an integrated rotation monitoring device. The unit provides an economical solution for detecting slip, belt breakage, drive shaft shear and overloading, etc. In the following applications, conveyor belts, bucket elevators, Archemedian screws, grinders, crushers, pumps, centrifugal driers, mixers, etc.
XSAV11373 key specifications
Key specifications: rated voltage 48 V DC; ambient +150 °C; flush mounting.
Ordering information for XSAV11373
- Order code:
XSAV11373 - Manufacturer: Telemecanique Sensors (formerly Telemecanique)
- Range: Osisense XS & XT
- GTIN / EAN: 3389110628944
- Supplied: each
- Weight: 0.23 kg
- ETIM class: EC002714
- Datasheet: manufacturer datasheet for XSAV11373
About the Osisense XS & XT range
Osisense XS & XT is a Telemecanique Sensors range with 394 references listed on RMS-SE.Africa, from 4 A to 16 A.
XSAV11373 — frequently asked questions
Where is the datasheet for XSAV11373?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Telemecanique Sensors publishes them.
Is XSAV11373 a genuine Telemecanique Sensors product?
Yes. XSAV11373 is supplied through the manufacturer’s authorised channel with the standard Telemecanique Sensors warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | XSAV11373 – Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 6…150c/mn, 12…48 VDC, cable 2 m Telemecanique Sensors |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Osisense XS & XT |
| GTIN / EAN | 3389110628944 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC002714 |
Electrical ratings
| Rated voltage (Ue) | Filter products by 48 V DC |
|---|---|
| Operating Voltage | Filter products by 48 VDC |
Mechanical & mounting
| Mounting | Filter products by flush |
|---|
Environment & protection
| Ambient air temperature | Filter products by +150 °C |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| SKU/Code/Partnumber | XSAV11373 |
|---|---|
| Iternational GTIN | 3389110628944 |
| Mount Type | Filter products by Flush Mount |
