Schneider ElectricSafety Interlock Switches

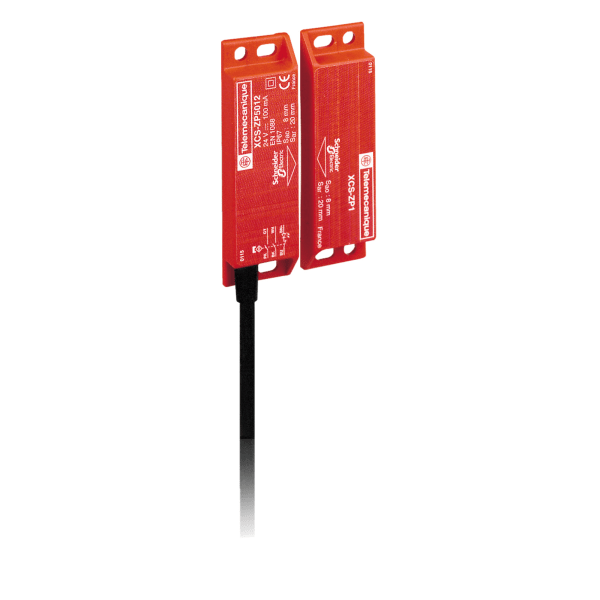

XCSDMP7905 – Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMP, 2 NC, staggered, 5 m | Telemecanique Sensors
Order code
List R2 502.84 Your price R1 701.93
Per unit · volume pricing available on request
excl. VAT R1 957.22 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMP, 2 NC, staggered, 5 m — Telemecanique Sensors order code XCSDMP7905. Rated voltage 24 V; IP66.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
XCSDMP7905 — Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMP, 2 NC, staggered, 5 m from the Telemecanique Sensors Preventa XCS range. Listed under Safety Interlock Switches on the Telemecanique Sensors catalogue at RMS-SE.Africa.
About XCSDMP7905
This product is part of the XCS range, an offer of safety switches. The coded magnetic switch is an electrical switch that makes or breaks contact in the presence of a magnetic field. It has 2 normally closed, staggered contacts. It is a switch with a rated operational current of 100mA, rated operational voltage of 24V DC, a switching capacity of 0.1 to 100mA and maximum switching voltage of 100V DC. It is designed to operate in hazardous environments. It is furnished with a 5m pre-cabled (4 x 0.25mm²) for electrical connection. It supports lateral approach in 3 directions. It offers long electrical life with electrical durability of about 1.2 million operating cycles. It is an IP66 and IP67 rated product. The casing is made of thermoplastic PBT. Its dimensions are 25mm (Width) x 13mm (Depth) x 88mm (Height) and weighs 0.18kg. It is intended as far as safety is concerned all dangerous machines in all sectors are involved. Such as packaging, handling, robotics, machine tools, presses, automotive sector. This product is certified by BG, CSA, UL. It meets.
XCSDMP7905 key specifications
Key specifications: rated voltage 24 V; IP66.
Ordering information for XCSDMP7905
- Order code:
XCSDMP7905 - Manufacturer: Telemecanique Sensors (formerly Telemecanique)
- Range: Preventa XCS
- GTIN / EAN: 3389119113021
- Supplied: each
- Weight: 0.262 kg
- ETIM class: EC002544
- Datasheet: manufacturer datasheet for XCSDMP7905
About the Preventa XCS range
Preventa XCS is a Telemecanique Sensors range with 161 references listed on RMS-SE.Africa, from 3 A to 55 A.
XCSDMP7905 — frequently asked questions
Where is the datasheet for XCSDMP7905?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Telemecanique Sensors publishes them.
Is XCSDMP7905 a genuine Telemecanique Sensors product?
Yes. XCSDMP7905 is supplied through the manufacturer’s authorised channel with the standard Telemecanique Sensors warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | XCSDMP7905 – Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMP, 2 NC, staggered, 5 m Telemecanique Sensors |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Preventa XCS |
| GTIN / EAN | 3389119113021 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC002544 |
Electrical ratings
| Rated voltage (Ue) | Filter products by 24 V |
|---|---|
| Operating Voltage | Filter products by 24V |
Environment & protection
| Degree of protection (IP) | Filter products by IP66 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Uncategorized |
|---|---|
| SKU/Code/Partnumber | Search products for XCSDMP7905 |
| Iternational GTIN | 3389119113021 |
