Key specifications
Rated current (Iu)	Filter products by 3 A
Rated voltage (Ue)	Filter products by 240 V
Degree of protection (IP)	Filter products by IP54
Product Series	Filter products by OsiSense XC Special
Mounting	Filter products by fixed

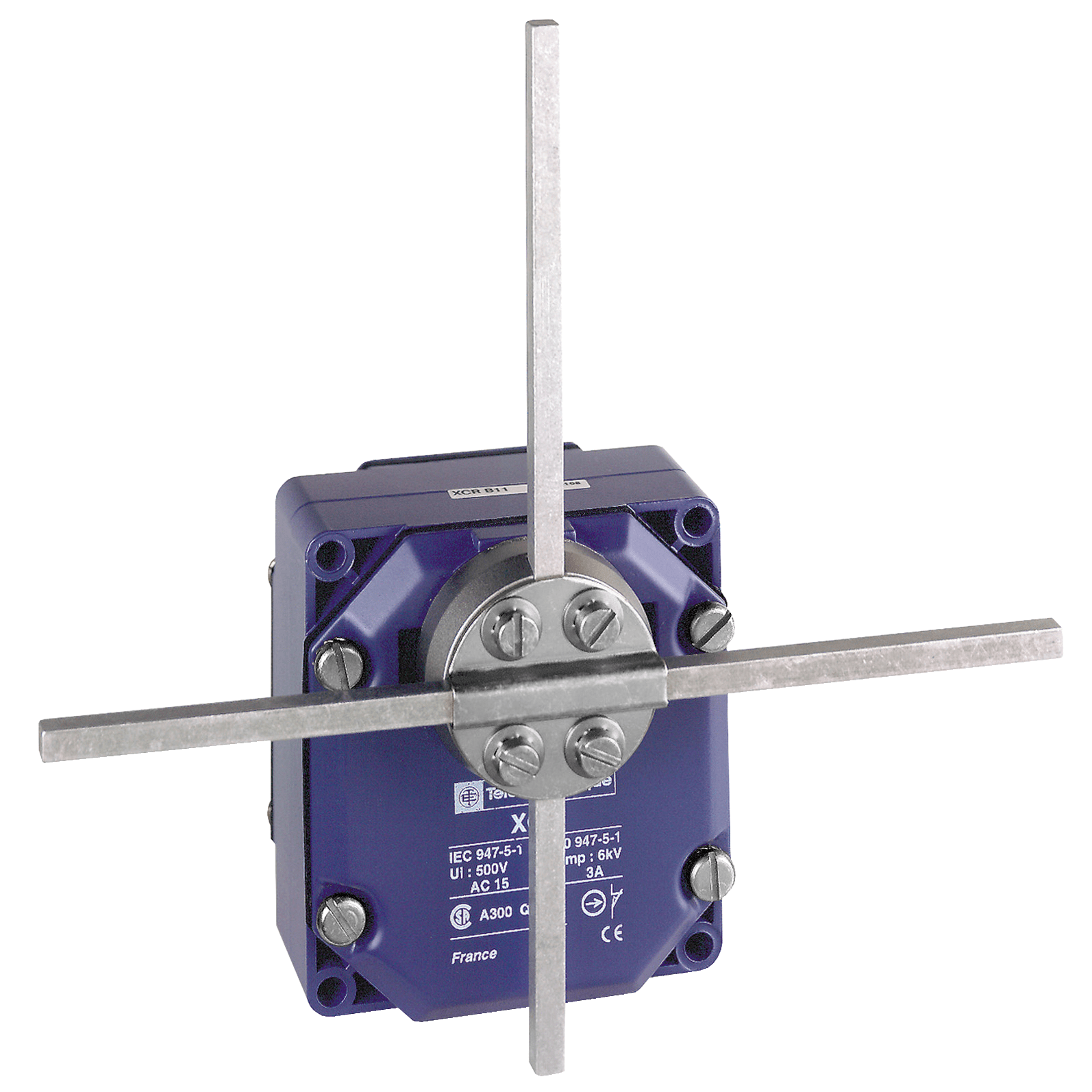

XCRE18 – Limit switch, Limit switches XC Standard, XCR, metal stay put crossed rods lever square rod 6 mm, 2X(1NC+NO) Telemecanique Sensors

Name: XCRE18 - Limit switch, Limit switches XC Standard, XCR, metal stay put crossed rods lever square rod 6 mm, 2X(1NC+NO) Telemecanique Sensors
Brand: Telemecanique
SKU: XCRE18
Price: 6330.97 ZAR
Availability: InStock

Order code

Select a variant in this series

Rating

3 A
10 A

Rated voltage

240 V
500 V
600 V

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

List price

R6 330.97

Excluding VAT · per unit · volume pricing available on request

Listed in stock — availability is re-confirmed on every order

Limit switch, Limit switches XC Standard, XCR, metal stay put crossed rods lever square rod 6 mm, 2X(1NC+NO) — Telemecanique Sensors order code XCRE18. Rated current 3 A; rated voltage 240 V; IP54; fixed mounting.

Find documents for this part

Ordering & delivery

Contact us for bulk pricing, lead times and ordering codes.
Minimum order: 1 unit.
Manufacturer's standard warranty applies.
Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.

Authorised Schneider Electric distributor
Genuine product with manufacturer warranty
Formal quotations with written lead times

Overview

XCRE18 — Limit switch, Limit switches XC Standard, XCR, metal stay put crossed rods lever square rod 6 mm, 2X(1NC+NO) from the Telemecanique Sensors OsiSense XC Special range.

This product is part of the XC Special range, an offer of limit switches. The limit switch is a device that converts a mechanical motion into an electrical control signal. It has four pole, 2 (1 normally closed + 1 normally opened), snap action contacts with positive opening operation. It is a safety switch with a rated operational current of 3A at 240V, 0.27A at 250V. It is furnished with screw clamp terminals for electrical connection. It is an IP54 rated product. It offers long mechanical and electrical life, the mechanical durability of about 10 million operating cycles and electrical durability of about 5 million operating cycles. This rotary head limit switch has a fixed type body which is made of zinc alloy. Its dimensions are 85mm (width) x 75mm (depth) x 95mm (height) and weighs 1.135kg. It is suitable for hoisting handling, mining minerals metals and all others strong environmental constraints (foundry, welding automotive industries) applications etc. This product is certified by CSA and CCC. It complies with NF C 79-130, IEC 60947-5-1, IEC 60204-1, EN 60947-5-1, EN 60204-1 and.

Key specifications: rated current 3 A; rated voltage 240 V; IP54; fixed mounting.

Ordering information

Order code: XCRE18
Manufacturer: Telemecanique Sensors (formerly Telemecanique)
Range: OsiSense XC Special
GTIN / EAN: 3389110652185
Supplied: each
Weight: 1.05 kg
ETIM class: EC000030
Datasheet: manufacturer datasheet for XCRE18

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Product Name	Filter products by XCRE18 – Limit switch, Limit switches XC Standard, XCR, metal stay put crossed rods lever square rod 6 mm, 2X(1NC+NO) Telemecanique Sensors
Brand	Filter products by Schneider Electric
Product Series	Filter products by OsiSense XC Special
GTIN / EAN	Filter products by 3389110652185
Lifecycle status	Filter products by Current
ETIM class	Filter products by EC000030

Electrical ratings

Rated current (Iu)	Filter products by 3 A
Rated voltage (Ue)	Filter products by 240 V
Operating Voltage	Filter products by 240V

Mechanical & mounting

Mounting	Filter products by fixed

Environment & protection

Degree of protection (IP)	Filter products by IP54

Other specifications

SKU/Code/Partnumber	Filter products by XCRE18
Iternational GTIN	Filter products by 3389110652185

More in the OsiSense XC Special range 4

Same series, same mounting and the same documentation set.

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Category browseBrowse comparable Limit Switches at RMS-ABB.Africa (opens in a new tab)
A category listing, not a confirmed equivalent. Ask us to confirm a match before ordering.
Category browseBrowse comparable Limit Switches at RMS-EM.Africa (opens in a new tab)
A category listing, not a confirmed equivalent. Ask us to confirm a match before ordering.

Quick answers

What is XCRE18?

XCRE18 is the order code for Limit switch, Limit switches XC Standard, XCR, metal stay put crossed rods lever square rod 6 mm, 2X(1NC+NO). It belongs to our Limit Switches range. RMS-SE.Africa supplies it as genuine Schneider Electric product, sourced through the manufacturer's distribution channel.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
