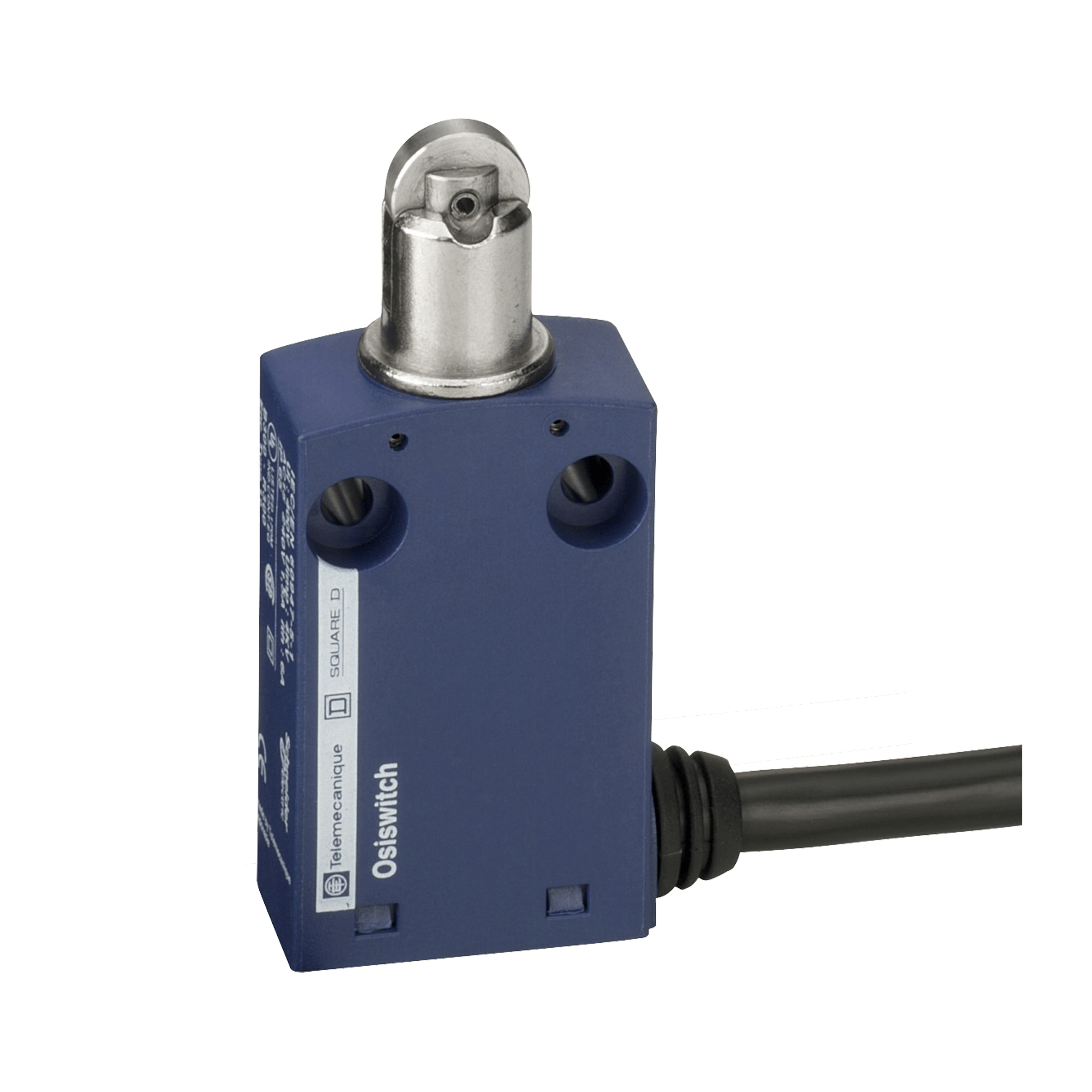

XCMN2102L3 – Limit switch, Limit switches XC Standard, XCMN, steel roller plunger, 1NC+1 NO, snap, 3 m | Telemecanique Sensors
Order code
List R1 318.12 Your price R896.32
Per unit · volume pricing available on request
excl. VAT R1 030.77 incl.
Discontinued — remaining stock confirmed on quote
Limit switch, Limit switches XC Standard, XCMN, steel roller plunger, 1NC+1 NO, snap, 3 m — Telemecanique Sensors order code XCMN2102L3. Rated current 5 A; rated voltage 240 V; IP65; fixed mounting.
Discontinued — remaining stock confirmed on quote
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
XCMN2102L3 — Limit switch, Limit switches XC Standard, XCMN, steel roller plunger, 1NC+1 NO, snap, 3 m from the Telemecanique Sensors OsiSense XC Standard range. Listed under Limit Switches on the Telemecanique Sensors catalogue at RMS-SE.Africa.
About XCMN2102L3
This product is part of the XC Standard range, an offer of limit switches. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 NC and 1 NO, form Zb, snap action contacts. It provides switch actuation of 30° cam. The limit switch has a spring return metal roller plunger and supports the lateral approach in 2 directions. The movement of operating head is linear. It is a limit switch with a rated operating current of 1.5A at 240V AC and 0.1A at 250V DC. It is furnished with fixed cable for electrical connection. It is an IP65 and IK04 rated product. This plunger head limit switch has a fixed body, made of plastic. Its dimensions are 30mm (width) x 16mm (depth) x 70.4mm (height). It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. This product is certified by CCC, CSA and UL. It meets IEC 60204-1, UL 508, EN 60947-5-1, EN 60204-1.
XCMN2102L3 key specifications
Key specifications: rated current 5 A; rated voltage 240 V; IP65; fixed mounting.
Ordering information for XCMN2102L3
- Order code:
XCMN2102L3 - Manufacturer: Telemecanique Sensors (formerly Telemecanique)
- Range: OsiSense XC Standard
- GTIN / EAN: 3389110921069
- Supplied: each
- Weight: 0.246 kg
- ETIM class: EC000030
- Datasheet: manufacturer datasheet for XCMN2102L3
About the OsiSense XC Standard range
OsiSense XC Standard is a Telemecanique Sensors range with 328 references listed on RMS-SE.Africa, from 1 A to 75 A.
XCMN2102L3 — frequently asked questions
What is the rated current of XCMN2102L3?
XCMN2102L3 is rated 5 A.
Where is the datasheet for XCMN2102L3?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Telemecanique Sensors publishes them.
Is XCMN2102L3 a genuine Telemecanique Sensors product?
Yes. XCMN2102L3 is supplied through the manufacturer’s authorised channel with the standard Telemecanique Sensors warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | XCMN2102L3 – Limit switch, Limit switches XC Standard, XCMN, steel roller plunger, 1NC+1 NO, snap, 3 m Telemecanique Sensors |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by OsiSense XC Standard |
| GTIN / EAN | 3389110921069 |
| Lifecycle status | Filter products by Discontinued |
| ETIM class | Filter products by EC000030 |
Electrical ratings
| Rated current (Iu) | Filter products by 5 A |
|---|---|
| Rated voltage (Ue) | Filter products by 240 V |
| Operating Voltage | Filter products by 240V |
Mechanical & mounting
| Mounting | Filter products by fixed |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP65 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Discontinued on | Filter products by 2024-12-30 |
|---|---|
| SKU/Code/Partnumber | XCMN2102L3 |
| Iternational GTIN | 3389110921069 |
