Schneider ElectricLimit Switches

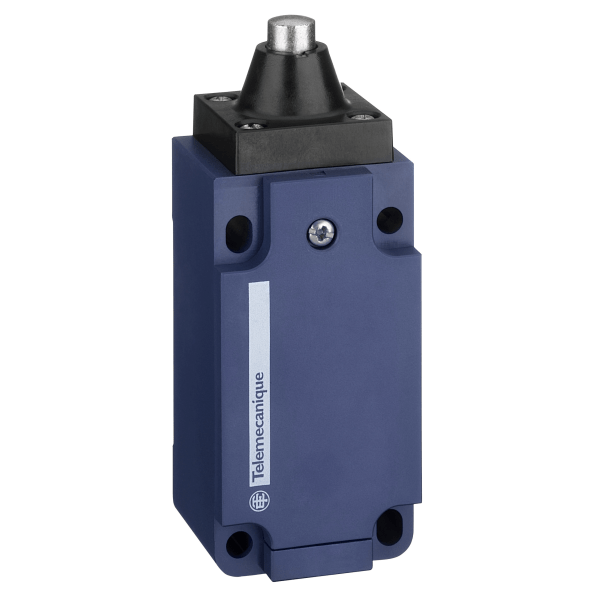

XCKS101H29 – Limit switch, Limit switches XC Standard, XCKS, metal end plunger, 1NC+1 NO, snap action, M20 | Telemecanique Sensors
Order code
List R1 168.14 Your price R794.34
Per unit · volume pricing available on request
excl. VAT R913.49 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Limit switch, Limit switches XC Standard, XCKS, metal end plunger, 1NC+1 NO, snap action, M20 — Telemecanique Sensors order code XCKS101H29. Rated current 10 A; rated voltage 240 V; IP66; fixed mounting.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
XCKS101H29 — Limit switch, Limit switches XC Standard, XCKS, metal end plunger, 1NC+1 NO, snap action, M20 from the Telemecanique Sensors OsiSense XC Standard range. Listed under Limit Switches on the Telemecanique Sensors catalogue at RMS-SE.Africa.
About XCKS101H29
This product is part of the XC Standard range, an offer of limit switches. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 NC and 1 NO, form Zb, snap action contacts. It provides switch actuation of an end. The limit switch has a spring return metal plunger and supports the vertical approach in 1 direction. The movement of operating head is linear. It is a limit switch with a conventional enclosed thermal current of 10A and rated operating current of 3A at 240V AC and 0.27A at 250V DC. It is furnished with screw clamp terminals for electrical connection. It is an IP66/IP67 and IK05 rated product. This plunger head limit switch has a fixed body, made of plastic. Its dimensions are 40mm (width) x 37mm (depth) x 104mm (height). It weighs 0.125kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. This product is certified by CCC, CSA and UL. It meets IEC 60204-1, UL 508, EN 60947-5-1, EN 60204-1.
XCKS101H29 key specifications
Key specifications: rated current 10 A; rated voltage 240 V; IP66; fixed mounting.
Ordering information for XCKS101H29
- Order code:
XCKS101H29 - Manufacturer: Telemecanique Sensors (formerly Telemecanique)
- Range: OsiSense XC Standard
- GTIN / EAN: 3389110514537
- Supplied: each
- Weight: 0.143 kg
- ETIM class: EC000030
- Datasheet: manufacturer datasheet for XCKS101H29
About the OsiSense XC Standard range
OsiSense XC Standard is a Telemecanique Sensors range with 328 references listed on RMS-SE.Africa, from 1 A to 75 A.
XCKS101H29 — frequently asked questions
What is the rated current of XCKS101H29?
XCKS101H29 is rated 10 A.
Where is the datasheet for XCKS101H29?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Telemecanique Sensors publishes them.
Is XCKS101H29 a genuine Telemecanique Sensors product?
Yes. XCKS101H29 is supplied through the manufacturer’s authorised channel with the standard Telemecanique Sensors warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | XCKS101H29 – Limit switch, Limit switches XC Standard, XCKS, metal end plunger, 1NC+1 NO, snap action, M20 Telemecanique Sensors |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by OsiSense XC Standard |
| GTIN / EAN | 3389110514537 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000030 |
Electrical ratings
| Rated current (Iu) | Filter products by 10 A |
|---|---|
| Rated voltage (Ue) | Filter products by 240 V |
| Operating Voltage | Filter products by 240V |
Mechanical & mounting
| Mounting | Filter products by fixed |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP66 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| SKU/Code/Partnumber | XCKS101H29 |
|---|---|
| Iternational GTIN | 3389110514537 |
