Schneider ElectricPilot Lights
XB4FVM4 – Harmony XB4, Pilot light flush mounted, metal, red, Ø30, plain lens with integral LED, 230…240 V AC Schneider Electric
Order code
R650.42
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Harmony XB4, Pilot light flush mounted, metal, red, Ø30, plain lens with integral LED, 230…240 V AC — Schneider Electric order code XB4FVM4. Rated voltage 240 V; IP66; flush mounting.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
XB4FVM4 — Harmony XB4, Pilot light flush mounted, metal, red, Ø30, plain lens with integral LED, 230…240 V AC by Schneider Electric.
This flush mounted pilot light is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 230 V to 240 V AC. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. It has a plain lens and the source of light is an integral LED. The bright and long-lasting illumination makes it clearly distinguishable even at a disctance. The connection terminal is screw clamp. The shape of the head is round and red. The bezel is chromium plated and the fixing collar is zamak. The weight of this pilot light is 112 grams, height and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton.
Key specifications: rated voltage 240 V; IP66; flush mounting.
Ordering information
- Order code:
XB4FVM4 - Manufacturer: Schneider Electric
- Range: Harmony XB4
- GTIN / EAN: 3606489580605
- Supplied: each
- Weight: 0.109 kg
- ETIM class: EC000272
- Datasheet: manufacturer datasheet for XB4FVM4
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Rated voltage (Ue) | Filter products by 240 V |
|---|
Mechanical & mounting
| Mounting | Filter products by flush |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP66 |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays, Filter products by Pilot Lights |
|---|---|
| SKU/Code/Partnumber | Filter products by XB4FVM4 |
| Iternational GTIN | Filter products by 3606489580605 |
| Mount Type | Filter products by Flush Mount |
More in the Harmony XB4 range
Same series, same mounting and the same documentation set.
XB4FVM6Harmony XB4, Pilot light flush mounted, metal, blue, Ø30, plain lens with integral LED, 230…240 V AC Schneider ElectricR650.42View product
XB4FVM5Harmony XB4, Pilot light flush mounted, metal, orange, Ø30, plain lens with integral LED, 230…240 V AC Schneider ElectricR650.42View product
XB4FVM3Harmony XB4, Pilot light flush mounted, metal, green, Ø30, plain lens with integral LED, 230…240 V AC Schneider ElectricR650.42View product- XB4FVM1Harmony XB4, Pilot light flush mounted, metal, white, Ø30, plain lens with integral LED, 230…240 V AC Schneider ElectricR536.49View product
XB4FVG5Harmony XB4, Pilot light flush mounted, metal, orange, Ø30, plain lens with integral LED, 110…120 V AC Schneider ElectricR536.49View product
XB4FVG4Harmony XB4, Pilot light flush mounted, metal, red, Ø30, plain lens with integral LED, 110…120 V AC Schneider ElectricR536.49View product
XB4FVG3Harmony XB4, Pilot light flush mounted, metal, green, Ø30, plain lens with integral LED, 110…120 V AC Schneider ElectricR536.49View product

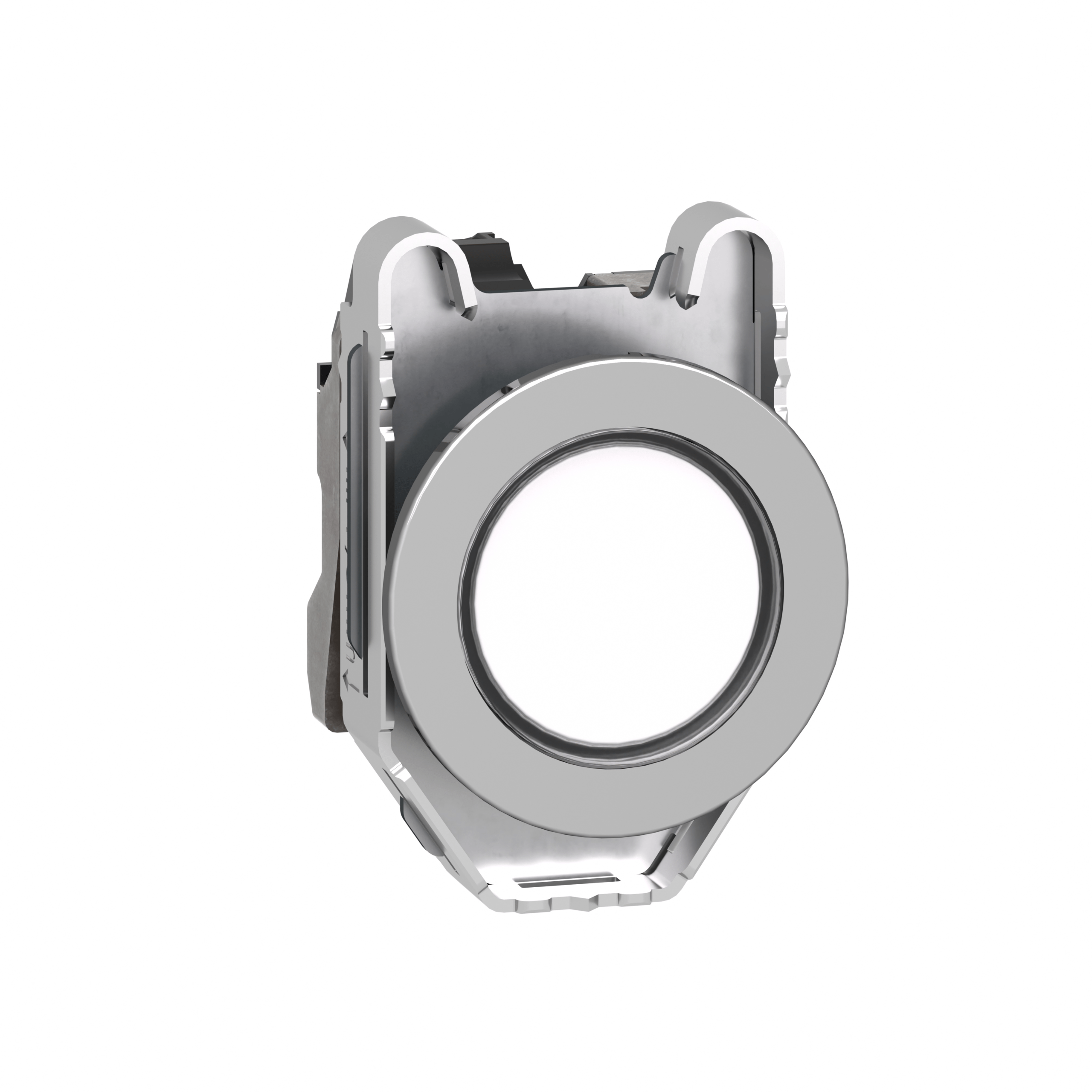

XB4FVG1Harmony XB4, Pilot light flush mounted, metal, white, Ø30, plain lens with integral LED, 110…120 V AC Schneider ElectricR536.49View product
