About XB4FG03

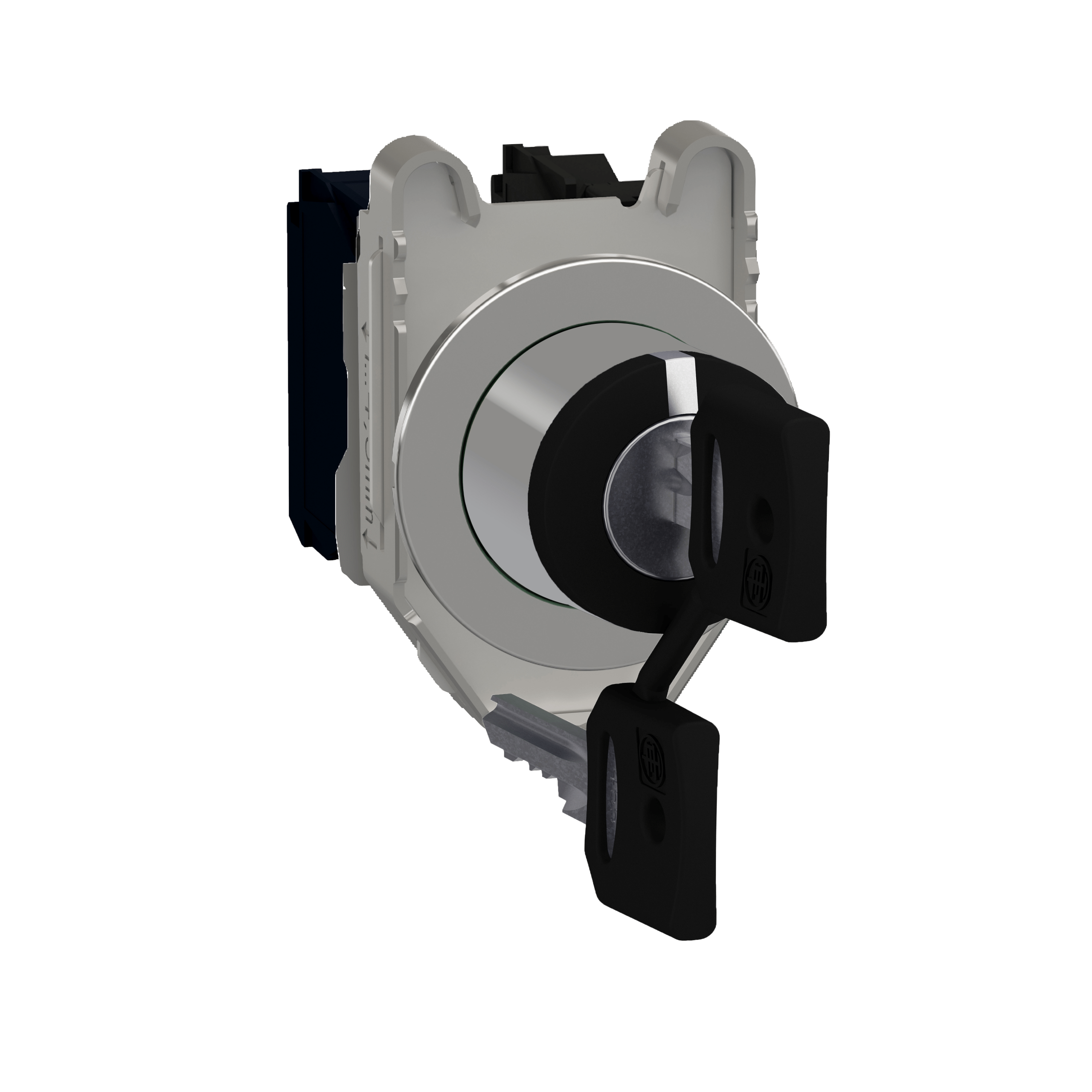

This flush mounted key switch is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this key switch addresses the market demands for ergonomic and aesthetics. This black key switch is compatible with key number 455 and supports 3 positions ± 45 degree stay put. The contact type is 2NO slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is chromium plated and the fixing collar is zamak. The weight of this key switch is 127 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this key switch.

XB4FG03 key specifications

Key specifications: IP66; flush mounting.

Ordering information for XB4FG03

• Order code: XB4FG03
• Manufacturer: Schneider Electric
• Range: Harmony XB4
• GTIN / EAN: 3606489580209
• Supplied: each
• Weight: 0.19 kg
• ETIM class: EC001029
• Datasheet: manufacturer datasheet for XB4FG03

About the Harmony XB4 range

Harmony XB4 is a Schneider Electric range with 809 references listed on RMS-SE.Africa, from 6 A to 3131 A. It spans Pushbuttons & Selector Switches, Pilot Lights, Signal Towers & Stack Lights.

XB4FG03 — frequently asked questions

Where is the datasheet for XB4FG03?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.

Is XB4FG03 a genuine Schneider Electric product?

Yes. XB4FG03 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
