Schneider ElectricPower Factor Correction

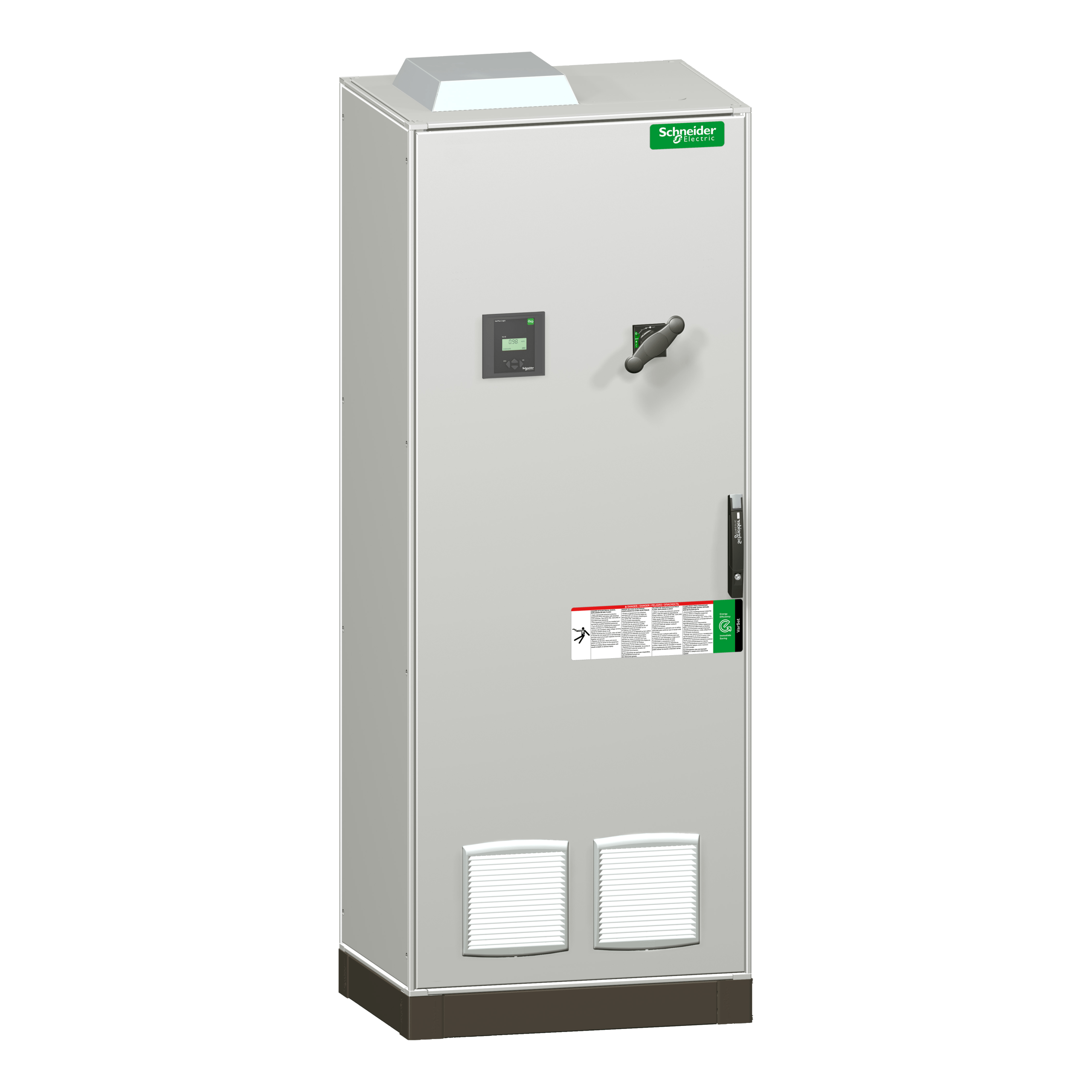

VLVAF5N03517AB – VarSet capacitor bank Auto 350kvar xxB 400V 50Hz Schneider Electric
Order code
Select a variant in this series
- 400 V
- 415 V
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
R228 549.30
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
VarSet capacitor bank Auto 350kvar xxB 400V 50Hz — Schneider Electric order code VLVAF5N03517AB. Rated voltage 400 V; 50 Hz; IP31.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
VLVAF5N03517AB — VarSet capacitor bank Auto 350kvar xxB 400V 50Hz, a power factor correction from the Schneider Electric VarSet LV range.
Low voltage power factor correction solution, from VarSet family, helps to eliminate utility penalties. To do energy savings, to lower capital costs, and to reduce CO² emissions by the reactive power compensation of inductive loads. This hardware is compatible with power management software to take advantage of the IoT digital power installation and allow a seemless integration to EcoStruxture Power. Smart monitoring and measurement features are available to secure operations. To optimize perfomance and maintenance, across a broad range of applications, commercial or industrial. This capacitor bank version, suitable for network voltage 400 to 415V 50Hz is providing a reactive power up to 350kvar. The compensation is automatically adjusted by the Power factor controller from VarplusLogic family. It is designed for network harmonic voltage up to 4% or network harmonic current up to 10%, network defined as a low polluted harmonic network. VarSet range is certified to CE, IEC 61921, IEC 61439 part 1 & IEC61439 part 2. It is embedding high life expectancy capacitors from Varplus family designed as per IEC831 part 1 and IEC831 part 2. And include a smart controller with modbus communication RS485. The enclosure RAL7035 is a floor standing type with a bottom entry incoming connection.
Key specifications: rated voltage 400 V; 50 Hz; IP31.
Ordering information
- Order code:
VLVAF5N03517AB - Manufacturer: Schneider Electric
- Range: VarSet LV
- GTIN / EAN: 3606480598272
- Supplied: each
- Weight: 294 kg
- ETIM class: EC002758
- Datasheet: manufacturer datasheet for VLVAF5N03517AB
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by VLVAF5N03517AB – VarSet capacitor bank Auto 350kvar xxB 400V 50Hz Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by VarSet LV |
| GTIN / EAN | Filter products by 3606480598272 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC002758 |
Electrical ratings
| Rated voltage (Ue) | Filter products by 400 V |
|---|---|
| Operating Voltage | Filter products by 400V |
| Rated Frequency | Filter products by 50 Hz |
Environment & protection
| Degree of protection (IP) | Filter products by IP31 |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction, Filter products by Power Factor Racks & Systems |
|---|---|
| SKU/Code/Partnumber | Filter products by VLVAF5N03517AB |
| Iternational GTIN | Filter products by 3606480598272 |
| Mount Type | Filter products by Rack Mount |
More in the VarSet LV range
Same series, same mounting and the same documentation set.
VLVAW3N03514AAVarSet capacitor bank Auto 250kvar with incomer CB xxB 400V 50HzR154 090.36View product- VLVAW3N03513AAVarSet capacitor bank Auto 225kvar with incomer CB xxB 400V 50HzR154 365.23View product
VLVAW2N03531AAVarSet capacitor bank Auto 137,5kvar with incomer CB xxB 400V 50HzR131 888.06View product- VLVAW2N03509AAVarSet capacitor bank Auto 125kvar with incomer CB xxB 400V 50HzR123 500.79View product

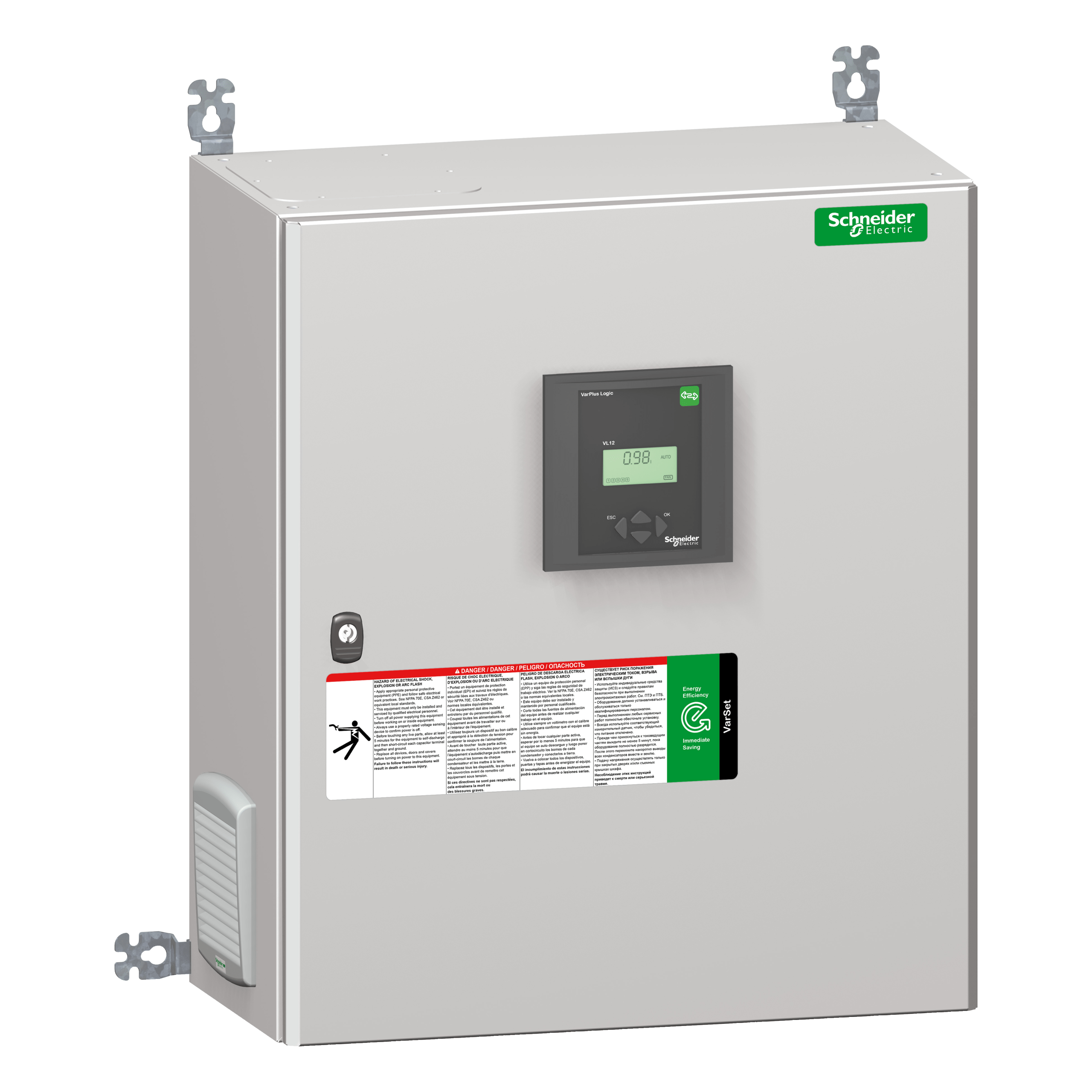

VLVAW1N03530AAVarSet capacitor bank Auto 87,5kvar with incomer CB xxB 400V 50HzR78 068.40View product- VLVAW1N03529AAVarSet capacitor bank Auto 069kvar with incomer CB xxB 400V 50HzR75 807.98View product
- VLVAW1N03528AAVarSet capacitor bank Auto 37,5kvar with incomer CB xxB 400V 50HzR71 160.98View product
- VLVAW1N03508AAVarSet capacitor bank Auto 100kvar with incomer CB xxB 400V 50HzR74 536.40View product
Similar items

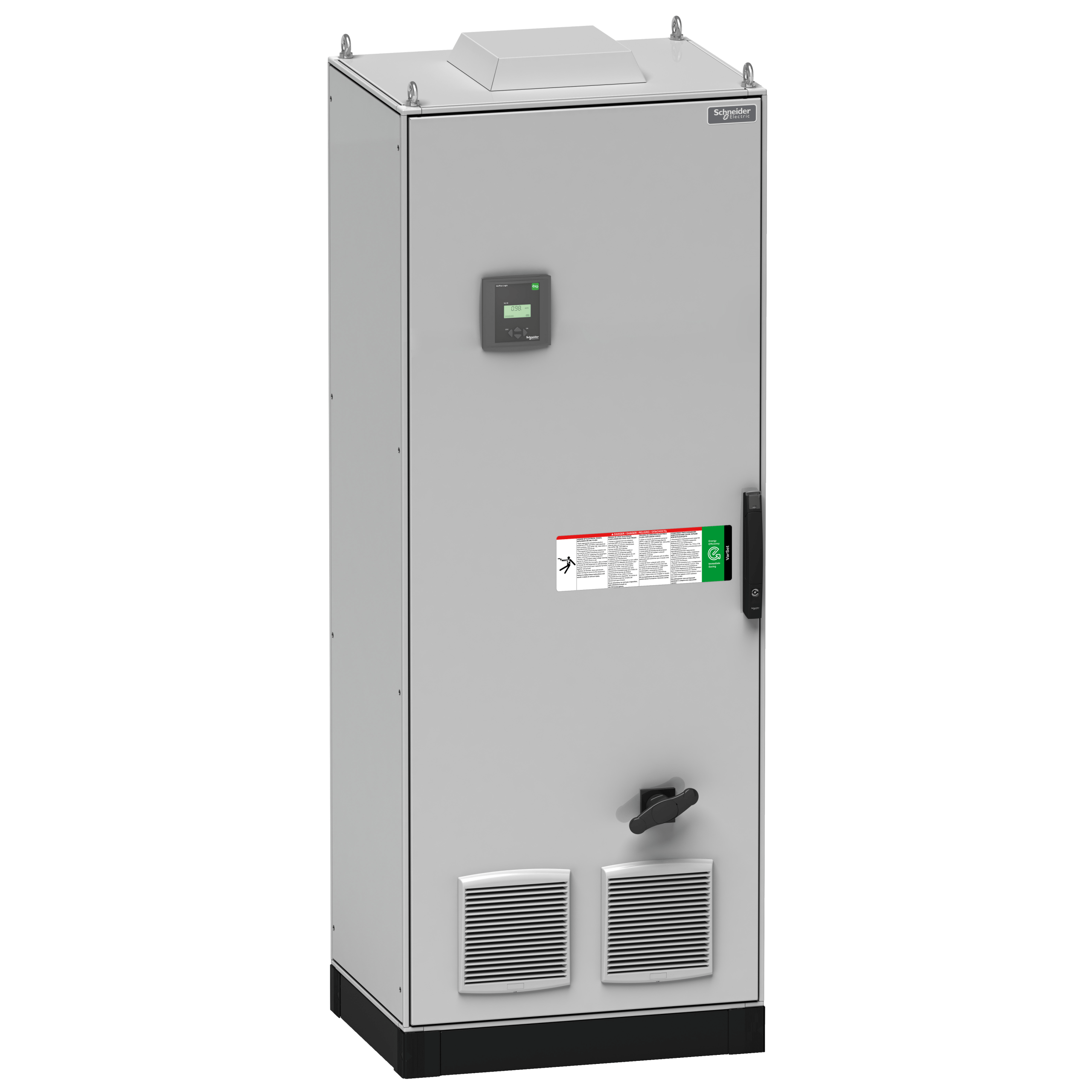

VLVAF5L500A40BCapacitor Bank VarSet Easy 500K Auto Schneider ElectricR246 908.53View product- VLVAF5N03517AAVarSet capacitor bank Auto 350kvar with incomer CB xxB 400V 50HzR269 187.67View product
