Schneider ElectricLoad Break / Changeover Switches
VCCF5 – TeSys Vario – emergency stop switch disconnector – 125 A – back of enclosure | Schneider Electric
Order code
List R1 877.00 Your price R1 276.36
Per unit · volume pricing available on request
excl. VAT R1 467.81 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
TeSys Vario – emergency stop switch disconnector – 125 A – back of enclosure — Schneider Electric order code VCCF5. Rated current 125 A; rated voltage 690 V; IP65.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Rated voltage690 V2 options
- 400 V
- 690 V
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
VCCF5 — TeSys Vario – emergency stop switch disconnector – 125 A – back of enclosure from the Schneider Electric TeSys Mini-Vario, VARIO range. Listed under Load Break & Changeover Switches on the Schneider Electric catalogue at RMS-SE.Africa.
About VCCF5

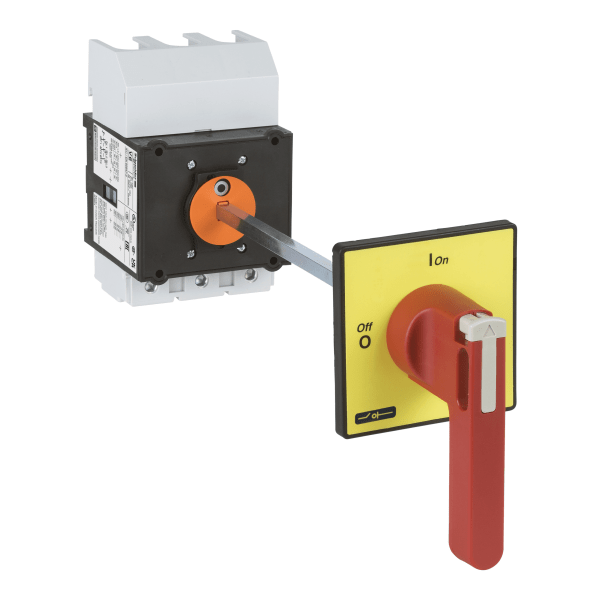

TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 125A/690V, for motor switching applications up to 37kW@400V AC-23. Complete unit composed of a switch body V5, an extension shaft VZN18, a door interlock plate KZ74, a red handle with yellow 90x90mm front plate KCF3PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Possible distance between back of enclosure and door 330-350mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
VCCF5 key specifications
Key specifications: rated current 125 A; rated voltage 690 V; IP65.
Ordering information for VCCF5
- Order code:
VCCF5 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys Mini-Vario, VARIO
- GTIN / EAN: 3389110804652
- Supplied: each
- Weight: 1.269 kg
- ETIM class: EC000216
- Datasheet: manufacturer datasheet for VCCF5
About the TeSys Mini-Vario, VARIO range
TeSys Mini-Vario, VARIO is a Schneider Electric range with 101 references listed on RMS-SE.Africa, from 10 A to 175 A.
VCCF5 — frequently asked questions
What is the rated current of VCCF5?
VCCF5 is rated 125 A.
Where is the datasheet for VCCF5?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is VCCF5 a genuine Schneider Electric product?
Yes. VCCF5 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | VCCF5 – TeSys Vario – emergency stop switch disconnector – 125 A – back of enclosure Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys Mini-Vario, VARIO |
| GTIN / EAN | 3389110804652 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000216 |
Electrical ratings
| Rated current (Iu) | Filter products by 125 A |
|---|---|
| Rated voltage (Ue) | Filter products by 690 V |
| Operating Voltage | Filter products by 690V |
Environment & protection
| Degree of protection (IP) | Filter products by IP65 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Rated power kw | Filter products by 37 kW at 400 V |
|---|---|
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
| SKU/Code/Partnumber | VCCF5 |
| Iternational GTIN | 3389110804652 |
| Mount Type | Filter products by Plug-in |
