TM3AI8 – TM3AI8 – Modicon TM3 – 8 analog inputs (screw) 24Vdc
Order code
Original price was: R7 050.00.R4 794.00Current price is: R4 794.00.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
TM3AI8 – Modicon TM3 – 8 analog inputs (screw) 24Vdc — Schneider Electric order code TM3AI8. Rated voltage 24 V; IP20.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
TM3AI8 — TM3AI8 – Modicon TM3 – 8 analog inputs (screw) 24Vdc, a human-machine interface by Schneider Electric.
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 8 inputs with 11bit + sign and 12bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 35mA at 5V DC via bus connector no load, 45mA at 5V DC via bus connector full load, 30mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism.
Key specifications: rated voltage 24 V; IP20.
Ordering information
- Order code:
TM3AI8 - Manufacturer: Schneider Electric
- Range: Modicon TM3
- GTIN / EAN: 3606480648922
- Supplied: each
- Weight: 0.216 kg
- ETIM class: EC001420
- Datasheet: manufacturer datasheet for TM3AI8
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by TM3AI8 – TM3AI8 – Modicon TM3 – 8 analog inputs (screw) 24Vdc Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Modicon TM3 |
| GTIN / EAN | Filter products by 3606480648922 |
| Range | Filter products by Modicon TM3 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001420 |
Electrical ratings
| Rated voltage (Ue) | Filter products by 24 V |
|---|---|
| Rated operational voltage | Filter products by 24 V |
| Operating Voltage | Filter products by 24VDC |
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Human-Machine Interface basic, Filter products by Power Monitoring Systems |
|---|---|
| SKU/Code/Partnumber | Filter products by TM3AI8 |
| Iternational GTIN | Filter products by 3606480648922 |
More in the Modicon TM3 range
Same series, same mounting and the same documentation set.

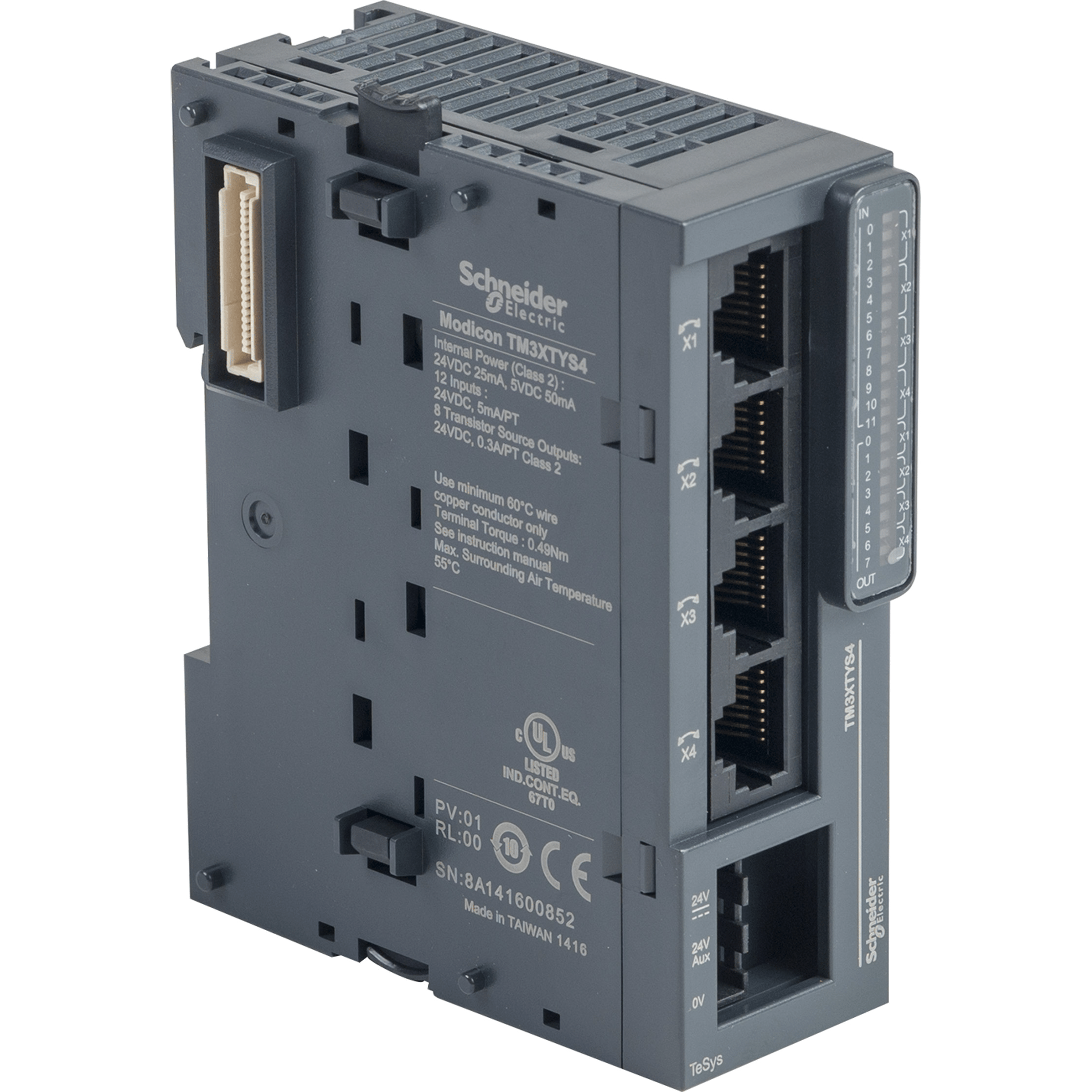

TM3XTYS4Parallel interface module, Modicon TM3, 4 Tesys motors Schneider ElectricR2 932.92View product
TM3XTRA1Remote transmitter module, Modicon TM3 Original price was: R2 646.00.R1 799.28Current price is: R1 799.28.View product
TM3XREC1Remote receiver module, Modicon TM3 Original price was: R2 646.00.R1 799.28Current price is: R1 799.28.View product

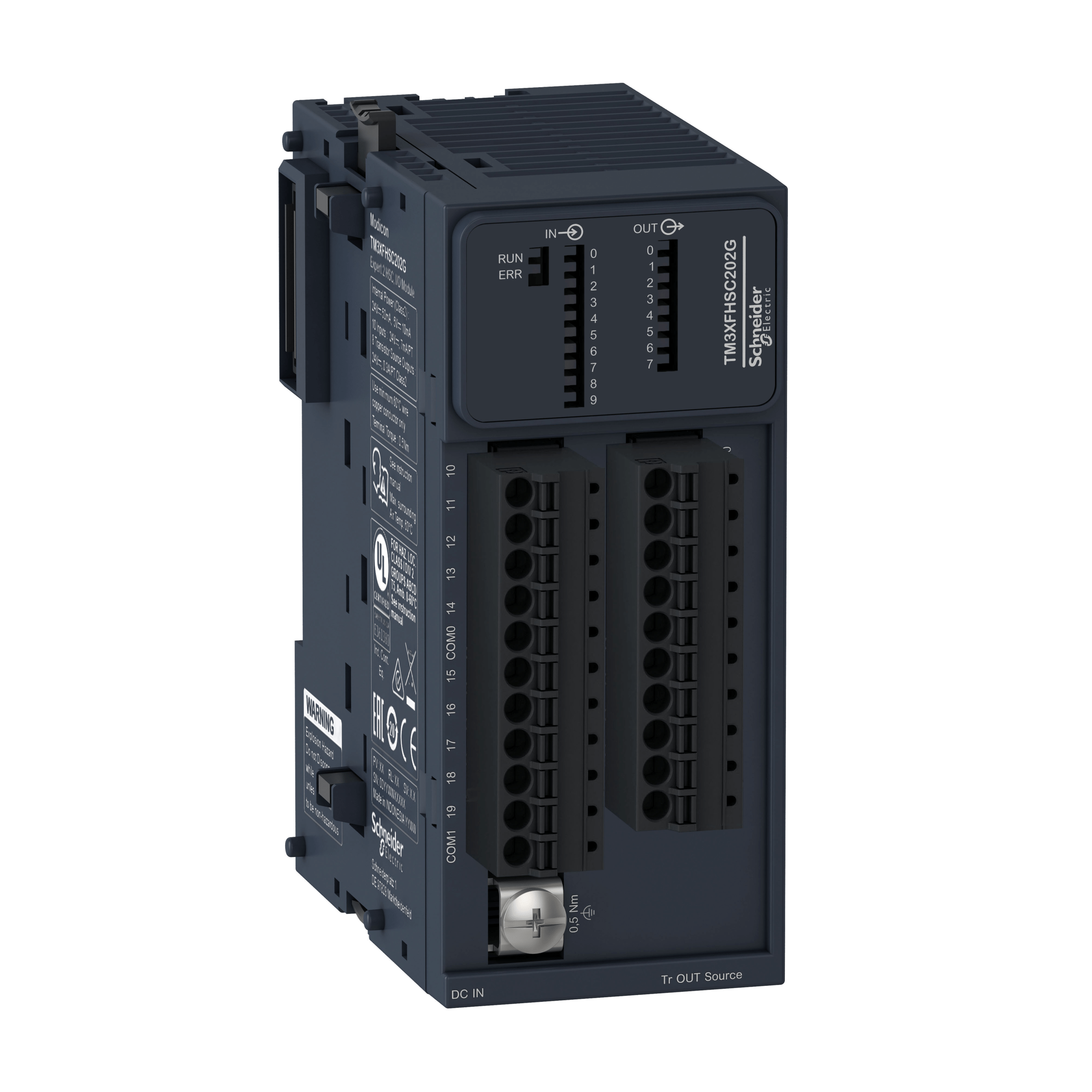

TM3XHSC202GModule hight speed counting, Modicon TM3, 2 channels HSC, 10 inputs, 8 outputs (spring)R7 170.83View product
TM3XHSC202Module hight speed counting, Modicon TM3, 2 channels HSC, 10 inputs, 8 outputs (screw)R7 170.83View product
TM3XFHSC202GModule hight speed counting, Modicon TM3, 2 channels HSC Event management, 10 inputs, 8 outputs (spring)R10 072.72View product
TM3XFHSC202Module hight speed counting, Modicon TM3, 2 channels HSC Event management, 10 inputs, 8 outputs (screw)R10 072.72View product

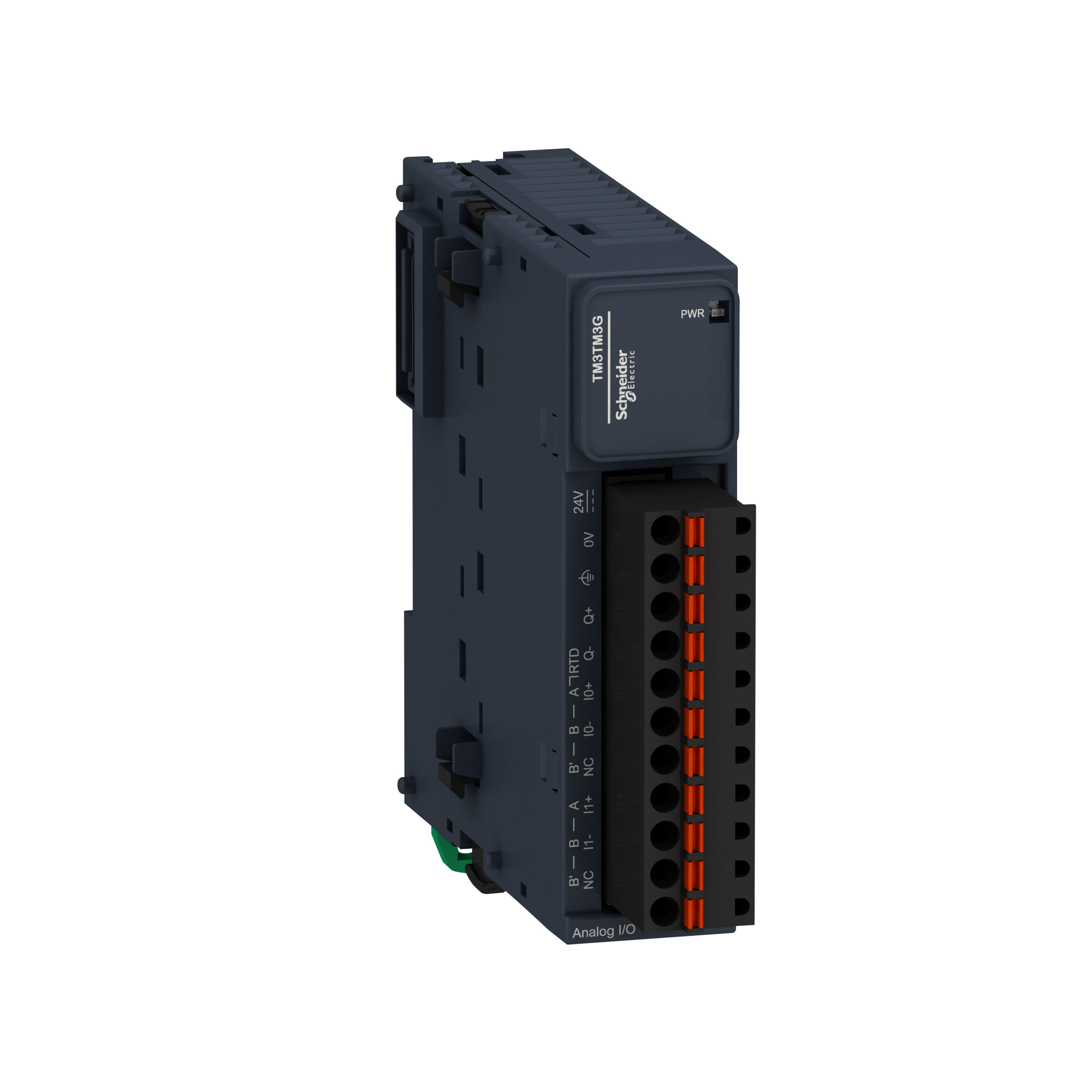

TM3TM3GInput/output analog module, Modicon TM3, 2 or temperature inputs, 1 output (spring) 24 VDC Schneider ElectricR8 304.91View product
Similar items
TM3TI4GAnalog input module, Modicon TM3, 4 / temperature inputs (spring) 24 VDC Schneider Electric Original price was: R7 050.00.R4 794.00Current price is: R4 794.00.View product
TM3TI4Analog input module, Modicon TM3, 4 / temperature inputs (screw) 24 VDC Schneider Electric Original price was: R7 050.00.R4 794.00Current price is: R4 794.00.View product

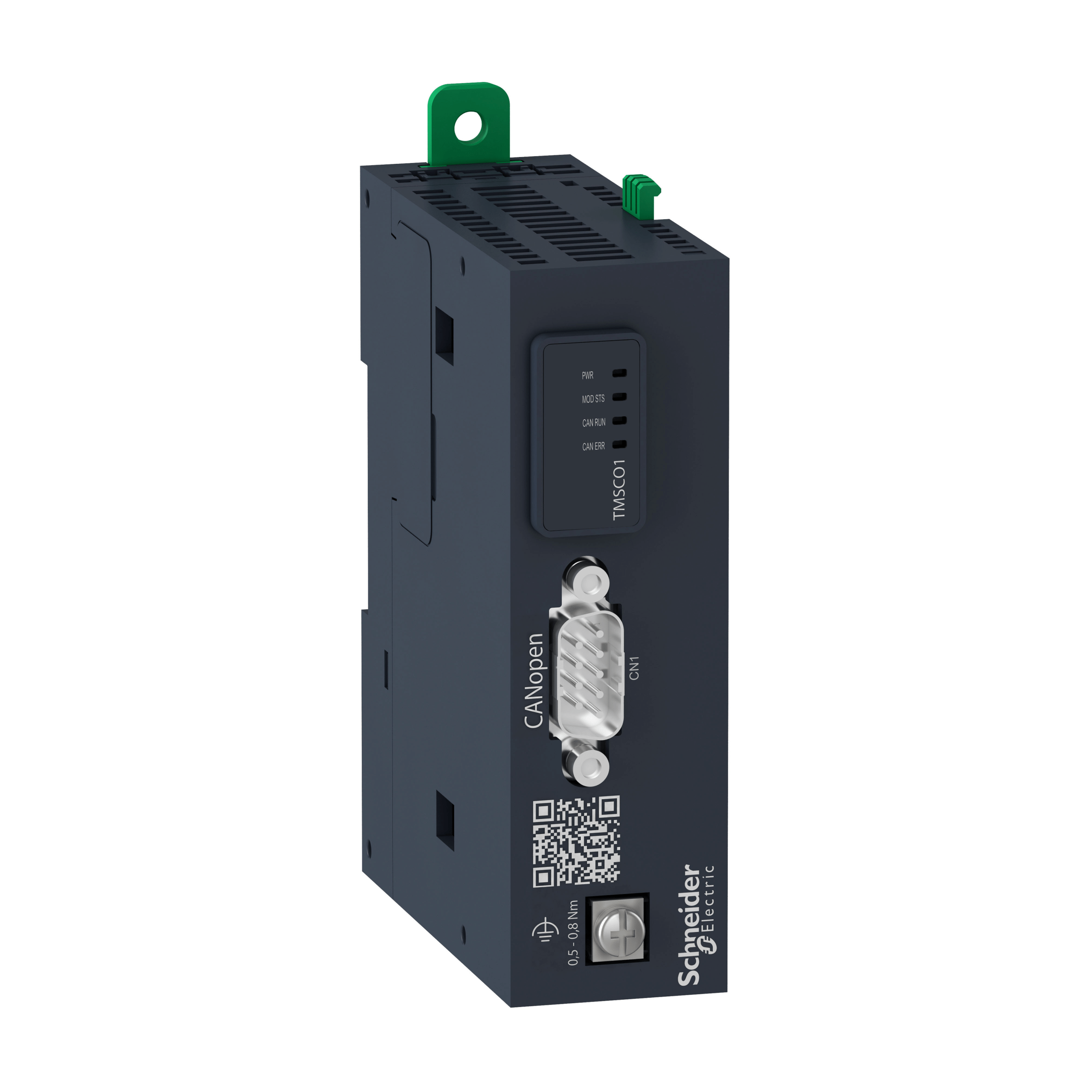

TMSCO1Smart communication module, Modicon M262, CANopen, 1 SubD9 Schneider ElectricR4 796.54View product

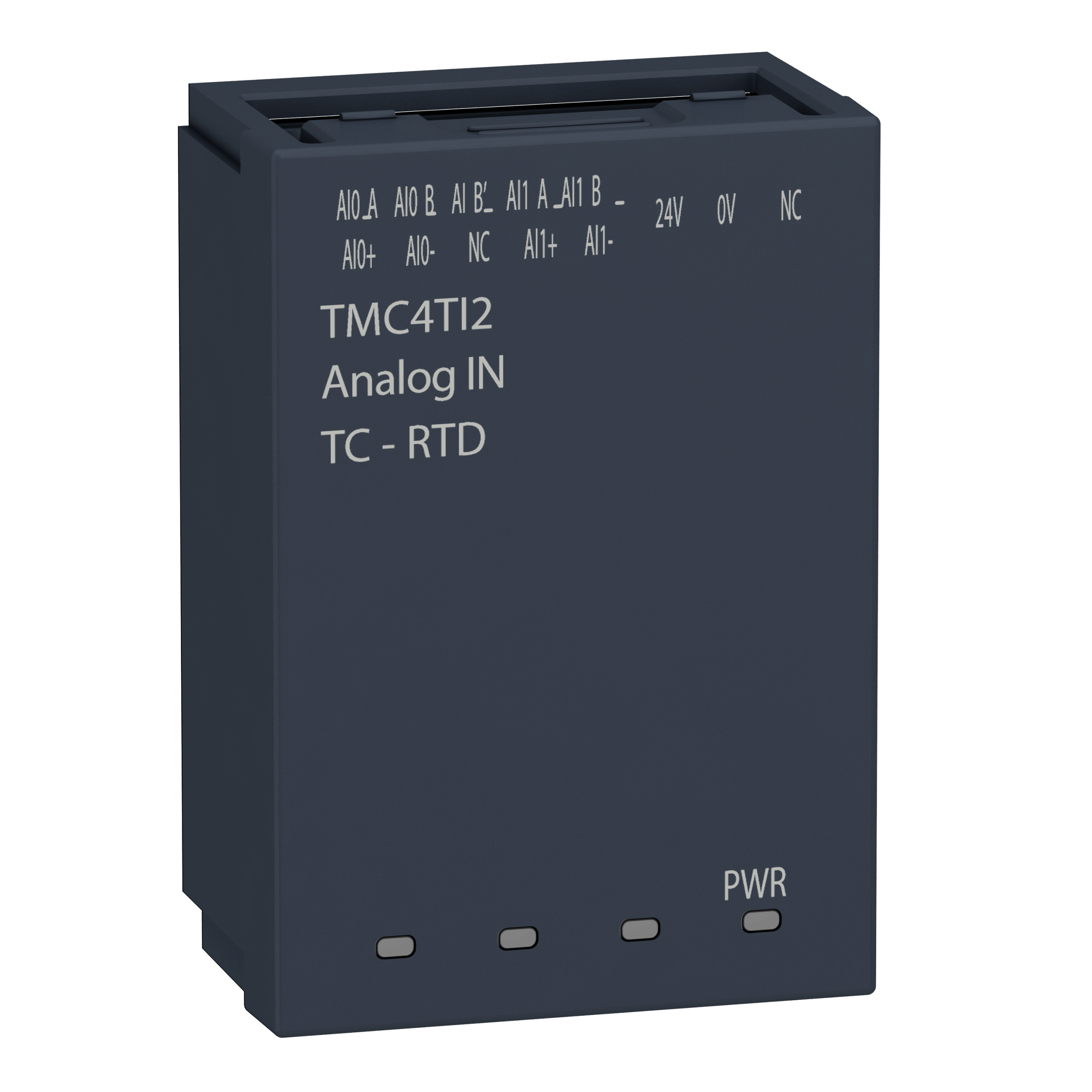

TMC4TI2Analogue input cartridge, Modicon M241, 2 temperature inputs Schneider ElectricR5 017.57View product
TMC4AQ2Analogue output cartridge, Modicon M241, 2 analog outputsR5 017.57View product

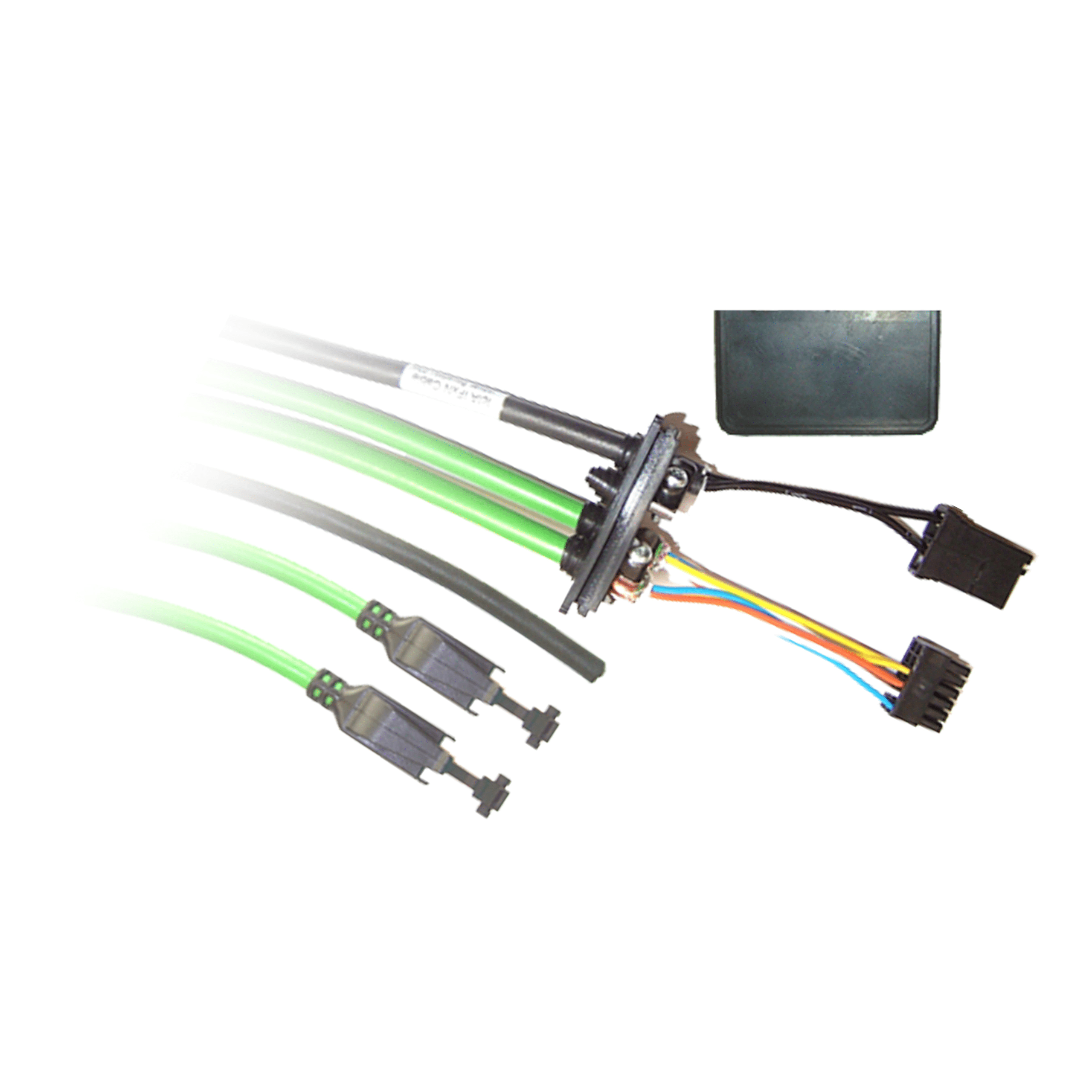

VW3L2K001R30pre-assembled cable kit for fieldbus interfaces and power supply – EtherCAT – 3mR5 190.37View product
TMC4AI2Analogue input cartridge, Modicon M241, 2 analog current inputs Schneider ElectricR4 362.43View product

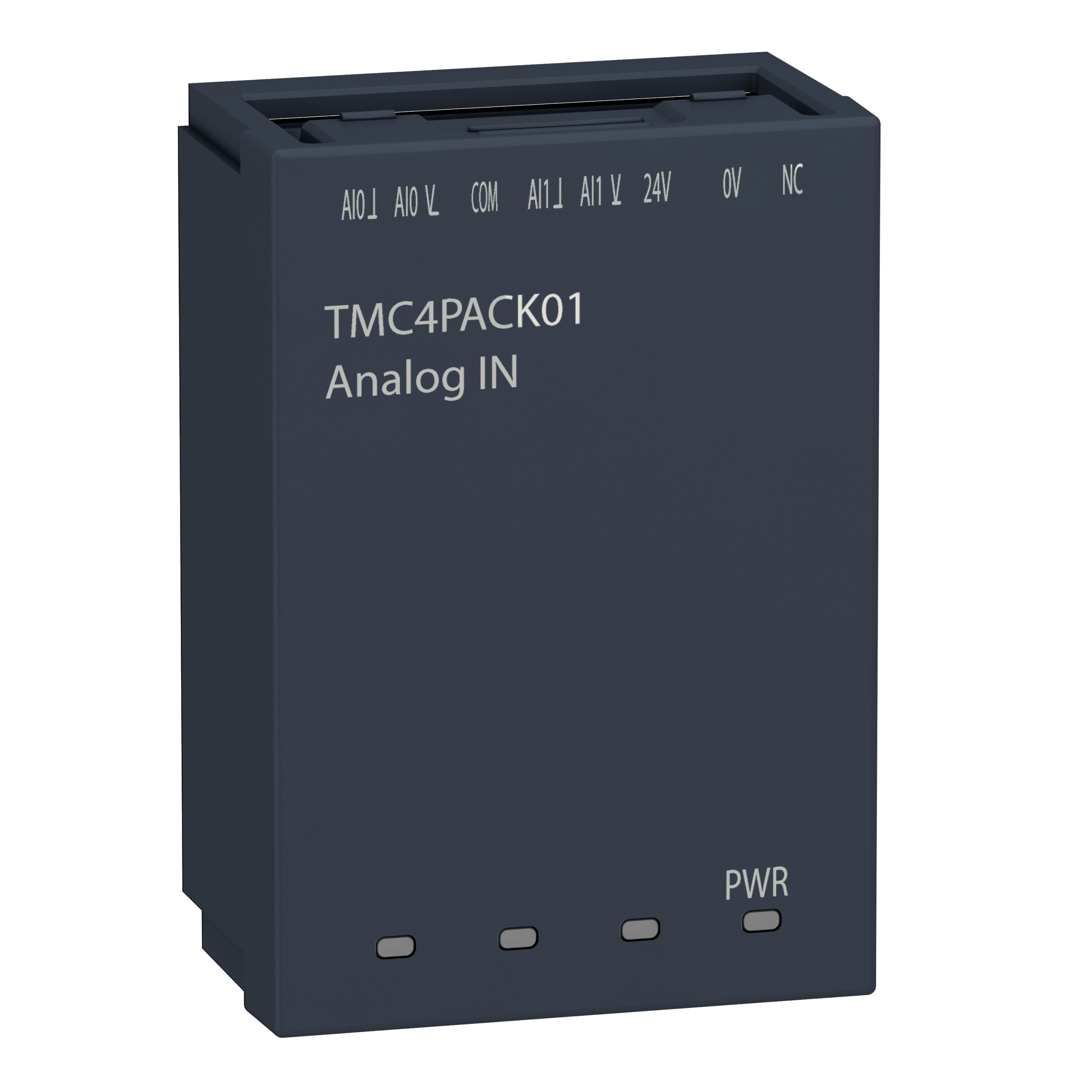

TMC4PACK01Analogue input cartridge, Modicon M241, packaging 2 analog inputs Schneider ElectricR5 234.25View product
More in Human-Machine Interfaces (HMI)

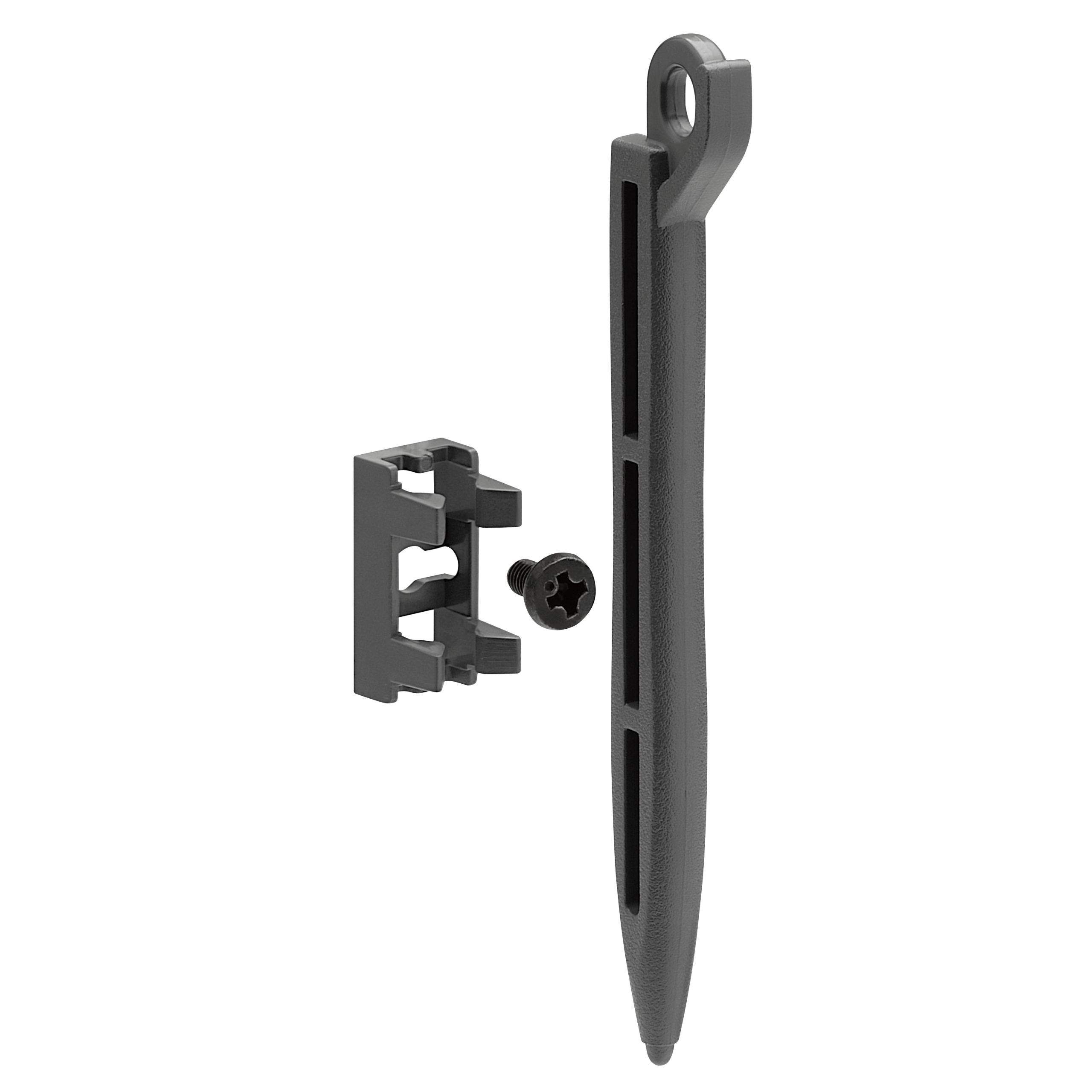

XBTZGPENtouchscreen stylus – Magelis XBTGH – for advanced hand-held panel Schneider ElectricR964.21View product
