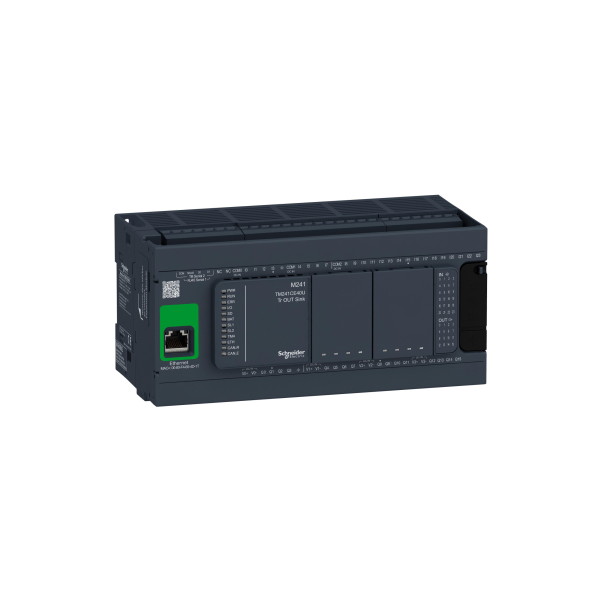

TM241CE40U – Logic controller, Modicon M241, 40 IO transistor NPN Ethernet
Order code
R16 571.20
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Schneider Electric – Logic controller, Modicon M241, 40 IO transistor NPN Ethernet – Modicon M241 | TM241CE40U
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
TM241CE40U – Logic controller, Modicon M241, 40 IO transistor NPN Ethernet Schneider Electric This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This logic controller provides 24 discrete, 8 fast inputs, 16 transistor, 4 fast outputs with ethernet NPN transistor output. It is a Modicon logic controller with a rated supply/output voltage of 24V DC and an output current of 0.5A for transistor output, 0.1A for fast output current with sink or source input logic negative output logic. This product enables to build application intuitively as never before due to an organised screen design. Integrated connections are USB port with mini B USB 2.0, non isolated serial link 1 with RJ45 and RS232/RS485 interface, non isolated serial link 2 with removable screw terminal block and RS485 interface and ethernet with RJ45 . It is a Modicon M241 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 16GB. It is an IP20 rated product. Its dimensions are 190mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.62kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, CSA, RCM and CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks. Logic controller, Modicon M241, 40 IO transistor NPN Ethernet TM241CE40U – Modicon M241
TM241CE40U – Logic controller, Modicon M241, 40 IO transistor NPN Ethernet Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.
This product forms part of the Logic range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.
Technical Specifications
- Brand: Schneider Electric
- Series: Logic
- Amperage: 5A
- Voltage: 24V
- IP Rating: IP20
- Mount Type: DIN Rail
- Connector Type: RJ45
Key Features
- Part of the Logic range
- Rated at 5A
- Suitable for 24V applications
- IP20 ingress protection
- DIN Rail installation format
- Compatible with RJ45 connections
Applications
- Industrial automation
- Commercial electrical installations
- Control and protection systems
- Infrastructure and maintenance projects
Browse Related Categories
Metering | Power Monitoring Systems | Human-Machine Interface basic
Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Rated current (Iu) | Filter products by 5A |
|---|---|
| Rated voltage (Ue) | Filter products by 24V |
| Rated operational voltage | Filter products by 24V |
| Operating Voltage | Filter products by 24V |
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Human-Machine Interface basic, Filter products by Power Monitoring Systems |
|---|---|
| SKU/Code/Partnumber | Filter products by TM241CE40U |
| Iternational GTIN | Filter products by 3606480611162 |
| Mount Type | Filter products by DIN Rail |
| Connector Type | Filter products by RJ45 |
Quick answers
What is TM241CE40U?
TM241CE40U is the order code for TM241CE40U – Logic controller, Modicon M241, 40 IO transistor NPN Ethernet Schneider Electric. It belongs to our 7 Industry Programmable range. RMS-SE.Africa supplies it as an authorised Schneider Electric distributor, so it is genuine product with the manufacturer's warranty.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
