Schneider ElectricProgrammable Logic Controllers (PLC)

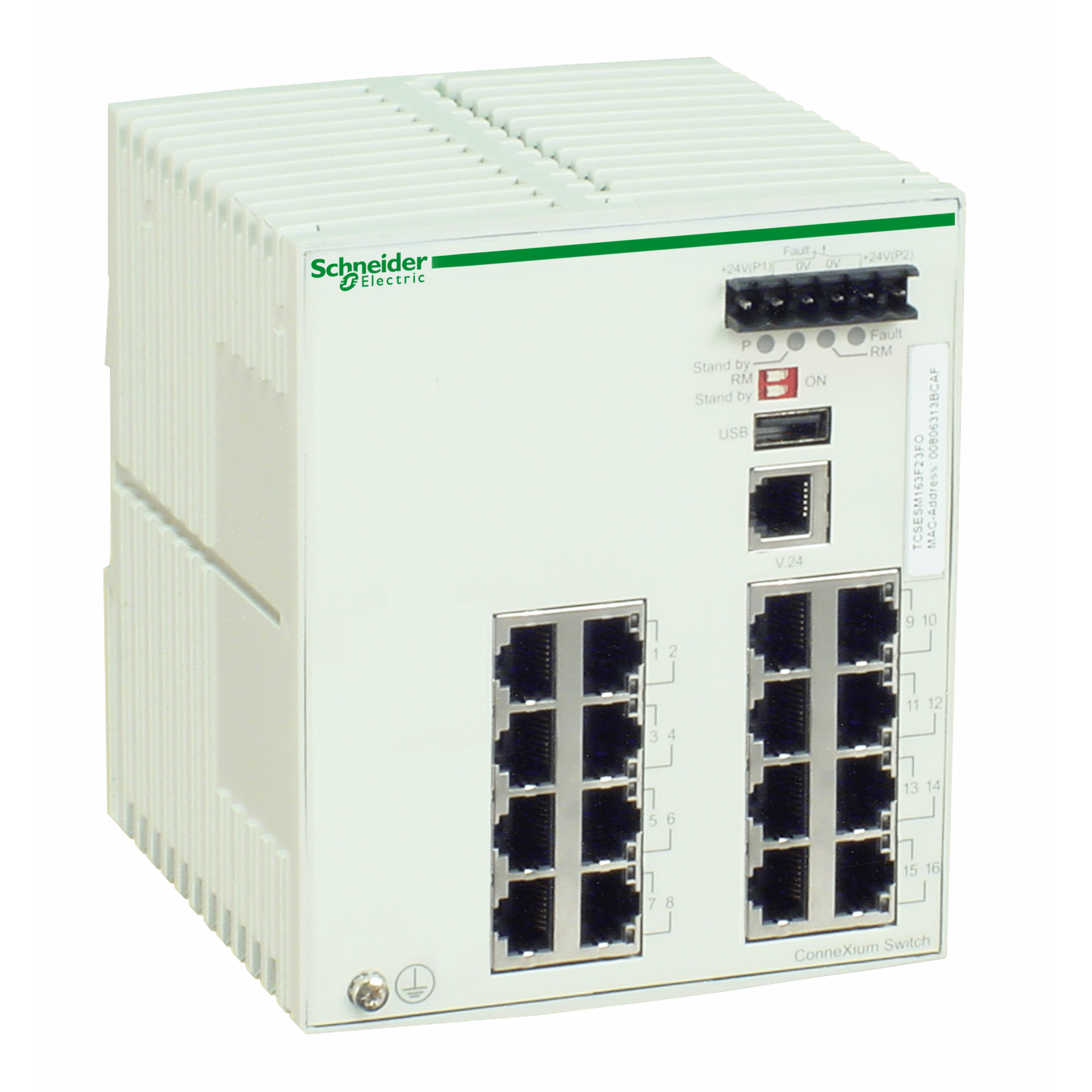

TCSESM163F23F0 – TCSESM163F23F0 – Ethernet TCP/IP managed switch – ConneXium – 16 ports for copper Schneider Electric
Order code
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
R37 752.33
Excluding VAT · per unit · volume pricing available on request
End of commercialisation announced. Replaced by Modicon Managed Switches MCSESM. See Modicon Managed Switches MCSESM products · Schneider Electric substitution guide (opens in a new tab) Ask us to confirm remaining stock or to quote the replacement.
Listed in stock — availability is re-confirmed on every order
TCSESM163F23F0 – Ethernet TCP/IP managed switch – ConneXium – 16 ports for copper — Schneider Electric order code TCSESM163F23F0. Rated voltage 12 V; IP20.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
TCSESM163F23F0 — TCSESM163F23F0 – Ethernet TCP/IP managed switch – ConneXium – 16 ports for copper, a programmable logic controller from the Schneider Electric ConneXium – Ethernet range.
This switch is part of the Modicon Networking range, an offer of industrial network switches. This TCP/IP extended managed switch has 10/100BASE-TX – 16 ports for copper cable. Ethernet services are configured via web server, VLAN, multicast filtering, data stream control, IGMP snooping, SNMP traps and SYSLOG. It is a network switch with a supply voltage of 12V to 48V, a power consumption of 9.4W and maximum number of switches in a ring is 50. It is furnished with 6-way removable connector. The supported transmission medium is twisted shielded pair CAT 5E copper cable. It is an IP20 rated product. Its dimensions are 111mm (width) x 111mm (depth) x 131mm (height). It weighs 0.6kg. It is suitable for all industrial automation segment applications. This switch is part of the Modicon Networking range, an offer of industrial network switches. This TCP/IP extended managed switch has 10/100BASE-TX – 16 ports for copper cable. Ethernet services are configured via web server, VLAN, multicast filtering, data stream control, IGMP snooping, SNMP traps and SYSLOG. It is a network switch with a supply voltage of 12V to 48V, a power consumption of 9.4W and maximum number of switches in a ring is 50. It is furnished with 6-way removable connector. The supported transmission medium is twisted shielded pair CAT 5E copper cable. It is an IP20 rated product.
Key specifications: rated voltage 12 V; IP20.
Availability notice: Schneider Electric has announced the end of commercialisation of this reference (announced 2021/12/15, last orders 2023/12/31). Stock may still be available; ask us to confirm, or to quote the current replacement.
Ordering information
- Order code:
TCSESM163F23F0 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: ConneXium – Ethernet
- GTIN / EAN: 3595863892468
- Supplied: each
- Weight: 0.83 kg
- ETIM class: EC000734
- Datasheet: manufacturer datasheet for TCSESM163F23F0
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Rated voltage (Ue) | Filter products by 12 V |
|---|---|
| Operating Voltage | Filter products by 12V |
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by TCSESM163F23F0 |
|---|---|
| Iternational GTIN | Filter products by 3595863892468 |
| Cable Category | Filter products by CAT 5E |
