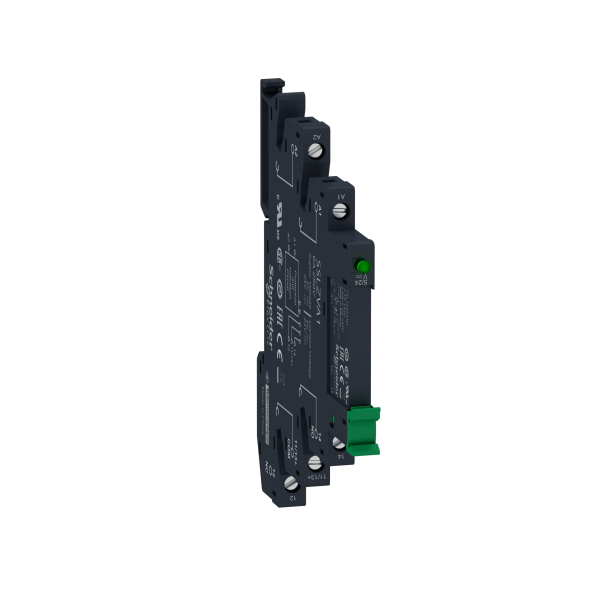

SSL1D03JDPV – Harmony, Solid state relay pre assembled, 3.5 A, DC switching, screw sockets, input 4…12 V DC, output 1…24 V DC | Schneider Electric
Order code
List R675.54 Your price R459.37
Per unit · volume pricing available on request
excl. VAT R528.28 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Harmony, Solid state relay pre assembled, 3.5 A, DC switching, screw sockets, input 4…12 V DC, output 1…24 V DC — Schneider Electric order code SSL1D03JDPV. Rated current 5 A; rated voltage 12 V; IP67.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
SSL1D03JDPV — Harmony, Solid state relay pre assembled, 3.5 A, DC switching, screw sockets, input 4…12 V DC, output 1…24 V DC from the Schneider Electric Harmony Solid State Relays range. Listed under Interface Relays on the Schneider Electric catalogue at RMS-SE.Africa.
About SSL1D03JDPV
This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 3.5A DC switching slim relay with 4Vdc to 12Vdc input and 1Vdc to 24Vdc output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by screw connector type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. Thiss is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
SSL1D03JDPV key specifications
Key specifications: rated current 5 A; rated voltage 12 V; IP67.
Ordering information for SSL1D03JDPV
- Order code:
SSL1D03JDPV - Manufacturer: Schneider Electric
- Range: Harmony Solid State Relays
- GTIN / EAN: 3606489562939
- Supplied: each
- Weight: 0.027 kg
- ETIM class: EC002055
- Datasheet: manufacturer datasheet for SSL1D03JDPV
About the Harmony Solid State Relays range
Harmony Solid State Relays is a Schneider Electric range with 41 references listed on RMS-SE.Africa, from 1 A to 125 A. It spans Solid State Relays, Interface Relays, Programmable Logic Controllers (PLC).
SSL1D03JDPV — frequently asked questions
What is the rated current of SSL1D03JDPV?
SSL1D03JDPV is rated 5 A.
Where is the datasheet for SSL1D03JDPV?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is SSL1D03JDPV a genuine Schneider Electric product?
Yes. SSL1D03JDPV is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | SSL1D03JDPV – Harmony, Solid state relay pre assembled, 3.5 A, DC switching, screw sockets, input 4…12 V DC, output 1…24 V DC Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Harmony Solid State Relays |
| GTIN / EAN | 3606489562939 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC002055 |
Electrical ratings
| Rated current (Iu) | Filter products by 3.5 A |
|---|---|
| Rated voltage (Ue) | Filter products by 12 V |
Environment & protection
| Degree of protection (IP) | Filter products by IP67 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | SSL1D03JDPV |
| Iternational GTIN | 3606489562939 |
| Mount Type | Filter products by Plug-in |
