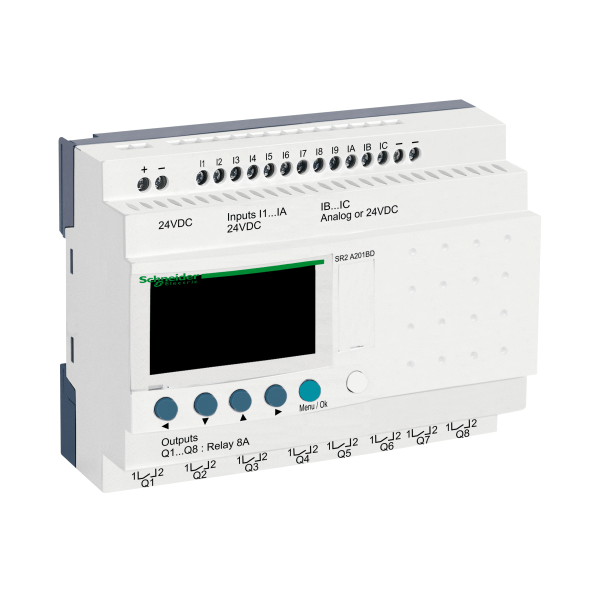

SR2A201BD – Compact smart relay, Zelio Logic, 20 I/O, 24 V DC, no clock, display | Telemecanique

SR2A201BD — Compact smart relay, Zelio Logic, 20 I/O, 24 V DC, no clock, display, a programmable logic controller by Telemecanique. Listed under Programmable Logic Controllers (PLC) on the Telemecanique catalogue at RMS-SE.Africa.

About SR2A201BD

This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes with display and without clock. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines. Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards It offers 8 relay outputs with normally opened contact and 12 discrete inputs. It has a rated supply voltage of 24V DC, a maximum supply current of 100mA (without extension) and a power consumption of 6W without extension. It is an IP20 and IP40 rated product. It weighs 0.38kg. This product meets EN/IEC 61000-4-5, EN/IEC 61000-4-6 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-12, EN/IEC 61000-4-11, EN/IEC 61000-4-3, EN/IEC 61000-4-2 level 3, EN/IEC 60068-2-27 Ea and EN/IEC 61000-4-4 level 3 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.

SR2A201BD key specifications

Key specifications: rated voltage 24 V; IP20.

Ordering information for SR2A201BD

• Order code: SR2A201BD
• Manufacturer: Telemecanique
• Range: Zelio Logic
• GTIN / EAN: 3389110549416
• Supplied: each
• Weight: 0.356 kg
• ETIM class: EC001417
• Datasheet: manufacturer datasheet for SR2A201BD

About the Zelio Logic range

Zelio Logic is a Telemecanique range with 62 references listed on RMS-SE.Africa. It spans Programmable Logic Controllers (PLC), Soft Starters.

SR2A201BD — frequently asked questions

Where is the datasheet for SR2A201BD?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Telemecanique publishes them.

Is SR2A201BD a genuine Telemecanique product?

Yes. SR2A201BD is supplied through the manufacturer’s authorised channel with the standard Telemecanique warranty, and every order is confirmed against stock before payment.
