Schneider ElectricPlug-in Relays

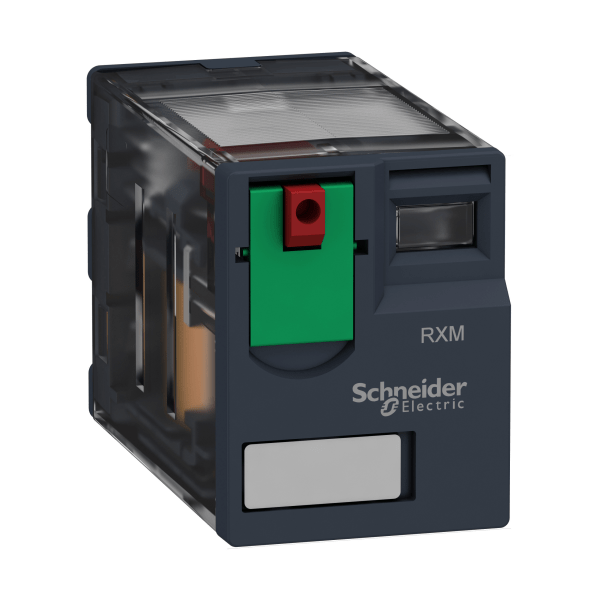

RXM2AB1F7 – Harmony, Miniature plug-in relay, 12 A, 2 CO, with lockable test button, 120 V AC | Schneider Electric
Order code
List R168.00 Your price R114.24
Per unit · volume pricing available on request
excl. VAT R131.38 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Harmony, Miniature plug-in relay, 12 A, 2 CO, with lockable test button, 120 V AC — Schneider Electric order code RXM2AB1F7. Rated current 12 A; rated voltage 120 V; IP40; plug-in mounting.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Coil voltageChoose23 options
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
RXM2AB1F7 — Harmony, Miniature plug-in relay, 12 A, 2 CO, with lockable test button, 120 V AC from the Schneider Electric Harmony Electromechanical Relays range. Listed under Plug-in Relays on the Schneider Electric catalogue at RMS-SE.Africa.
About RXM2AB1F7
"This Harmony RXM miniature plug-in relay has a coil control voltage of 120V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 12A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers one-step lockable test button and mechanical indicator for contact status." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 "It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH." "RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available." "It is sold in lots of 10 and reference includes relay only." 0 "The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts." 0 0.
RXM2AB1F7 key specifications
Key specifications: rated current 12 A; rated voltage 120 V; IP40; plug-in mounting.
Ordering information for RXM2AB1F7
- Order code:
RXM2AB1F7 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: Harmony Electromechanical Relays
- GTIN / EAN: 3389119403429
- Supplied: each
- Weight: 0.037 kg
- ETIM class: EC001437
- Datasheet: manufacturer datasheet for RXM2AB1F7
About the Harmony Electromechanical Relays range
Harmony Electromechanical Relays is a Schneider Electric range with 240 references listed on RMS-SE.Africa, from 3 A to 30 A. It spans Plug-in Relays, Power Relays, Timers.
RXM2AB1F7 — frequently asked questions
What is the rated current of RXM2AB1F7?
RXM2AB1F7 is rated 12 A.
Where is the datasheet for RXM2AB1F7?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is RXM2AB1F7 a genuine Schneider Electric product?
Yes. RXM2AB1F7 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by RXM2AB1F7 – Harmony, Miniature plug-in relay, 12 A, 2 CO, with lockable test button, 120 V AC Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Harmony Electromechanical Relays |
| GTIN / EAN | 3389119403429 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001437 |
Electrical ratings
| Rated current (Iu) | Filter products by 12 A |
|---|---|
| Rated voltage (Ue) | Filter products by 120 V |
Mechanical & mounting
| Mounting | Filter products by plug-in |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP40 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Search products for RXM2AB1F7 |
| Iternational GTIN | 3389119403429 |
