| Rated current (Iu) | Filter products by32 A |
|---|---|
| Rated voltage (Ue) | Filter products by500 V |
| Number of poles | Filter products by3P+N |
| Degree of protection (IP) | Filter products byIP44 |
| Product Series | Filter products byPratiKa |
Merlin GerinIndustrial Plugs & Sockets

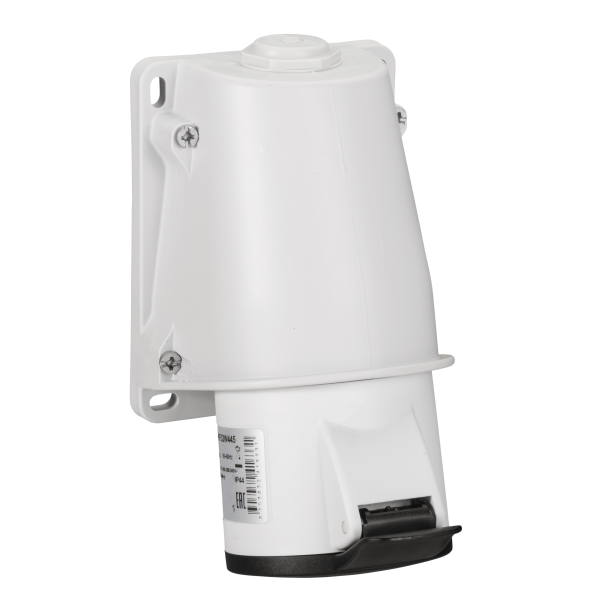

PKF32W445 – PratiKa socket – screw – angled – 32A – 3P + N + E – 480…500 V AC – wall | Schneider Electric
Order code
Select a variant in this series
- 16 A
- 32 A
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
List R448.53 Your price R305.00
Excluding VAT · per unit · volume pricing available on request
Discontinued on 20 Dec 2022. Replaced by Mureva PK. See Mureva PK products · Schneider Electric substitution guide (opens in a new tab) Ask us to confirm remaining stock or to quote the replacement.
Listed in stock — availability is re-confirmed on every order
PratiKa socket – screw – angled – 32A – 3P + N + E – 480…500 V AC – wall — Schneider Electric order code PKF32W445. Rated current 32 A; 3P+N; rated voltage 500 V; IP44.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
PKF32W445 — PratiKa socket – screw – angled – 32A – 3P + N + E – 480…500 V AC – wall by Schneider Electric. Listed under Industrial Plugs & Sockets on the Schneider Electric catalogue at RMS-SE.Africa.
About PKF32W445
This PratiKa industrial socket with captive screws connection is angled wall-mounted. It has 3P+N+E pole, rated current is 32A and the operating voltage is 500VAC. The dimensions of the socket are (W) 90mm x (H) 120mm. The degree of protection is IP44 and IK08. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm² to 10mm² cables. The color of the socket is grey (RAL 7035) with black easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 7h.
PKF32W445 key specifications
Key specifications: rated current 32 A; 3P+N; rated voltage 500 V; IP44.
Availability and replacement
Availability notice: Schneider Electric has announced the end of commercialisation of this reference (announced 2023/05/19, last orders 2023/06/30). Stock may still be available; ask us to confirm, or to quote the current replacement.
Schneider Electric names Mureva PK as the successor to the PratiKa range. Schneider publishes no reference-by-reference PratiKa->Mureva PK table found. Ask the sales desk to confirm the exact replacement reference before ordering.
Schneider Electric substitution guide (manufacturer document)
Ordering information for PKF32W445
- Order code:
PKF32W445 - Manufacturer: Schneider Electric (formerly Merlin Gerin)
- Range: PratiKa
- GTIN / EAN: 3303432416331
- Supplied: each
- Weight: 0.29 kg
- ETIM class: EC001321
- Datasheet: manufacturer datasheet for PKF32W445
About the PratiKa range
PratiKa is a Schneider Electric range with 105 references listed on RMS-SE.Africa, from 16 A to 32 A. Schneider Electric has announced Mureva PK as its successor.
PKF32W445 — frequently asked questions
What is the rated current of PKF32W445?
PKF32W445 is rated 32 A.
How many poles does PKF32W445 have?
PKF32W445 is a 3P+N device.
Is PKF32W445 discontinued, and what replaces it?
Yes. Schneider Electric has announced the end of commercialisation of PKF32W445 (last orders 2023/06/30). The named successor is Mureva PK; the sales desk confirms the exact replacement reference and remaining stock.
Where is the datasheet for PKF32W445?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is PKF32W445 a genuine Schneider Electric product?
Yes. PKF32W445 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by3P+N |
|---|---|
| Rated current (Iu) | Filter products by32 A |
| Rated voltage (Ue) | Filter products by500 V |
Environment & protection
| Degree of protection (IP) | Filter products byIP44 |
|---|
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| Discontinued on | Filter products by2022-12-20 |
|---|---|
| Related Categories | Filter products byPlug – in Relays,Filter products byTimers & Control Relays |
| SKU/Code/Partnumber | Filter products byPKF32W445 |
| Iternational GTIN | Filter products by3303432416331 |
| Mount Type | Filter products byPlug-in |
