Merlin GerinIndustrial Plugs & Sockets

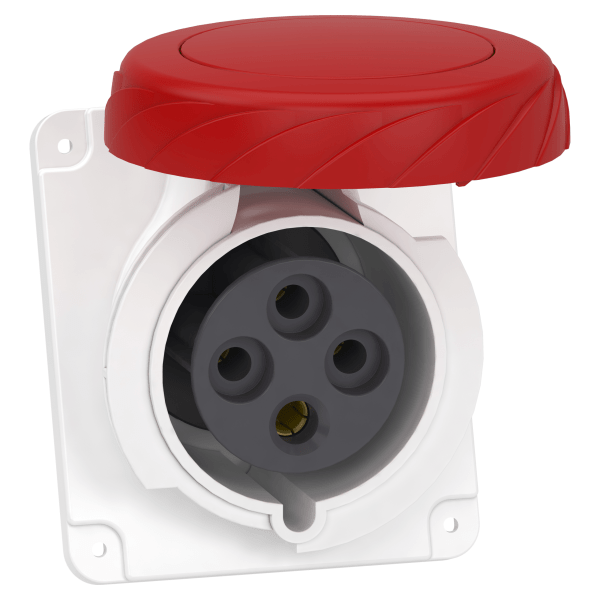

PKF32F734 – PratiKa socket – screw – angled – 32A – 3P + E – 380…415 V AC – panel | Schneider Electric
Order code
List R334.18 Your price R227.24
Per unit · volume pricing available on request
excl. VAT R261.33 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
PratiKa socket – screw – angled – 32A – 3P + E – 380…415 V AC – panel — Schneider Electric order code PKF32F734. Rated current 32 A; 3P; rated voltage 415 V; IP67.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Rating32 A2 options
- 16 A
- 32 A
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
PKF32F734 — PratiKa socket – screw – angled – 32A – 3P + E – 380…415 V AC – panel by Schneider Electric. Listed under Industrial Plugs & Sockets on the Schneider Electric catalogue at RMS-SE.Africa.
About PKF32F734
This Pratika industrial socket with captive screws connection is angled panel mounted. It has 3P+E poles, rated current is 32A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 95mm x (H) 100mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm² to 10mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
PKF32F734 key specifications
Key specifications: rated current 32 A; 3P; rated voltage 415 V; IP67; panel mounting.
Availability and replacement
Schneider Electric names Mureva PK as the successor to the PratiKa range. Schneider publishes no reference-by-reference PratiKa->Mureva PK table found. Ask the sales desk to confirm the exact replacement reference before ordering.
Schneider Electric substitution guide (manufacturer document)
Ordering information for PKF32F734
- Order code:
PKF32F734 - Manufacturer: Schneider Electric (formerly Merlin Gerin)
- Range: PratiKa
- GTIN / EAN: 3303432033170
- Supplied: each
- Weight: 0.234 kg
- ETIM class: EC001317
- Datasheet: manufacturer datasheet for PKF32F734
About the PratiKa range
PratiKa is a Schneider Electric range with 105 references listed on RMS-SE.Africa, from 16 A to 32 A. Schneider Electric has announced Mureva PK as its successor.
PKF32F734 — frequently asked questions
What is the rated current of PKF32F734?
PKF32F734 is rated 32 A.
How many poles does PKF32F734 have?
PKF32F734 is a 3P device.
Where is the datasheet for PKF32F734?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is PKF32F734 a genuine Schneider Electric product?
Yes. PKF32F734 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by PKF32F734 – PratiKa socket – screw – angled – 32A – 3P + E – 380…415 V AC – panel Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by PratiKa |
| GTIN / EAN | 3303432033170 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001317 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 32 A |
| Rated voltage (Ue) | Filter products by 415 V |
Mechanical & mounting
| Mounting | Filter products by panel |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP67 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Search products for PKF32F734 |
| Iternational GTIN | 3303432033170 |
| Mount Type | Filter products by Panel Mount |
