Merlin GerinIndustrial Plugs & Sockets
PKF16M435 – PratiKa wander socket – straight – 16 A – 3P + N + E – 380…415 V AC – IP44 Schneider Electric
Order code
Select a variant in this series
- 16 A
- 32 A
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
R254.52
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
PratiKa wander socket – straight – 16 A – 3P + N + E – 380…415 V AC – IP44 — Schneider Electric order code PKF16M435. Rated current 16 A; 3P+N; rated voltage 415 V; IP44.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
PKF16M435 — PratiKa wander socket – straight – 16 A – 3P + N + E – 380…415 V AC – IP44 by Schneider Electric.
This Pratika industrial wander socket with captive screws connection is straight. It has 3P+N+E poles, rated current is 16A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 97mm x (H) 97mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm² to 4mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Key specifications: rated current 16 A; 3P+N; rated voltage 415 V; IP44.
Ordering information
- Order code:
PKF16M435 - Manufacturer: Schneider Electric (formerly Merlin Gerin)
- Range: PratiKa
- GTIN / EAN: 3303432032678
- Supplied: each
- Weight: 0.205 kg
- ETIM class: EC001320
- Datasheet: manufacturer datasheet for PKF16M435
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 3P+N |
|---|---|
| Rated current (Iu) | Filter products by 16 A |
| Rated voltage (Ue) | Filter products by 415 V |
Environment & protection
| Degree of protection (IP) | Filter products by IP44 |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by PKF16M435 |
| Iternational GTIN | Filter products by 3303432032678 |
| Mount Type | Filter products by Plug-in |
Similar items
ZZA_40MFPWEFinger press switch (standard single pole, 2 way switch – 1 module wide) – white Schneider ElectricR228.32View product
ZZA_40MFPBKFinger press switch (standard single pole, 2 way switch – 1 module wide) – black Schneider ElectricR228.32View product
ZZA_40/2/3A3.0MSWELarge single pole, 2 way spring loaded switch module (3 module wide) -white Schneider ElectricR228.32View product
ZZA_40/2/3A1.5MSWEMedium single pole,2 way switch module (1 and half module wide) – white Schneider ElectricR228.32View product
ZZA_S3041/2/3AWE1 Lever, 2 way switch-horizontal mount (1 x 3 wide module) – white Schneider ElectricR222.44View product- ZZA_S3041/2/3AVWE1 Lever, 2 way switch-vertical mount (1 x 3 wide module) 100mmx50mm – white Schneider ElectricR222.44View product
ZZA_S3041/2/3AVBK1 Lever, 2 way switch-vertical mount (1 x 3 wide module) 100mmx50mm – black Schneider ElectricR222.44View product

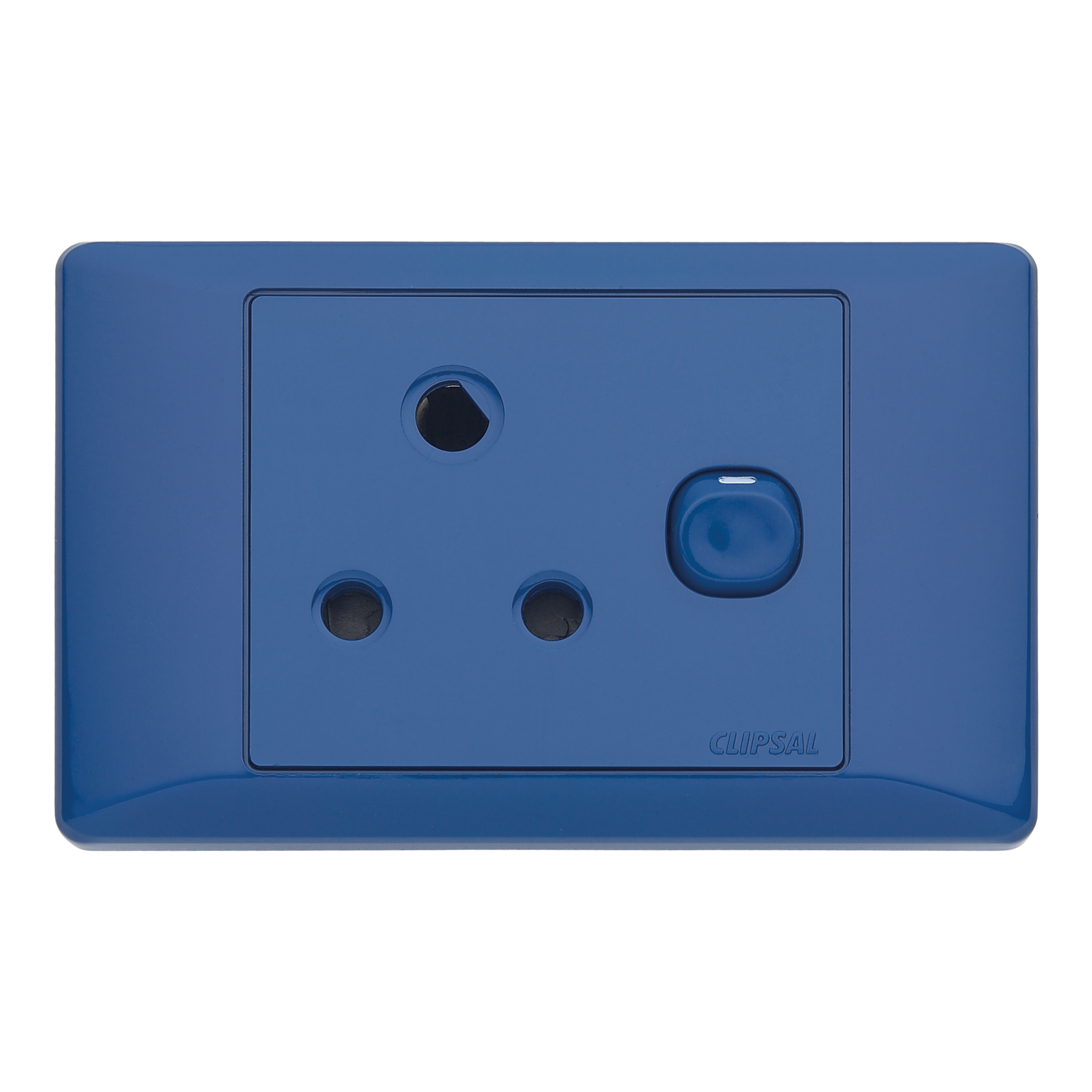

ZZA_S2015RDBS2000-16Aswichedsocket-righthanddiagonalSplitEarth-Blue Schneider ElectricR180.04View product
