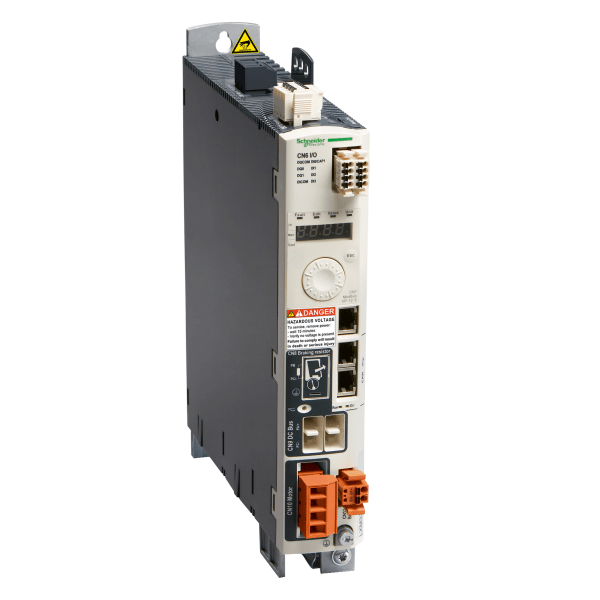

LXM32AD30N4 – Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 3 kW | Schneider Electric
Order code
List R23 774.00 Your price R16 166.32
Per unit · volume pricing available on request
excl. VAT R18 591.27 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 3 kW — Schneider Electric order code LXM32AD30N4. Rated current 10 A; rated voltage 480 V; IP20.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LXM32AD30N4 — Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 3 kW, a human-machine interface by Schneider Electric. Listed under Human-Machine Interfaces (HMI) on the Schneider Electric catalogue at RMS-SE.Africa.
About LXM32AD30N4
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 1 capture, 2 safety, 4 logic discrete inputs and 2 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 10A at 8kHz and a continuous power of 5600W at 400V. It is furnished with terminal for electrical connection and three RJ45 connectors for CANmotion, CANopen, and Modbus, integrated communication interfaces. It is an IP20 rated product. Its dimensions are 68mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 2.6kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motors BMH and BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
LXM32AD30N4 key specifications
Key specifications: rated current 10 A; rated voltage 480 V; IP20.
Ordering information for LXM32AD30N4
- Order code:
LXM32AD30N4 - Manufacturer: Schneider Electric
- Range: Lexium 32
- GTIN / EAN: 3606480076800
- Supplied: each
- Weight: 3.22 kg
- ETIM class: EC001857
- Datasheet: manufacturer datasheet for LXM32AD30N4
About the Lexium 32 range
Lexium 32 is a Schneider Electric range with 24 references listed on RMS-SE.Africa, from 3 A to 47 A. It spans Human-Machine Interfaces (HMI), Soft Starters.
LXM32AD30N4 — frequently asked questions
What is the rated current of LXM32AD30N4?
LXM32AD30N4 is rated 10 A.
Where is the datasheet for LXM32AD30N4?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LXM32AD30N4 a genuine Schneider Electric product?
Yes. LXM32AD30N4 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by LXM32AD30N4 – Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 3 kW Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Lexium 32 |
| GTIN / EAN | 3606480076800 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001857 |
Electrical ratings
| Rated current (Iu) | Filter products by 10 A |
|---|---|
| Rated voltage (Ue) | Filter products by 480 V |
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Rated power kw | Filter products by 3 kW |
|---|---|
| Related Categories | Filter products by Metering, Filter products by Power Monitoring Systems |
| SKU/Code/Partnumber | Search products for LXM32AD30N4 |
| Iternational GTIN | 3606480076800 |
| Connector Type | Filter products by RJ45 |
