Schneider ElectricPower Factor Correction
LVR05500A40T – Anti Harmonic detuned reactor 50kvar 210Hz (4.2) 5.7% 50Hz 400V Schneider Electric
Order code
R12 861.16
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Anti Harmonic detuned reactor 50kvar 210Hz (4.2) 5.7% 50Hz 400V — Schneider Electric order code LVR05500A40T. Rated voltage 400 V; 50 Hz.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LVR05500A40T — Anti Harmonic detuned reactor 50kvar 210Hz (4.2) 5.7% 50Hz 400V, a power factor correction from the Schneider Electric SAH detuned reactors range.
The VarPlus detuned reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and Reactors are configured in Series resonant circuit. Tuned so that the series resonant frequency is below the lowest harmonic frequency present in the system. This reactor is rated for 50 kVar output power with 4.2/210 Hz tuning order at 400V AC at 50 Hz. Relative impedance, 5.7 %. This component meet the standards IEC 60068. This component require a forced convection, a fan need to be added. The case dimensions are 270mm in height, 260mm in width and 200mm in depth. For a product weight of 24 kg.
Key specifications: rated voltage 400 V; 50 Hz.
Ordering information
- Order code:
LVR05500A40T - Manufacturer: Schneider Electric
- Range: SAH detuned reactors
- GTIN / EAN: 3606480541452
- Supplied: each
- Weight: 31 kg
- ETIM class: EC002565
- Datasheet: manufacturer datasheet for LVR05500A40T
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Rated voltage (Ue) | Filter products by 400 V |
|---|---|
| Operating Voltage | Filter products by 400V |
| Rated Frequency | Filter products by 50 Hz |
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Filter products by LVR05500A40T |
| Iternational GTIN | Filter products by 3606480541452 |
More in the SAH detuned reactors range 8
Same series, same mounting and the same documentation set.
- LVR14X00A40TAnti Harmonic detuned reactor 100kvar 135Hz (2.7) 14% 50Hz 400VR19 409.37View product

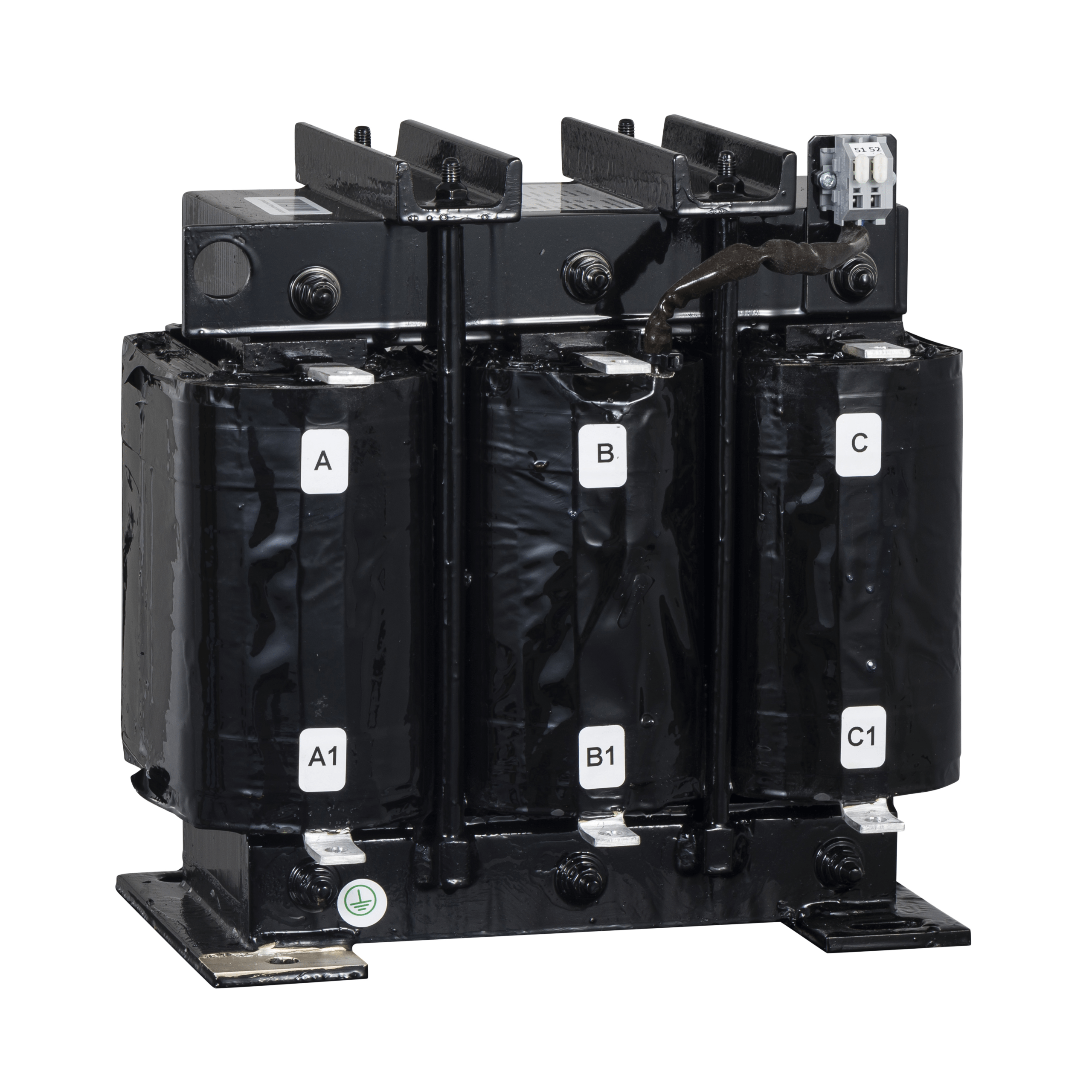

LVR14500A40TAnti Harmonic detuned reactor 50kvar 135Hz (2.7) 14% 50Hz 400V Original price was: R11 565.00.R7 864.20Current price is: R7 864.20.View product- LVR14250A40TAnti Harmonic detuned reactor 25kvar 135Hz (2.7) 14% 50Hz 400VR10 396.99View product
- LVR14125A40TAnti Harmonic detuned reactor 12.5kvar 135Hz (2.7) 14% 50Hz 400VR7 523.80View product
- LVR07X00A40TAnti Harmonic detuned reactor 100kvar 190Hz (3.8) 7% 50Hz 400VR17 465.75View product
LVR07500A40TAnti Harmonic detuned reactor 50kvar 190Hz (3.8) 7% 50Hz 400V Original price was: R11 125.00.R7 565.00Current price is: R7 565.00.View product

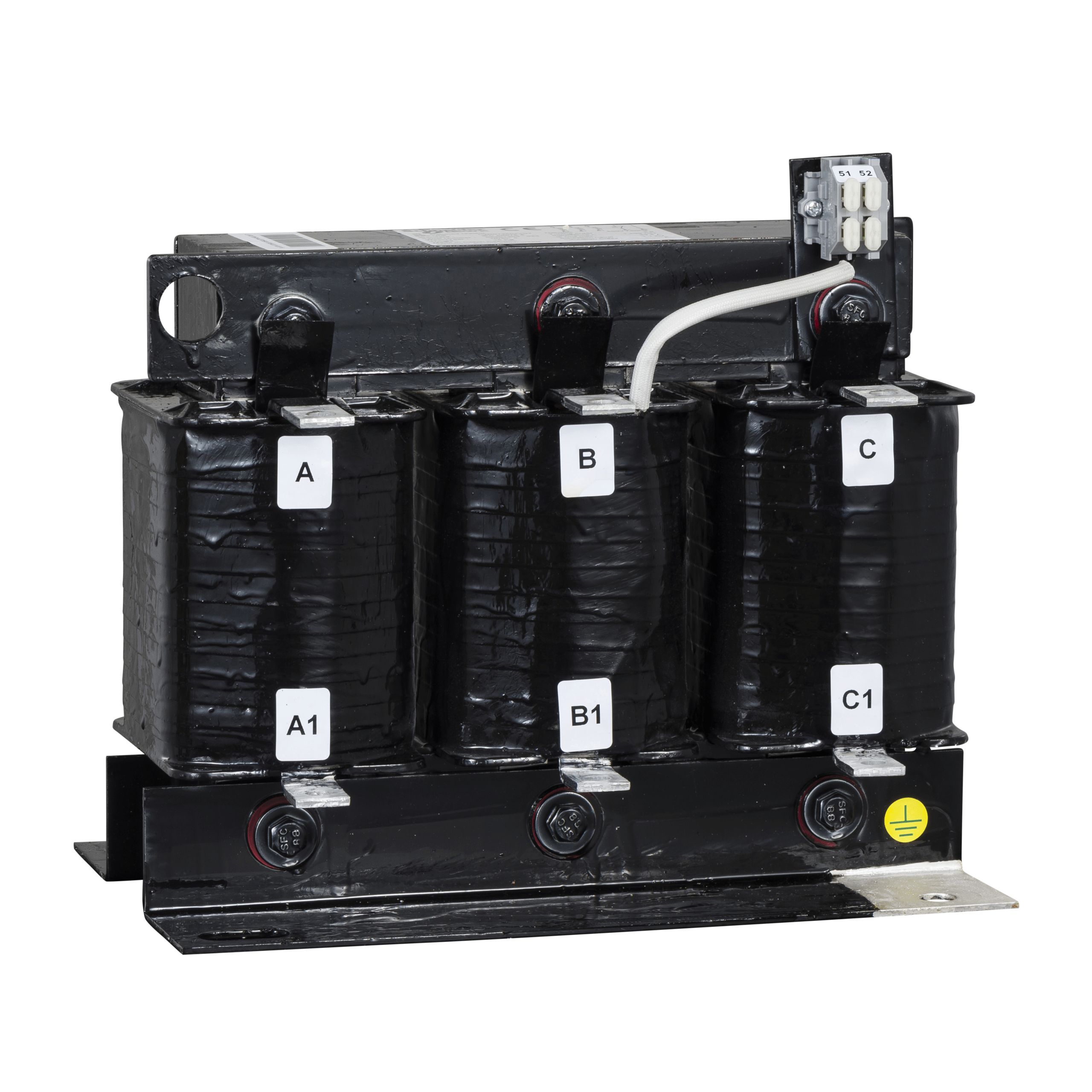

LVR07250A40TAnti Harmonic detuned reactor 25kvar 190Hz (3.8) 7% 50Hz 400VR8 933.13View product- LVR07125A40TAnti Harmonic detuned reactor 12.5kvar 190Hz (3.8) 7% 50Hz 400VR8 055.50View product
