LV848327 – circuit breaker basic frame, Masterpact MTZ2 40H1, 4000 A, 66 kA at 440 VAC 50/60 Hz, 4P, drawout, without Micrologic Schneider Electric

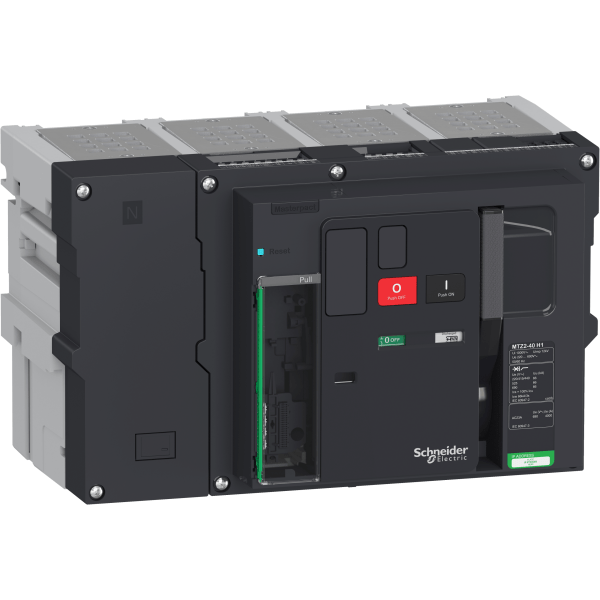

LV848327 – circuit breaker basic frame, Masterpact MTZ2 40H1, 4000 A, 66 kA at 440 VAC 50/60 Hz, 4P, drawout, without Micrologic Schneider Electric This is a basic frame for 4 poles Masterpact MTZ2 40H1 drawout circuit breaker. Masterpact MTZ is the last generation of high current air circuit breakers up to 6300 A embedding advanced digital technologies. Masterpact MTZ is designed to protect electrical systems from damage caused by overloads, short circuits and equipment ground faults. The breaking capacity (Icu) is 66kA rms at 440VAC 50/60Hz. The rated current is 4000A. The basic frame must be associated with the corresponding chassis which has also to be ordered separately. This basic frame is compatible with Micrologic X control unit which has to be ordered separately. With Micrologic X control unit, Masterpact MTZ contributes to safety and energy efficiency. It can be equipped with a variety of optional functions and accessories. The dimensions are 556mm (W) x 439mm (H) x 403mm (D). It ensures compliance with international standards (IEC 60947), UL489, CCC, EAC and marine specifications. Masterpact MTZ and Micrologic X are part of EcoStruxure architecture system. circuit breaker basic frame, Masterpact MTZ2 40H1, 4000 A, 66 kA at 440 VAC 50/60 Hz, 4P, drawout, without Micrologic LV848327 – Masterpact MTZ

LV848327 – circuit breaker basic frame, Masterpact MTZ2 40H1, 4000 A, 66 kA at 440 VAC 50/60 Hz, 4P, drawout, without Micrologic Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.

This product forms part of the Masterpact range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.

Technical Specifications

• Brand: Schneider Electric
• Series: Masterpact
• Amperage: 4000 A
• Voltage: 440 VAC
• Poles: 4P
• Breaking Capacity: 66 kA

Key Features

• Part of the Masterpact range
• Rated at 4000 A
• Suitable for 440 VAC applications
• 4P configuration
• 66 kA breaking capacity

Applications

• Industrial automation
• Commercial electrical installations
• Control and protection systems
• Infrastructure and maintenance projects
