Schneider ElectricAir Circuit breakers (ACB's)

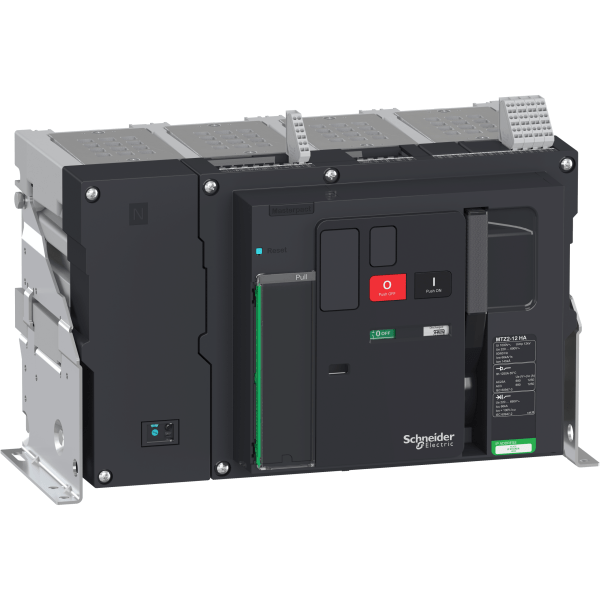

LV848040 – Basic switch disconnector Masterpact MTZ2 12 HA, 1250 A, 4 poles, fixed | Schneider Electric
Order code
List R69 570.00 Your price R47 307.60
Per unit · volume pricing available on request
excl. VAT R54 403.74 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Basic switch disconnector Masterpact MTZ2 12 HA, 1250 A, 4 poles, fixed — Schneider Electric order code LV848040. Rated current 1250 A; 4P; breaking capacity 145 kA; rated voltage 690 V AC.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV848040 — Basic switch disconnector Masterpact MTZ2 12 HA, 1250 A, 4 poles, fixed, an air circuit breaker by Schneider Electric. Listed under Air Circuit Breakers (ACBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About LV848040
It is a Masterpact MTZ2 12HA basic switch disconnector, 4 poles, 1250 A, in fixed version. Masterpact MTZ is the last generation of high current air circuit breakers and switch disconnectors up to 6300 A embedding advanced digital technologies. Masterpact MTZ is designed to protect electrical systems from damage caused by overloads, short circuits and equipment ground faults. It is designed for all standard applications. The rated current is 4000 A and the operational voltage is 690 VAC 50/60 Hz. The rated making capacity is 145 kA peak at 690V Ac within AC23A category. Masterpact MTZ front face provides reinforced insulation (Class 2) according to IEC 60664-1 standard. It complies with IEC 60947-3 standard. It is not supplied with power connections. Masterpact MTZ and Micrologic X are part of EcoStruxure architecture system.
LV848040 key specifications
Key specifications: rated current 1250 A; 4P; breaking capacity 145 kA; rated voltage 690 V AC; fixed mounting.
Ordering information for LV848040
- Order code:
LV848040 - Manufacturer: Schneider Electric
- Range: Masterpact MTZ
- GTIN / EAN: 3606480815638
- Supplied: each
- Weight: 47.27 kg
- Datasheet: manufacturer datasheet for LV848040
About the Masterpact MTZ range
Masterpact MTZ is a Schneider Electric range with 840 references listed on RMS-SE.Africa, from 5 A to 6300 A.
LV848040 — frequently asked questions
What is the rated current of LV848040?
LV848040 is rated 1250 A.
How many poles does LV848040 have?
LV848040 is a 4P device.
What is the breaking capacity of LV848040?
The catalogue states 145 kA for LV848040. Check the datasheet for the value at your system voltage.
Where is the datasheet for LV848040?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LV848040 a genuine Schneider Electric product?
Yes. LV848040 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | LV848040 – basic switch disconnector Masterpact MTZ2 12 HA, 1250 A, 4 poles, fixed Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Masterpact MTZ |
| GTIN / EAN | 3606480815638 |
| Lifecycle status | Filter products by Current |
Electrical ratings
| Number of poles | Filter products by 4P |
|---|---|
| Rated current (Iu) | Filter products by 1250 A |
| Rated voltage (Ue) | Filter products by 690 V AC |
| Operating Voltage | Filter products by 690 VAC |
| Max Break Capacity | Filter products by 145 kA |
Mechanical & mounting
| Mounting | Filter products by fixed |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | LV848040 |
| Iternational GTIN | 3606480815638 |
