Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

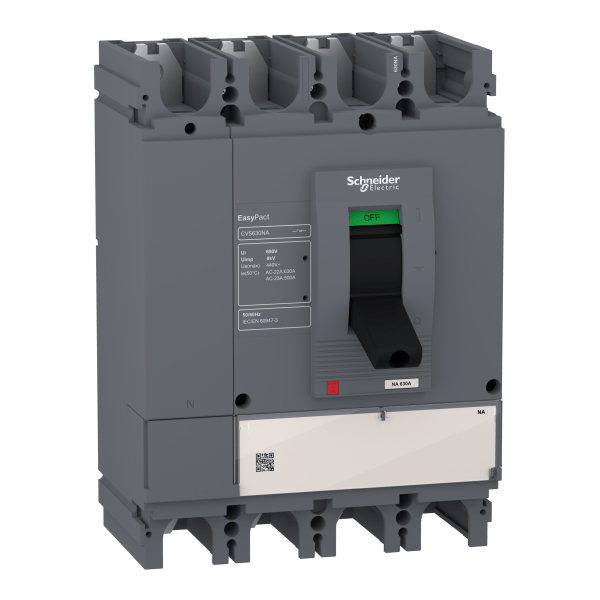

LV563401 – Switch disconnector EasyPact CVS630NA, 4 poles, 630 A AC22A, 500 A AC23A | Schneider Electric
Order code
List R10 325.22 Your price R7 021.15
Per unit · volume pricing available on request
excl. VAT R8 074.32 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Switch disconnector EasyPact CVS630NA, 4 poles, 630 A AC22A, 500 A AC23A — Schneider Electric order code LV563401. Rated current 630 A; 4P; rated voltage 415 V.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Poles4P2 options
- 3P
- 4P
Breaking capacityChoose2 options
Rated voltage415 V2 options
- 415 V
- 415 V AC
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV563401 — Switch disconnector EasyPact CVS630NA, 4 poles, 630 A AC22A, 500 A AC23A, a moulded case circuit breaker by Schneider Electric. Listed under Moulded Case Circuit Breakers (MCCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About LV563401
This EasyPact CVS630NA is a complete 4 poles switch disconnector. It is used to control and isolate electrical distribution circuits and it requires an upstream protection. The operational current is 630A at 415VAC 50/60Hz for AC22A and 500A at 514VAC 50/60Hz for AC23A utilisation categories. The operational voltage is 440VAC 50/60Hz. It comes with a variety of optional functions and accessories common with EasyPact CVS circuit breakers. The dimensions for this 4 poles version are 185mm x 255mm x 110mm. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.
LV563401 key specifications
Key specifications: rated current 630 A; 4P; rated voltage 415 V.
Ordering information for LV563401
- Order code:
LV563401 - Manufacturer: Schneider Electric (formerly Other supplier)
- Range: EasyPact CVS
- GTIN / EAN: 3606480257872
- Supplied: each
- Weight: 7.099 kg
- ETIM class: EC000216
- Datasheet: manufacturer datasheet for LV563401
About the EasyPact CVS range
EasyPact CVS is a Schneider Electric range with 25 references listed on RMS-SE.Africa, from 100 A to 630 A.
LV563401 — frequently asked questions
What is the rated current of LV563401?
LV563401 is rated 630 A.
How many poles does LV563401 have?
LV563401 is a 4P device.
Where is the datasheet for LV563401?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LV563401 a genuine Schneider Electric product?
Yes. LV563401 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by LV563401 – switch disconnector EasyPact CVS630NA, 4 poles, 630 A AC22A, 500 A AC23A Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by EasyPact CVS |
| GTIN / EAN | 3606480257872 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000216 |
Electrical ratings
| Number of poles | Filter products by 4P |
|---|---|
| Rated current (Iu) | Filter products by 630 A |
| Rated voltage (Ue) | Filter products by 415 V |
| Operating Voltage | Filter products by 415VAC |
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Search products for LV563401 |
| Iternational GTIN | 3606480257872 |
