Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

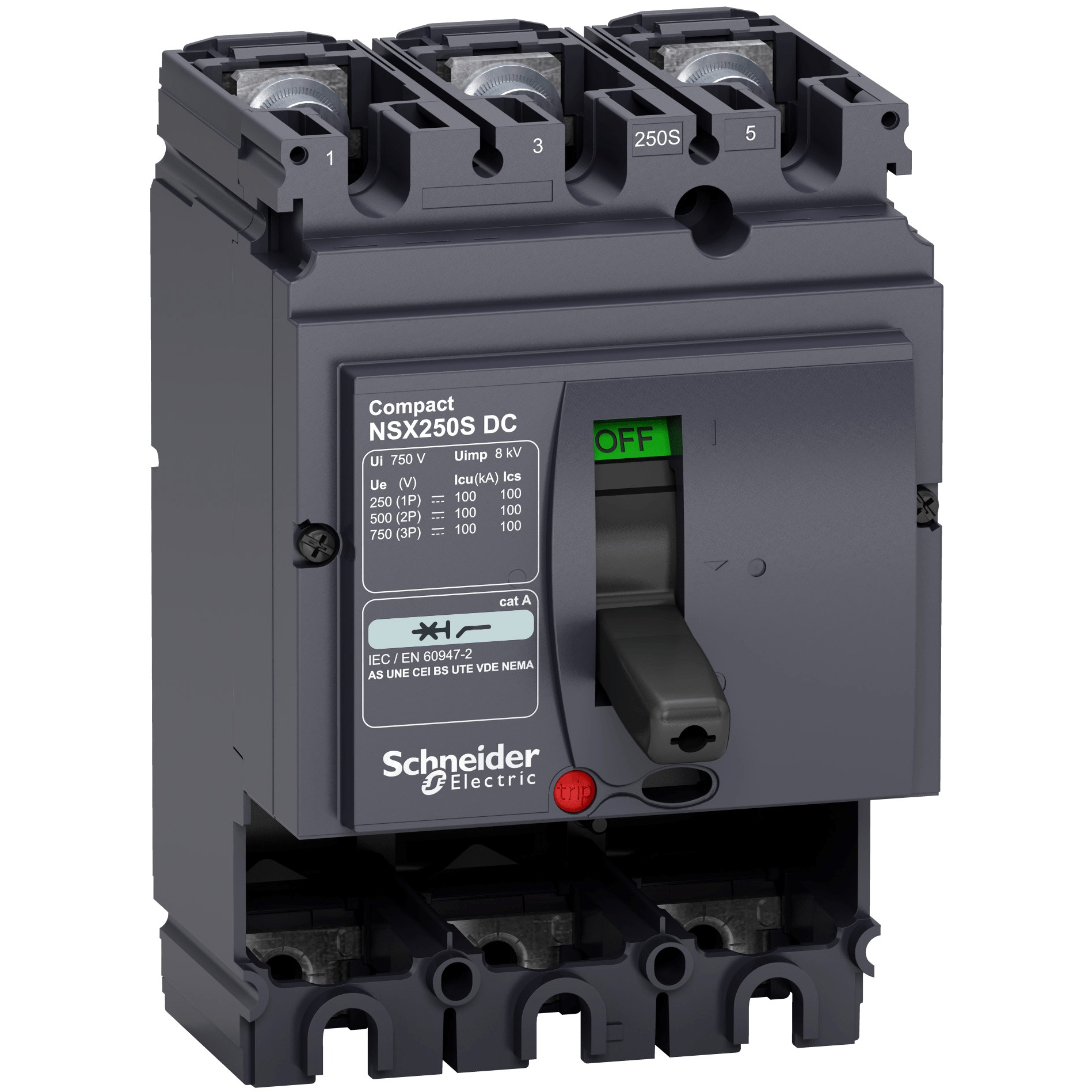

LV438218 – circuit breaker basic frame, ComPact NSX250S DC, 100 kA at 750 VDC, 250 A, without trip unit, 3 poles Schneider Electric
Order code
Select a variant in this series
- 600 V DC
- 750 V DC
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
R3 430.71
Excluding VAT · per unit · volume pricing available on request
End of commercialisation announced. Replaced by ComPacT NSX DC / DC PV (new generation). See ComPacT NSX DC / DC PV products · Schneider Electric substitution guide (opens in a new tab) Ask us to confirm remaining stock or to quote the replacement.
Listed in stock — availability is re-confirmed on every order
Circuit breaker basic frame, ComPact NSX250S DC, 100 kA at 750 VDC, 250 A, without trip unit, 3 poles — Schneider Electric order code LV438218. Rated current 250 A; 3P; breaking capacity 100 kA; rated voltage 750 V DC.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV438218 — Circuit breaker basic frame, ComPact NSX250S DC, 100 kA at 750 VDC, 250 A, without trip unit, 3 poles from the Schneider Electric Compact NSX DC & DC PV range.
It is a 3 poles basic frame for Compact NSX 250S DC circuit breaker, designed to optimize space and breaking capacity. It's an optimal choice for applications using DC voltages. The breaking capacity (Icu) is 100kA rms at 750VDC. The rated current is 250A and the operational voltage is 750VDC. This basic frame comes without trip unit (to be ordered separately) and can be equipped with a variety of optional functions and accessories. The dimensions are 161x105x86 mm. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.
Key specifications: rated current 250 A; 3P; breaking capacity 100 kA; rated voltage 750 V DC.
Availability notice: Schneider Electric has announced the end of commercialisation of this reference (announced 2021/12/15, last orders 2023/12/31). Stock may still be available; ask us to confirm, or to quote the current replacement.
Ordering information
- Order code:
LV438218 - Manufacturer: Schneider Electric
- Range: Compact NSX DC & DC PV
- GTIN / EAN: 3606480073137
- Supplied: each
- Weight: 1.592 kg
- ETIM class: EC000228
- Datasheet: manufacturer datasheet for LV438218
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 250 A |
| Rated voltage (Ue) | Filter products by 750 V DC |
| Operating Voltage | Filter products by 750 VDC |
| Max Break Capacity | Filter products by 100 kA |
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by LV438218 |
| Iternational GTIN | Filter products by 3606480073137 |
| Mount Type | Filter products by Plug-in |
