Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

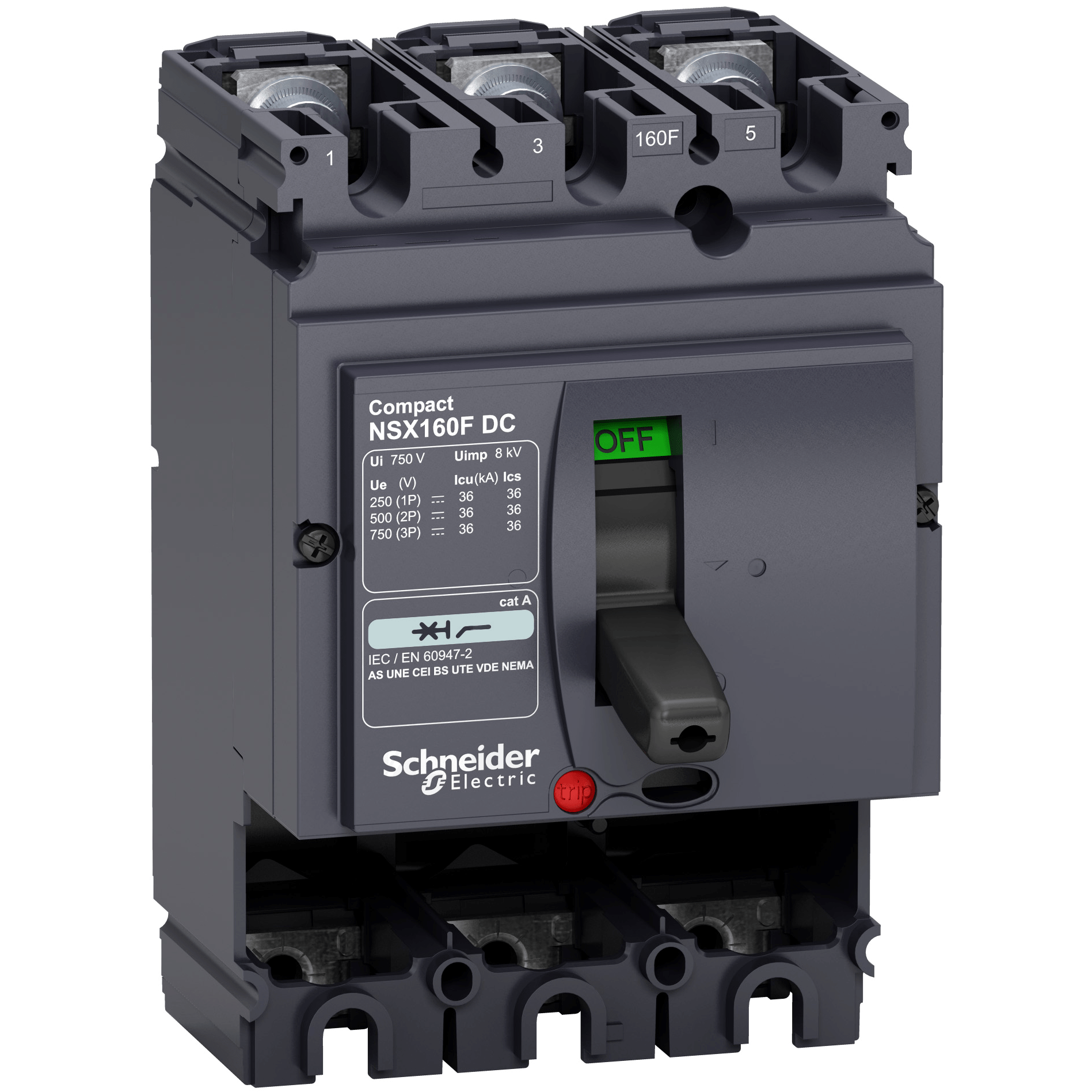

LV438103 – circuit breaker basic frame, ComPact NSX160F DC, 36 kA at 750 VDC, 160 A, without trip unit, 3 poles Schneider Electric
Order code
R2 863.21
Excluding VAT · per unit · volume pricing available on request
End of commercialisation announced. Ask us to confirm remaining stock or to quote the current replacement.
Listed in stock — availability is re-confirmed on every order
Circuit breaker basic frame, ComPact NSX160F DC, 36 kA at 750 VDC, 160 A, without trip unit, 3 poles — Schneider Electric order code LV438103. Rated current 160 A; 3P; breaking capacity 36 kA; rated voltage 750 V DC.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV438103 — Circuit breaker basic frame, ComPact NSX160F DC, 36 kA at 750 VDC, 160 A, without trip unit, 3 poles from the Schneider Electric Compact NSX DC & DC PV range.
It is a 3 poles basic frame for Compact NSX 160F DC circuit breaker, designed to optimize space and breaking capacity. It's an optimal choice for applications using DC voltages. The breaking capacity (Icu) is 36kA rms at 750VDC. The rated current is 160A and the operational voltage is 750VDC. This basic frame comes without trip unit (to be ordered separately) and can be equipped with a variety of optional functions and accessories. The dimensions are 161x105x86 mm. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.
Key specifications: rated current 160 A; 3P; breaking capacity 36 kA; rated voltage 750 V DC.
Availability notice: Schneider Electric has announced the end of commercialisation of this reference (announced 2021/12/15, last orders 2023/12/31). Stock may still be available; ask us to confirm, or to quote the current replacement.
Ordering information
- Order code:
LV438103 - Manufacturer: Schneider Electric
- Range: Compact NSX DC & DC PV
- GTIN / EAN: 3606480073038
- Supplied: each
- Weight: 1.497 kg
- ETIM class: EC000228
- Datasheet: manufacturer datasheet for LV438103
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 160 A |
| Rated voltage (Ue) | Filter products by 750 V DC |
| Rated operational voltage | Filter products by 750 V DC |
| Operating Voltage | Filter products by 750 VDC |
| Max Break Capacity | Filter products by 36 kA |
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by LV438103 |
| Iternational GTIN | Filter products by 3606480073038 |
| Mount Type | Filter products by Plug-in |
