Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

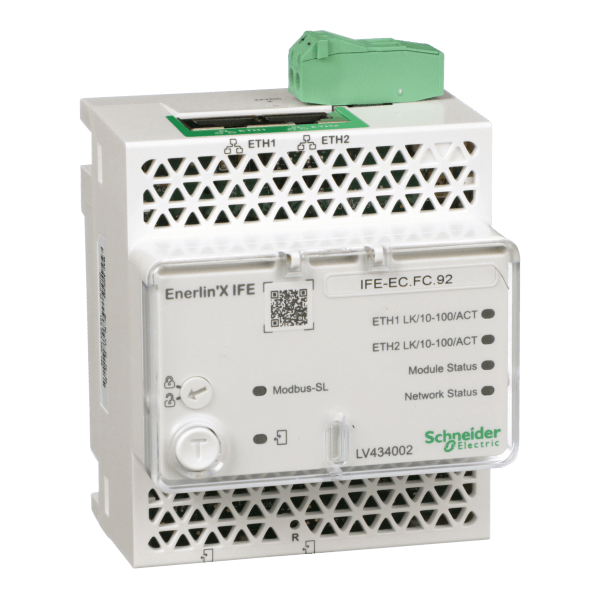

LV434002 – IFE Ethernet switchboard server, Enerlin’X | Square D
Order code
List R10 782.00 Your price R7 331.76
Per unit · volume pricing available on request
excl. VAT R8 431.52 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
IFE Ethernet switchboard server, Enerlin’X — Square D order code LV434002. Rated voltage 24 V; DIN rail mounting.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV434002 — IFE Ethernet switchboard server, Enerlin'X, a moulded case circuit breaker from the Square D Enerlin'X IF range. Listed under Moulded Case Circuit Breakers (MCCBs) at RMS-SE.Africa.
About LV434002
This IFE switchboard server is an Ethernet interface module, and it is part of EnerlinX communication system. It provides an Ethernet access to one or several Masterpact, Compact or PowerPact circuit breakers. It incorporates a Modbus gateway. The data flow is 10/100 Mbps for a simple daisy chain connection. It is equipped on the top with one 24VDC screw clamp terminal block and 2xRJ45 sockets for Ethernet network connection. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFE switchboard server is a DIN rail mounting device and its dimensions are 72mm x 105mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFE switchboard server is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The IFE switchboard server firmware can be updated using EcoStruxure Power Commission software.
LV434002 key specifications
Key specifications: rated voltage 24 V; DIN rail mounting.
Ordering information for LV434002
- Order code:
LV434002 - Manufacturer: Square D
- Range: Enerlin'X IF
- GTIN / EAN: 3606481283146
- Supplied: each
- Weight: 0.188 kg
- ETIM class: EC001604
- Datasheet: manufacturer datasheet for LV434002
About the Enerlin'X IF range
Enerlin'X IF is a Square D range with 6 references listed on RMS-SE.Africa.
LV434002 — frequently asked questions
Where is the datasheet for LV434002?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Square D publishes them.
Is LV434002 a genuine Square D product?
Yes. LV434002 is supplied through the manufacturer’s authorised channel with the standard Square D warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | LV434002 – IFE Ethernet switchboard server, Enerlin'X Square D |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Enerlin'X IF |
| GTIN / EAN | 3606481283146 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001604 |
Electrical ratings
| Rated voltage (Ue) | Filter products by 24 V |
|---|---|
| Operating Voltage | Filter products by 24VDC |
Mechanical & mounting
| Mounting | Filter products by DIN rail |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | LV434002 |
| Iternational GTIN | 3606481283146 |
| Connector Type | Filter products by RJ45 |
