Schneider ElectricMoulded Case Circuit Breakers (MCCBs)
LV432603T – Extended rotary handle, ComPacT NSX 400/630, black handle, telescopic shaft 272 to 600 mm for withdrawable device, IP55 | Schneider Electric
Order code
List R3 808.00 Your price R2 589.44
Per unit · volume pricing available on request
excl. VAT R2 977.86 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Extended rotary handle, ComPacT NSX 400/630, black handle, telescopic shaft 272 to 600 mm for withdrawable device, IP55 — Schneider Electric order code LV432603T. IP55.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV432603T — Extended rotary handle, ComPacT NSX 400/630, black handle, telescopic shaft 272 to 600 mm for withdrawable device, IP55, a moulded case circuit breaker from the Schneider Electric ComPacT NSX (2021) range. Listed under Moulded Case Circuit Breakers (MCCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About LV432603T

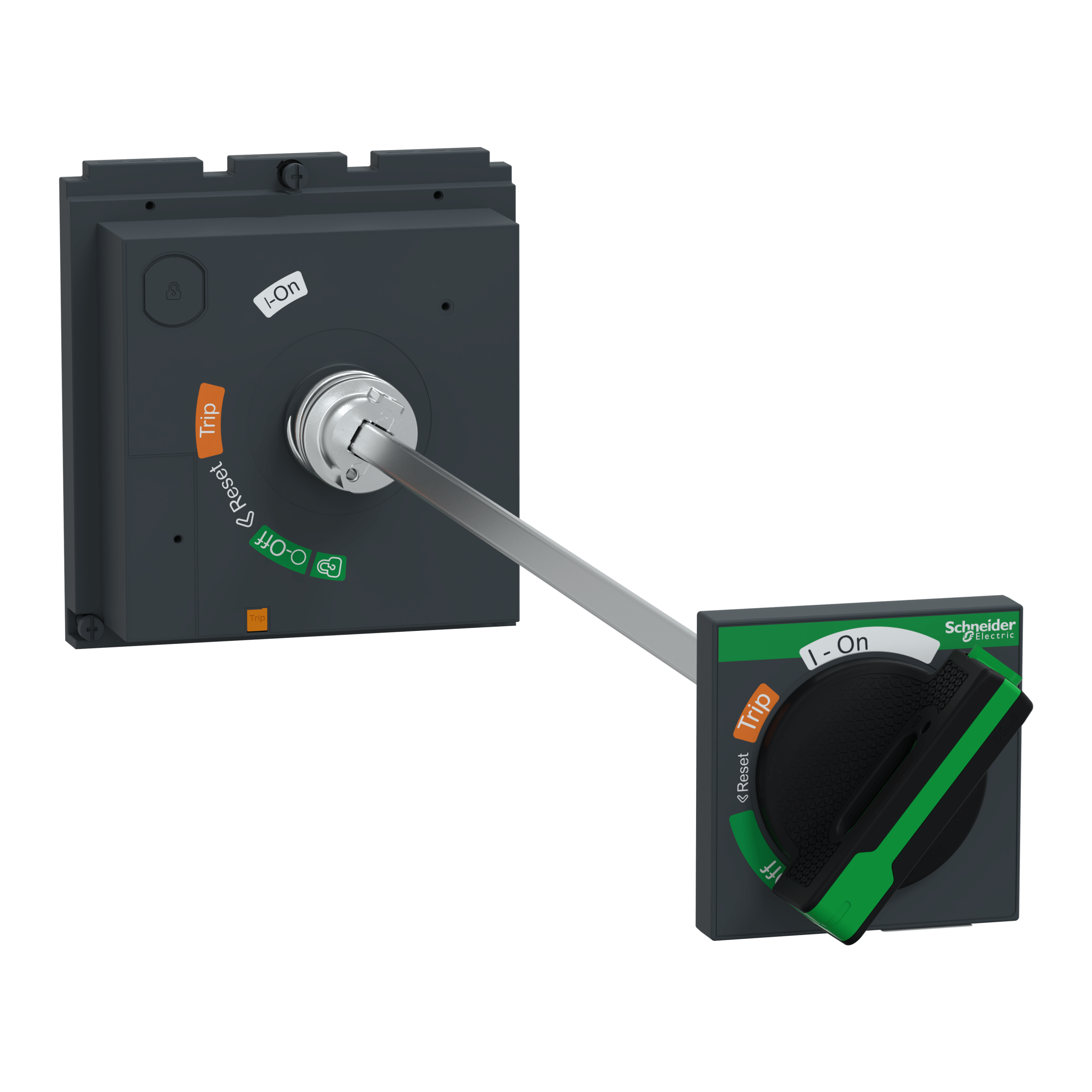

It is an extended rotary handle with a telescopic handle for ComPacT NSX 400/630 and PowerPact Multistandard L frames devices. It is suitable for isolation and it is used for standard applications for withdrawable devices. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. This telescopic version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 248mm to 600mm. The degrees of protection are IP55 and IK08. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
LV432603T key specifications
Key specifications: IP55.
Ordering information for LV432603T
- Order code:
LV432603T - Manufacturer: Schneider Electric
- Range: ComPacT NSX (2021)
- GTIN / EAN: 3606482004146
- Supplied: each
- Weight: 0.956 kg
- ETIM class: EC000230
- Datasheet: manufacturer datasheet for LV432603T
About the ComPacT NSX (2021) range
ComPacT NSX (2021) is a Schneider Electric range with 98 references listed on RMS-SE.Africa, from 250 A to 630 A.
LV432603T — frequently asked questions
Where is the datasheet for LV432603T?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LV432603T a genuine Schneider Electric product?
Yes. LV432603T is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | LV432603T – extended rotary handle, ComPacT NSX 400/630, black handle, telescopic shaft 272 to 600 mm for withdrawable device, IP55 Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by ComPacT NSX |
| GTIN / EAN | 3606482004146 |
| Range | Filter products by ComPacT NSX (2021) |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000230 |
Environment & protection
| Degree of protection (IP) | Filter products by IP55 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | LV432603T |
| Iternational GTIN | 3606482004146 |
