Schneider ElectricMoulded Case Circuit Breakers (MCCBs)
LV432603 – extended rotary handle, ComPact NSX 400/630, black handle, telescopic shaft 272 to 600 mm for withdrawable device, IP55 Schneider Electric
Order code
R4 180.88
Excluding VAT · per unit · volume pricing available on request
End of commercialisation announced. Replaced by ComPacT NSX (new generation). See ComPacT NSX products · Schneider Electric substitution guide (opens in a new tab) Ask us to confirm remaining stock or to quote the replacement.
Listed in stock — availability is re-confirmed on every order
Extended rotary handle, ComPact NSX 400/630, black handle, telescopic shaft 272 to 600 mm for withdrawable device, IP55 — Schneider Electric order code LV432603. IP55.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV432603 — Extended rotary handle, ComPact NSX 400/630, black handle, telescopic shaft 272 to 600 mm for withdrawable device, IP55, a moulded case circuit breaker from the Schneider Electric Compact NSX <630 range.

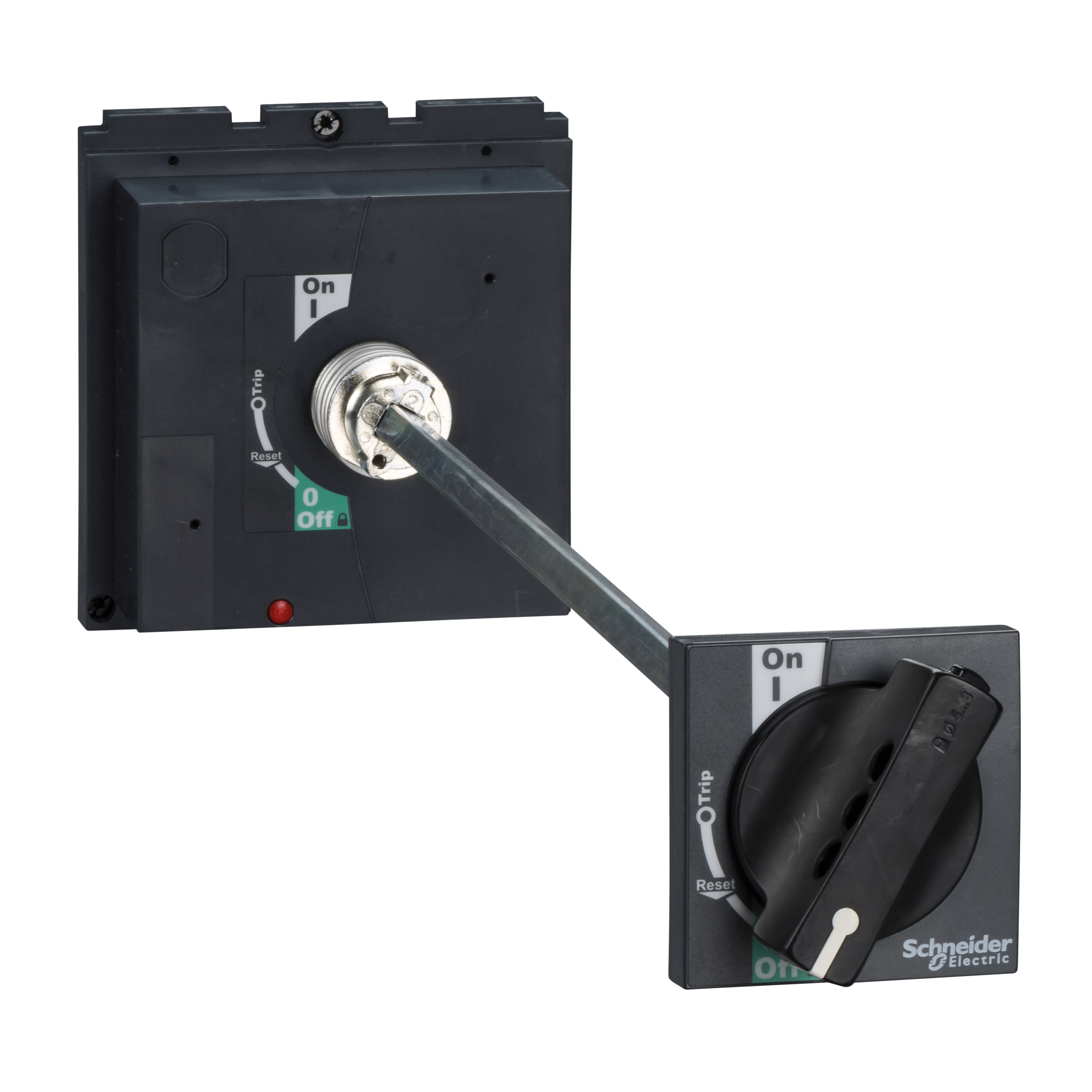

It is an extended rotary handle with a telescopic handle for Compact NSX 400/630 and PowerPact Multistandard L frames devices. It is suitable for isolation and it is used for standard applications for withdrawable devices. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. This telescopic version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 248mm to 600mm. The degrees of protection are IP55 and IK08. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
Key specifications: IP55.
Availability notice: Schneider Electric has announced the end of commercialisation of this reference (announced 2022/09/06, last orders 2023/06/30). Stock may still be available; ask us to confirm, or to quote the current replacement.
Ordering information
- Order code:
LV432603 - Manufacturer: Schneider Electric
- Range: Compact NSX <630
- GTIN / EAN: 3606480020377
- Supplied: each
- Weight: 0.989 kg
- ETIM class: EC000230
- Datasheet: manufacturer datasheet for LV432603
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Environment & protection
| Degree of protection (IP) | Filter products by IP55 |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Filter products by LV432603 |
| Iternational GTIN | Filter products by 3606480020377 |
