Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

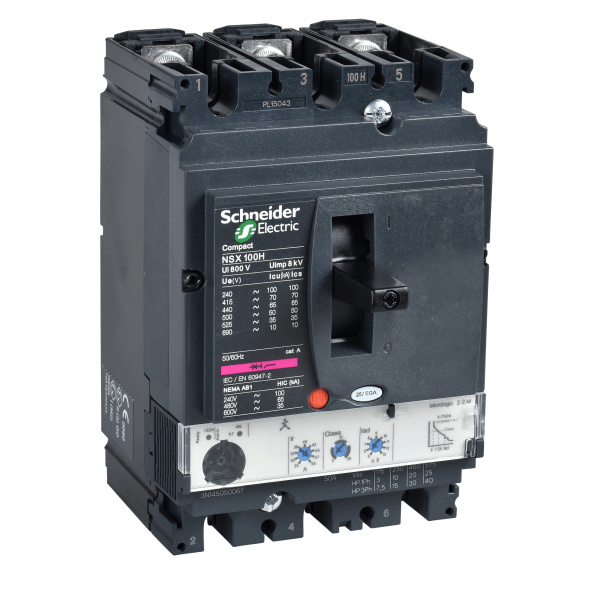

LV429837 – Circuit breaker ComPact NSX100H, 70 kA at 415 VAC, MicroLogic 2.2 M trip unit 50 A, 3 poles 3d | Schneider Electric
Order code
List R7 536.03 Your price R5 124.50
Per unit · volume pricing available on request
excl. VAT R5 893.18 incl.
Discontinued — remaining stock confirmed on quote
Circuit breaker ComPact NSX100H, 70 kA at 415 VAC, MicroLogic 2.2 M trip unit 50 A, 3 poles 3d — Schneider Electric order code LV429837. Rated current 50 A; 3P 3d; breaking capacity 70 kA at 415 V AC; rated voltage 415 V AC.
Discontinued — remaining stock confirmed on quote
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV429837 — Circuit breaker ComPact NSX100H, 70 kA at 415 VAC, MicroLogic 2.2 M trip unit 50 A, 3 poles 3d from the Schneider Electric Compact NSX <630 range. Listed under Moulded Case Circuit Breakers (MCCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About LV429837
This Compact NSX100H is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic Micrologic 2.2 M trip unit, with 50A rating. Micrologic 2.2 M trip unit provides adjustable long time and short time protections, and fixed instantaneous protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX100H is part of Schneider Electric EcoStruxure Power architecture.
LV429837 key specifications
Key specifications: rated current 50 A; 3P 3d; breaking capacity 70 kA at 415 V AC; rated voltage 415 V AC.
Availability and replacement
Availability notice: Schneider Electric has announced the end of commercialisation of this reference (announced 2021/12/15, last orders 2023/12/31). Stock may still be available; ask us to confirm, or to quote the current replacement.
Schneider Electric names ComPacT NSX (new generation) as the successor to the Compact NSX <630 range. Schneider substitution guide: same frame sizes. Ask the sales desk to confirm the exact replacement reference before ordering.
Schneider Electric substitution guide (manufacturer document)
Ordering information for LV429837
- Order code:
LV429837 - Manufacturer: Schneider Electric
- Range: Compact NSX <630
- GTIN / EAN: 3606480007651
- Supplied: each
- Weight: 2.05 kg
- ETIM class: EC000074
- Datasheet: manufacturer datasheet for LV429837
About the Compact NSX <630 range
Compact NSX <630 is a Schneider Electric range with 597 references listed on RMS-SE.Africa, from 2.5 A to 630 A. Schneider Electric has announced ComPacT NSX (new generation) as its successor.
LV429837 — frequently asked questions
What is the rated current of LV429837?
LV429837 is rated 50 A.
How many poles does LV429837 have?
LV429837 is a 3P 3d device.
What is the breaking capacity of LV429837?
The catalogue states 70 kA at 415 V AC for LV429837. Check the datasheet for the value at your system voltage.
Is LV429837 discontinued, and what replaces it?
Yes. Schneider Electric has announced the end of commercialisation of LV429837 (last orders 2023/12/31). The named successor is ComPacT NSX (new generation); the sales desk confirms the exact replacement reference and remaining stock.
Where is the datasheet for LV429837?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LV429837 a genuine Schneider Electric product?
Yes. LV429837 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | LV429837 – circuit breaker ComPact NSX100H, 70 kA at 415 VAC, MicroLogic 2.2 M trip unit 50 A, 3 poles 3d Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Compact NSX <630 |
| GTIN / EAN | 3606480007651 |
| Lifecycle status | Filter products by Discontinued |
| ETIM class | Filter products by EC000074 |
Electrical ratings
| Number of poles | Filter products by 3P 3d |
|---|---|
| Rated current (Iu) | Filter products by 50 A |
| Rated voltage (Ue) | Filter products by 415 V AC |
| Operating Voltage | Filter products by 415 VAC |
| Max Break Capacity | Filter products by 70 kA at 415 V AC |
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Discontinued on | Filter products by 2023-11-20 |
|---|---|
| Breaking capacity icu | Filter products by 70 kA at 415 V |
| Trip unit | Filter products by MicroLogic 2.2 |
| Trip unit rating | Filter products by 50 A |
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
| SKU/Code/Partnumber | Search products for LV429837 |
| Iternational GTIN | 3606480007651 |
| Mount Type | Filter products by Plug-in |
